PLC Mini Steel Tube Splitter with SC/UPC Connectors: Compact Precision for Optical Networks

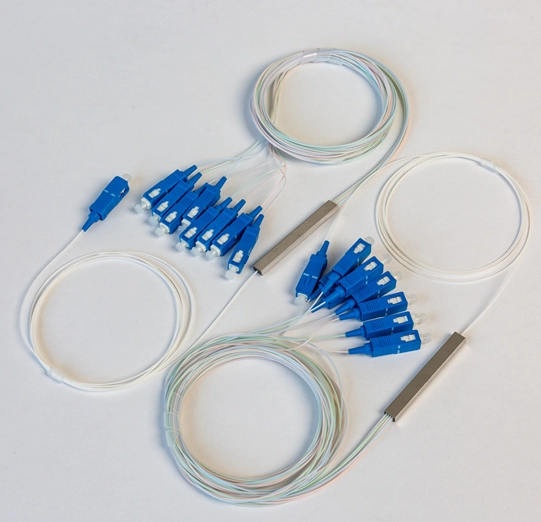

In the dynamic landscape of fiber-optic infrastructure, the PLC Mini Steel Tube Splitter with SC/UPC Connectors emerges as a compact, robust solution for signal distribution. Designed for efficiency and durability, this splitter combines planar lightwave circuit (PLC) technology with a miniature steel tube housing and SC/UPC connectors, catering to space-constrained environments while delivering reliable performance.

1. Product Overview: Design and Components

• Compact      Housing: Encased in a mini steel tube (typically      ≤ 10mm diameter), this splitter offers exceptional durability and space      efficiency. The steel housing protects the PLC chip from mechanical stress      and environmental factors (e.g., temperature fluctuations, vibrations),      making it ideal for harsh or densely packed installations (e.g., fiber      distribution boxes, data center patch panels).

• PLC Chip: At its      core, a silica-based planar waveguide chip splits incoming light into      multiple paths (e.g., 1×2, 1×4, up to 1×32), ensuring uniform      power distribution (±0.5dB tolerance) across all outputs.      This chip, fabricated via semiconductor lithography, supports a broad      wavelength range (1260–1650nm), compatible with data (1310nm, 1550nm) and      CATV (1550nm) signals.

• SC/UPC      Connectors: Equipped with SC/UPC (Ultra      Physical Contact) connectors (noted for their blue color,      distinguishing them from green APC connectors), these splitters minimize      back reflection (return loss ≥ 50dB), making them suitable for Ethernet,      PON (GPON/EPON), and enterprise network applications where      cost-effective, low-loss connectivity is paramount. UPC polish offers a      balance between performance and affordability, unlike APC (used in      CATV/FTTH for stricter back reflection requirements).

2. Technical Features and Performance

• Splitting      Ratios: Available in 1×N configurations (N=2,4,8,16,32),      scaling to meet network density needs (e.g., 1×8 for mid-sized FTTH      cabinets, 1×32 for large-scale PON deployments).
• Insertion      Loss: Typically ≤ 0.3dB for 1×2 splitters, increasing      marginally with port count (e.g., ~1.8dB for 1×8), ensuring minimal signal      degradation.
• Polarization      Dependent Loss (PDL): ≤ 0.1dB, guaranteeing consistent      performance across all polarization states.
• Temperature      Stability: Operates flawlessly from -40°C to +85°C,      maintaining specifications in extreme environments (e.g., outdoor      cabinets, industrial settings).

3. Applications: Where Compactness Meets Reliability

·

FTTH and PON Networks:

·

ST-STyle-type: square;">
• Ideal       for fiber distribution hubs (FDHs) and optical       network terminals (ONTs), where space is limited. The mini steel       tube design fits seamlessly into 1U/2U panels, supporting high-density       splits (e.g., 1×32 in a compact form factor).
• SC/UPC       connectors simplify integration with standard PON equipment (e.g., OLTs,       ONUs), ensuring plug-and-play deployment in GPON/EPON architectures.

·

Data Centers and Enterprise Networks:

·

• In 10G/40G       Ethernet backbones, these splitters distribute test signals or       monitor traffic in fiber-optic links. Their low loss and UPC polish make       them cost-effective for intra-data center connectivity, where APC’s       stricter back reflection is unnecessary.
• Campus       Networks: Deployed in fiber-to-the-desk (FTTD)       setups, splitting signals to multiple offices or labs, leveraging the       splitter’s compactness for wall-mounted enclosures.

·

Industrial and Outdoor Deployments:

·

• The       steel tube housing withstands mechanical shocks and environmental rigors       (e.g., humidity, dust), making it suitable for 5G fronthaul/backhaul in       outdoor cabinets or industrial IoT (IIoT) networks, where reliability in       harsh conditions is critical.

4. Advantages Over Conventional Splitters

• Space      Efficiency: Mini steel tube design is 30–50%      SMaller than traditional PLC splitters, enabling higher port      density in distribution panels (e.g., 1×32 splitters in a 1U rack unit).
• Durability: Steel      housing offers superior protection against physical damage, outlasting      plastic-housed splitters in rugged environments.
• Cost-Effectiveness: SC/UPC      connectors (vs. APC) reduce material costs, making these splitters ideal      for volume deployments in data-centric networks (e.g., enterprise      Ethernet, non-CATV PONs).
• Ease of      Installation: Pre-terminated SC/UPC connectors simplify      splicing/termination, cutting deployment time in fiber-optic projects.

5. Installation and Best Practices

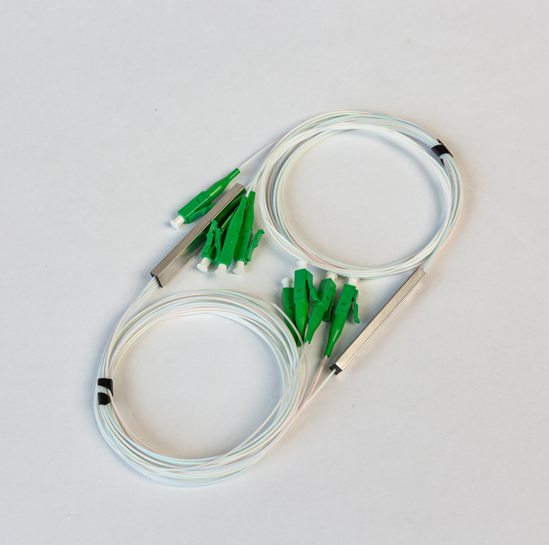

• Fiber      Management: Ensure a minimum bend radius of 30mm for      G.657A fibers (common in FTTH) to avoid macro-bending loss. The coiled      fibers (as seen in the image, though adapted for SC/UPC) are pre-managed      for optimal routing.
• Connector      Polarity: SC/UPC connectors (blue) are easily      distinguishable from APC (green), preventing misconnections in mixed      environments (e.g., coexisting with CATV APC splitters in FTTx networks).
• Testing: Verify      insertion loss, return loss, and splitting uniformity using an optical      power meter (OPM) and light source, ensuring compliance with ITU-T      G.671/G.672 standards.

6. Future-Proofing with Mini PLC Splitters

As networks evolve toward 10G PON, 50G PON, and beyond, the mini steel tube splitter’s scalability (up to 1×64 in future iterations) and wavelength flexibility (supporting next-gen WDM-PON) position it as a future-ready component. Its compact design also aligns with the trend toward edge computing and small-cell 5G, where space-efficient, durable optical components are essential.

Conclusion: The Compact Powerhouse of Optical Distribution

The PLC Mini Steel Tube Splitter with SC/UPC Connectors is a testament to engineering ingenuity—marrying compactness, durability, and performance. Whether in a bustling data center, a suburban ftth network, or an industrial IoT setup, it delivers reliable signal splitting with minimal footprint. By prioritizing space efficiency and cost-effective connectivity (via SC/UPC), this splitter bridges the gap between technical excellence and real-world deployment needs, solidifying its role as a cornerstone of modern optical infrastructure.

.
