Location： OM3 Fiber Optic Cable Comprehensive Guide: Specifications, Performance, and Differences from OM4
Update Time：2025-11-27
Traffic：
When building high-speed networks, especially 10GbE networks, OM3 fiber optic cable is often the most cost-effective and preferred solution. It has not only become the "main force" of the modern data center, but also a key component in the upgrade of the enterprise local area network.
This article will provide you with an in-depth understanding of the core parameters and transmission distance limitations of OM3 fiber, as well as the differences between it and OM4 fiber, to help you make informed wiring decisions.
What is OM3 fiber optic cable?
OM3 fiber is a laser-optimized multimode fiber (LOMMF).
Unlike traditional OM1 and OM2 fibers that rely on LED light sources for transmission, OM3 fibers are specifically designed for VCSEL (Vertical Cavity Surface Emitting Laser) light sources. This design allows them to transmit higher bandwidth data with very low attenuation.
Quickly identify features:

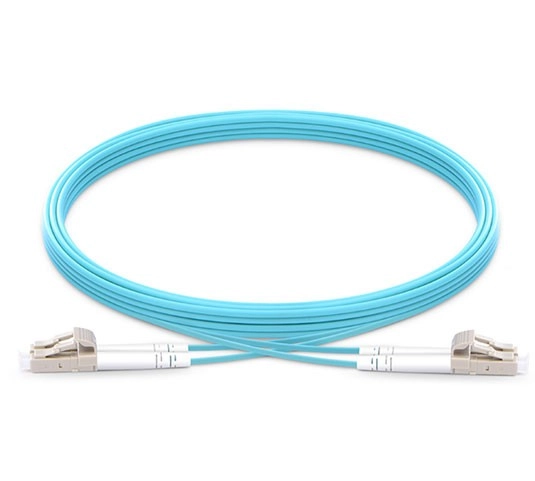

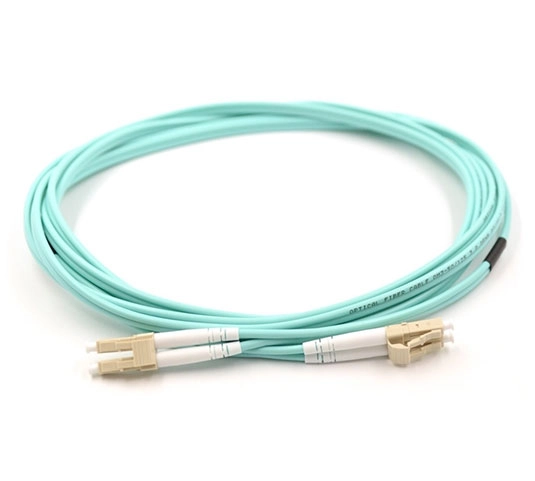

- Color standard: usually aqua green.
- Core diameter: 50/125 µm (50 µm core, 125 µm cladding).
- ISO standard: Compliant with ISO/IEC 11801 standard
Core performance and transmission distance of OM3 fiber
Understanding the performance limits of OM3 is critical for network planning. OM3 was originally designed to meet the requirements of 10 Gigabit Ethernet (10GbE), but it also has the capability to support 40G and 100G.
1. Transmission speed and distance comparison table
| Ethernet Standard | Bandwidth Requirements | OM3 Maximum Transmission Distance | Comments |
| 1Gb (Fast Ethernet) | 1 gigabit | 1000 meters | Long-distance low-speed applications |
| 10Gb(10GbE) | 10 gigabits | 300 meters (984 feet) | The most common application scenarios |
| 40Gb(40GbE) | 40 gigabits | 100 meters | Requires an MTP/MPO connector. |
| 100Gb(100GbE) | 100 Gigabit | 70-100 meters | Requires an MTP/MPO connector. |
Key stats: If your backbone network is within 300 meters and you need 10Gbps speeds, then OM3 is the most affordable option.
OM3 vs. OM4: Which one should you choose?

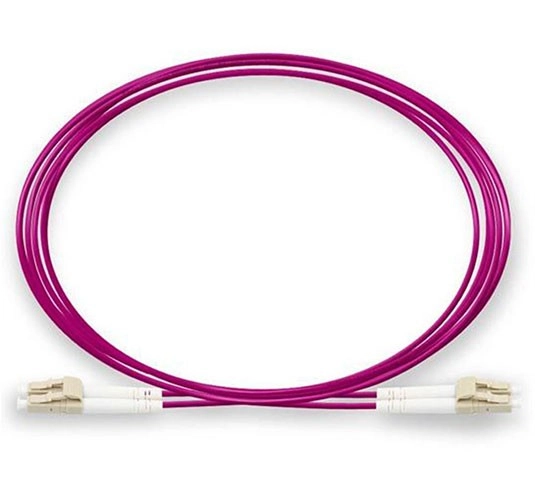

OM4 is an upgraded version of OM3. Both typically use light green (sometimes purple for OM4), and both use 50/125 µm fiber cores.
Key differences: bandwidth and distance
| Features | OM3 Fiber Optic Cable | OM4 Fiber Optic Cable |
| Effective Modular Bandwidth (EMB) | 2000 MHz * km | 4700 MHz * km |
| 10Gb transmission distance | 300 meters | 550 meters |
| 40Gb/100Gb transmission distance | 100 meters | 150 meters |
| cost | Lower price (cost-effective) | slightly higher |
| applicable scenario | Most mid-sized data centers and enterprise building cabling | Large data centers and ultra-long-distance backbone networks |
To sum up:
- If you only need connections between server racks or within the same floor (< 300 meters), OM3 is more than sufficient and more cost-effective.
- If you need to cover a larger area or have a connection distance of more than 300 meters, you must upgrade to OM4.
Why is OM3 still the mainstream choice?
Although OM4 and OM5 perform better, OM3 still holds a considerable market share for the following reasons:
- Cost-effectiveness: OM3 is less expensive to manufacture than OM4. For most cabling environments up to 300 meters in length, purchasing OM4 is redundant.
- Backward compatibility: OM3 fiber is fully compatible with existing legacy devices and can be used in conjunction with OM4 fiber (although transmission distances are limited by lower-performance fibers).
- Mature technology: With LC or SC connectors and SFP + modules, the OM3 ecosystem is very mature and stable.
Buying advice: How to choose a high-quality OM3 fiber optic cable?
When purchasing OM3 fiber optic cable, please pay attention to the following points to ensure search engine friendliness and network stability:
- Jacket Rating:
- PVC/OFNR: Suitable for vertical wiring (e.g. between floors).
- LSZH (Low Smoke and Halogen Free): Low smoke and toxicity from combustion, making it suitable for use in densely populated enclosed areas such as data centers and office areas.
- OFNP (ventilation ducts): Maximum fire rating, suitable for installation in ventilation ducts or ceilings.
- Connector Type: Verify whether the device interface is LC (small square head, most commonly used), SC (large head), or MTP/MPO (for high-density 40G/100G).
- Anti-bending: Look for fiber optic cables labeled BI-OM3. These cables have less signal attenuation when bent in tight spaces, making them ideal for rack cabling.
summary
The OM3 fibre optic cable is the cornerstone of modern high-speed networks. It has a distinctive turquoise appearance and supports 10Gb transmission over a 300-metre range, perfectly balancing performance and budget. For most enterprise network upgrades and data centre interconnects, OM3 remains the undisputed "king of value for money".
