Testing Fibre Optic Cables

Having explored the fundamentals of fiber optic cables—including their structure and remarkable tranSMission speeds—we now turn to the crucial process of testing these cables.

Proper testing ensures consistent, high-performance data transfer, making it a vital practice for maintaining network reliability.

Here’s the step-by-step procedure for testing fiber optic cables:

Visual Inspection: Begin by thoroughly examining the fiber optic cables for any signs of physical damage, such as cuts, cracks, or wear on the outer jacket, which could compromise the internal fibers. A fiber optic tracer or visual fault locator can help detect breaks, excessive bends, or other visible faults in the cable before proceeding with further testing.

Continuity Testing: This essential check confirms that light transmits properly through the fiber with no major obstructions or breaks. Using a light source at one end and a power meter at the other, technicians verify signal reception—ensuring the fiber maintains a clear optical path for data transmission.

Optical Loss Testing: This critical evaluation measures the total light attenuation (signal loss) across the fiber optic link, accounting for factors like cable distance, connector quality, splices, and microbends. Using an optical light source and power meter (similar to continuity testing), technicians quantify the dB loss and compare it against standardized thresholds for the specific cable type and length to ensure performance meets specifications.

OTDR Testing: The Optical Time-Domain Reflectometer (OTDR) test delivers a detailed performance analysis of fiber optic cables by emitting high-intensity light pulses and measuring backscattered reflections. This method creates a visual "map" of the entire cable length, pinpointing exact locations of signal loss, splices, connectors, or faults. Particularly valuable for long-haul installations, OTDR testing is the industry-standard approach for troubleshooting and certifying fiber optic networks in telecommunications.

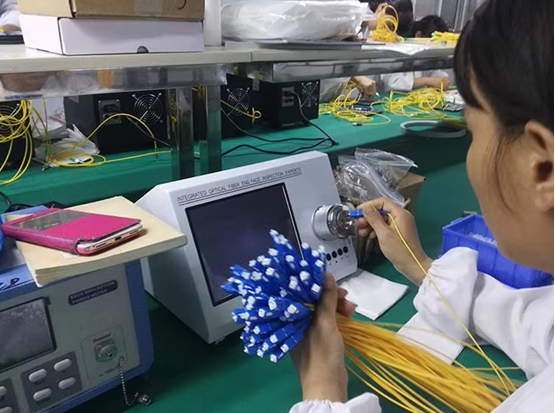

End-Face Inspection examines connector surfaces under magnification to detect contaminants or damage that impair performance. A properly cleaned, defect-free end-face is essential for optimal signal transmission in fiber optic systems.

Insertion Loss (IL) Testing measures signal power reduction when devices like connectors are added to the fiber path. Return Loss (RL) Testing evaluates reflected light levels, where lower IL and higher RL values signify superior cable assembly quality.

Network Testing: This final verification stage assesses the fiber optic cables within its live network environment. The test confirms proper functionality by validating end-to-end communication between network equipment under actual operating conditions.

Any faults detected during testing must be promptly addressed through appropriate remediation measures. Depending on the issue, this may require cable segment replacement, connector repairs, or thorough end-face cleaning to restore proper functionality.
