Product Overview

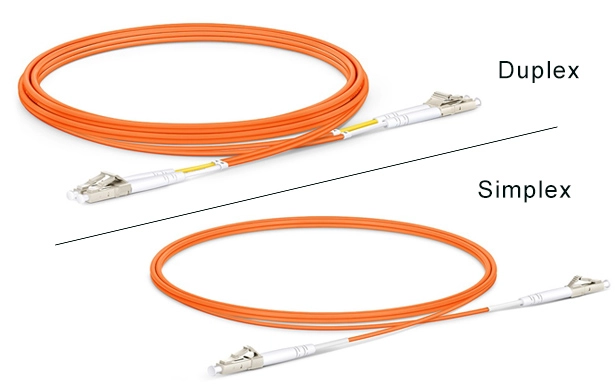

OM1 multimode fiber jumper MMF jumper, simplex/duplex fiber cable Product detailsOM1 Multimode Fiber Patch Cable MMF Patch Cable, Simplex/Duplex Fiber Cable Technical ParametersLC UPC Simplex Patch Cord (OM1)SpecificationsConnector ALC UPC SimplexConnector BLC UPC SimplexFiber Count1 FiberFiber Grad
LC UPC Simplex Patch Cord (OM1)
| Specifications | |||
|---|---|---|---|
| Connector A | LC UPC Simplex | Connector B | LC UPC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.651 |
| Fiber Mode | OM1 62.5/125μm | Wavelength | 850/1300nm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 15mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -20 to 70°C (-4 to 158°F) |
LC UPC Duplex Patch Cord (OM1)
| Specifications | |||
|---|---|---|---|
| Connector A | LC UPC Duplex | Connector B | SC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.651 |
| Fiber Mode | OM1 62.5/125μm | Wavelength | 850/1300nm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 15mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -20 to 70°C (-4 to 158°F) |
OM1 fiber optic jumper is a multi-mode fiber optic connection component using OM1 (62.5/125 μm) fiber optic, suitable for short-distance, high-speed fiber optic communication systems. OM1 fiber optic jumper is an ideal choice for local area network (LAN), data center and indoor cabling due to its high cost performance and wide compatibility.
Fiber Type: OM1 multimode fiber (62.5/125 μm).
Connector type: Optional LC, SC, ST, FC, MTP/MPO, etc., supports simplex or duplex configuration.
Sheath material: Low smoke halogen-free (LSZH) or PVC, with flame-retardant and environmentally friendly properties.
Outer diameter: Usually 2.0 mm or 3.0 mm, customizable as required.
Length: Standard 1 m, 2 m, 3 m, 5 m, 10 m, etc.; custom lengths supported.
Cost-effective: Suitable for scenarios with limited budgets while still requiring high-performance fiber connections.
Short-distance high-speed transmission: Supports 1Gbps Ethernet (1000BASE-SX) and 10Gbps Ethernet (10GBASE-SR) for short-range links.
Low insertion loss: Typically ≤0.3 dB for efficient signal transmission.
Easy to install and maintain: Simple structure for quick plug-and-play deployment and reduced O&M costs.
Wide compatibility: Works with switches, routers, servers, and storage; ideal for LANs, data centers, and indoor cabling.
Durability: Wear- and tensile-resistant sheath; LSZH meets environmental and flame-retardant requirements for high-safety sites.
Multiple connector options: LC, SC, ST, FC, MTP/MPO available to meet varied applications.
Local Area Network (LAN): Cabling for enterprises, campuses, and office buildings.
Data center: High-speed connections between servers, switches, and storage devices.
Indoor wiring: Used for fiber communication systems within buildings.
Security monitoring: Signal transmission for video surveillance systems.
Industrial communication: Short-range links in industrial automation and control systems.
