Fiber optic cable assembly

A fiber optic cable assembly is a fully integrated unit composed of optical fibers, connectors, protective jackets, and associated components, designed to enable efficient optical signal tranSMission between devices or systems. These assemblies serve as critical elements in fiber optic communication networks, ensuring high-performance data, voice, and video transmission over extended distances with low signal attenuation and minimal electromagnetic interference.

Key components and features of a fiber optic cable assembly include:

Optical Fibers

Optical fibers are thin, flexible strands of glass or plastic that act as the core transmission medium for optical signals. Utilizing the principle of total internal reflection, they efficiently guide light over long distances with minimal signal loss and dispersion.

Connectors

Connectors are precision mechanical interfaces mounted on fiber ends, enabling quick and secure connections between cables, devices, or equipment. Common connector types include:

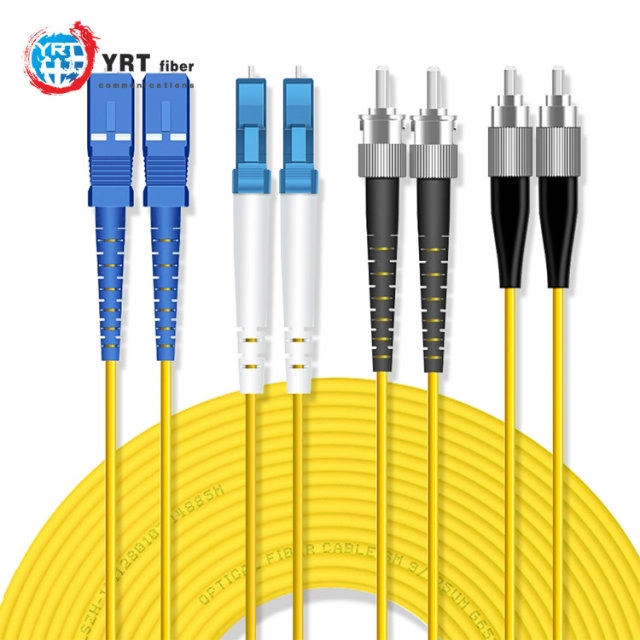

LC, SC, ST, FC (standard single-fiber connectors)

MTP/MPO (multi-fiber connectors for high-density applications)

Each type offers distinct advantages depending on performance requirements and installation environments.

Connector Termination

Termination involves attaching connectors to fiber ends using methods such as:

Epoxy curing (adhesive-based polishing)

Mechanical splicing (alignment via precision fittings)

Fusion splicing (permanent bonding with heat)

Proper termination ensures optimal optical alignment, minimizing insertion loss and maximizing signal integrity.

Protective Jackets

Fiber optic cable assembly are encased in durable outer jackets made of materials such as PVC, polyethylene, or Teflon. These protective sheaths provide:

Mechanical strength to withstand physical stress

Environmental resistance against moisture, chemicals, and abrasion

Insulation to shield fibers from external contaminants

Strain Relief

To prevent damage from excessive bending or tension, fiber optic assemblies incorporate strain relief mechanisms such as:

Cable glands (for secure port entry)

Boots (to protect connector joints)

Bend radius limiters (to maintain safe curvature)

These features preserve fiber integrity and prevent signal loss or connector damage.

Fiber Optic Cable Types

Fiber optic cable assembly use either single-mode (SMF) or multimode (MMF) fibers, differing in core diameter and performance:

Single-mode: Smaller core (9/125 µm), optimized for long-distance, high-bandwidth transmission (eg, telecom, data centers).

Multimode: Larger core (50/125 µm or 62.5/125 µm), suited for short-distance applications (eg, LANs, CCTV).

Length and Configuration

Fiber optic cable assembly are customizable in length and topology to fit diverse installations:

Point-to-point (simple duplex/triplex links)

Multi-fiber (eg, ribbon cables for high-density patching)

Complex network architectures (eg, branched or looped systems)

In conclusion, fiber optic cable assembly have become indispensable components across multiple industries, from telecommunications and data centers to military systems and medical technologies. These advanced solutions outperform traditional copper cables by delivering superior bandwidth capabilities, extended transmission ranges without signal degradation, complete immunity to electromagnetic interference, and significant space and weight savings. The unique advantages of fiber optic cable assemblies make them fundamental to building the high-performance, future-ready networks that power our increasingly connected world, enabling the high-speed data transmission required for next-generation digital infrastructure.
