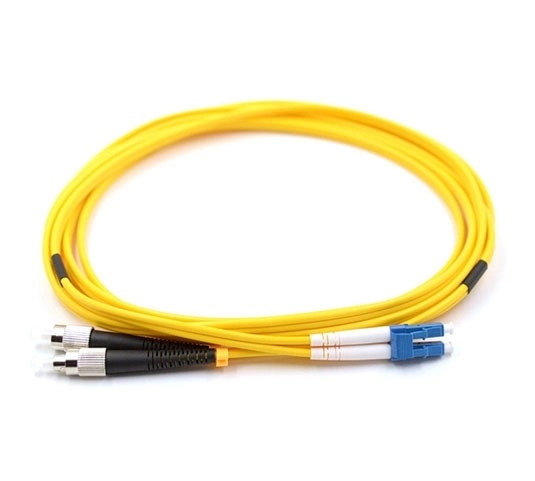

SM Fiber Optic cable Patch cord/ Fiber Jumpers/ Single Mode Patch cord

Product Overview

SM Fiber Optic Patch cords/ Fiber Jumpers/ Single Mode Patch cord application:1. Widely used in FTTC access networks;2. Telecommunications/CATV systems;3. Data processing network.SM Fiber Optic Patch cords/ Fiber Jumpers/ Single Mode Patch cord features:1. Low insertion loss;2. Good reproducibility;

Product Model：SM

Update Time：2025-06-13

Fiber Type：SM(G652/G657A)

Fiber coreSimplex,duplex

Manufacturer Type：

Fiber Core Count：2-288 Cores

Outer Jacket：LSZH/PVC

Standard：

Port Type：Simplex,duplex

Polishing Type：

Adapter Type：SC,LC,FC,ST,E2000

Splitter Type：Insert Type/Box type/Mini PLC splitter

Connector Type：SC/FC/LC/ST

Inquiry Now

SM Fiber Optic cable Patch cord/ Fiber Jumpers/ Single Mode Patch cordDetailed Introduction

Online Message

SM fiber optic patch cords/ fiber jumpers/ Single Mode Patch cord application:

1. Widely used in FTTC access networks;

2. Telecommunications/CATV systems;

3. Data processing network.

SM Fiber Optic Patch cords/ Fiber Jumpers/ Single Mode Patch cord features:

1. Low insertion loss;

2. Good reproducibility;

3. High return loss;

4. Good interpolation performance;

5. Good temperature stability.

Specifications

Item	Single mode patch cord(simplex/duplex)
Fiber type	SM(G652/G657A)
Jacket material	LSZH/PVC
Connector type	SC/FC/LC/ST
Ferrule materials	Ceramic APC /UPC
Cable dimension	0.9mm,2.0mm,3.0mm
Cable color	yellow
Testing wavelengths	1310±30/1550±30nm
Insertion Loss(dB)	≤ 0.3dB
Return Loss(dB)	≥50dB
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	Poly bag

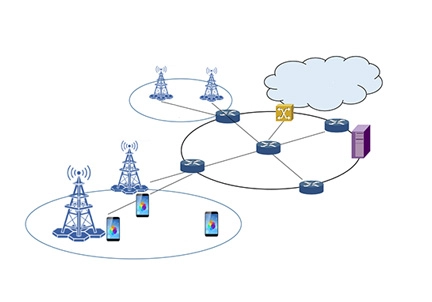

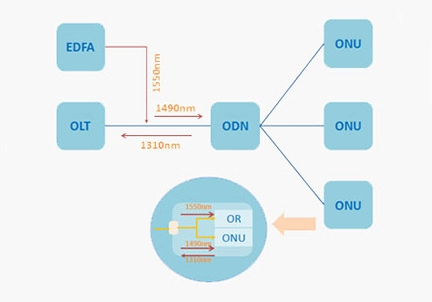

application

Widely-used-in-FTTC-access-network
Data-processing-networks
CATV Systems
