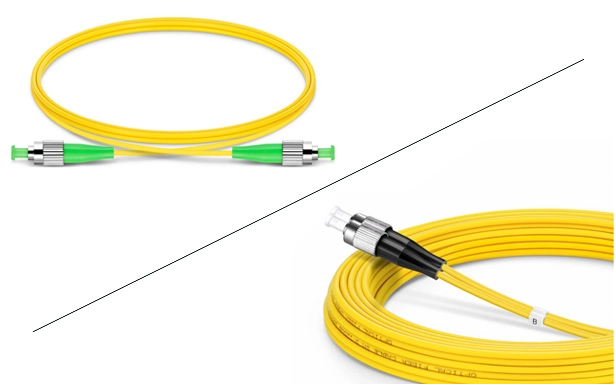

FC-FC APC Simplex/Duplex Singlemode optical fiber patch cord​ ,Fiber Jumper Cable

Product Overview

FC-FC Singlemode Patch Cords Product Overview:FC-FC single-mode fiber patch cable is a high-performance fiber optic connection component, which adopts FC-type connector (Ferrule Connector) and is suitable for single-mode fiber optic transmission system. FC connector is famous for its thre

FC-FC APC Simplex/Duplex Singlemode optical fiber patch cord​ ,Fiber Jumper CableDetailed Introduction

Online MessageDataDownload



FC-FC Singlemode Patch Cords Product Overview:

FC-FC single-mode fiber patch cable is a high-performance fiber optic connection component, which adopts FC-type connector (Ferrule Connector) and is suitable for single-mode fiber optic transmission system. FC connector is famous for its thread locking design, providing stable connection performance, and is widely used in high-precision and high-reliability fiber optic communication scenarios.

FC-FC Singlemode Patch Cords Product Structure:

  • Fiber Type: Single-mode fiber (ITU-T G.652D or G.657A1/G.657B3).
  • Connector type: FC-FC (FC connectors on both ends).
  • Sheath material: Low smoke and halogen-free (LSZH) or PVC, with flame retardant and environmentally friendly properties.
  • Outer diameter: Usually 2.0mm or 3.0mm, it can be customized according to requirements.
  • Length: Standard lengths are 1m, 2m, 3m, 5m, 10m, etc. Customized lengths are supported.

FC-FC Singlemode Patch Cords Product Features

  1. High-precision connection:
           The FC connector uses ceramic ferrules to ensure high-precision docking, low insertion loss (typically ≤ 0.2dB), and high return loss (≥ 50dB), making it suitable for high-sensitivity optical communication systems.
  2. Stable and reliable:
           The threaded locking design makes the connection more stable and has excellent vibration resistance, making it suitable for long-term use in harsh environments.
  3. Low insertion loss:
           The use of high-quality single-mode fiber ensures high signal transmission efficiency and is suitable for long-distance, high-speed data transmission.
  4. Bending resistance:
           Optional bend-insensitive fiber (G.657A1/G.657B3) is available, resulting in less signal attenuation during bending or compression, making it suitable for complex wiring environments.
  5. Durability:
           The sheath material has excellent wear resistance and tensile resistance, prolonging the service life. The low-smoke halogen-free sheath meets the requirements of environmental protection and flame retardancy, and is suitable for high safety standard scenarios such as data centers.
  6. Wide compatibility:
           Support 1G/10G/25G/40G/100G/400G Ethernet transmission, suitable for telecommunications, data centers, radio and television, industrial communication and other scenarios.
  7. Easy to install and maintain:
           The structure design is simple, easy to plug and unplug, supports rapid deployment and maintenance, and reduces operation and maintenance costs.

Application scenario

  • Telecommunications network: Used for base stations, transmission equipment, fiber optic distribution frames and other scenarios.
  • Data center: Suitable for high-speed connections between servers, switches, and storage devices.
  • Broadcast Television: It is used in signal transmission and distribution systems.
  • Industrial communication: Suitable for harsh environments such as industrial automation and monitoring systems.
  • Test and Measurement: It is used for the connection of optical fiber testers and equipment.


Specifications

Connector AFC APC SimplexConnector BFC APC Simplex
Fiber Count1 FiberFiber GradeG.657.A1 (Compatible with G.652.D)
Fiber ModeOS2 9/125μmWavelength1310/1550nm
RoHS Compliancy StatusCompliantCable TypeTight-Buffered
Cable Outside Diameter (OD)2.0mmFlame RatingRiser (OFNR)
Min. Bend Radius (Optical Fiber)10mmMin. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Connector Durability1000 timesTensile Strength (Long/Short Term)60/100N
Insertion Loss≤0.3dBReturn Loss≥60dB
Attenuation at 1310 nm0.36dB/kmAttenuation at 1550 nm0.22dB/km
Operating Temperature-20 to 70°C (-4 to 158℉)Storage Temperature-40 to 80°C (-40 to 176℉)
