Product Overview
LC APC to LC APC simplexDuplexProduct details:Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.This OS2 fiber patch cable is designed for high-speed ne
simplex
Duplex
Product details:
Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.
This OS2 fiber patch cable is designed for high-speed networks and supports 1G/10G/25G/40G/100G/400G Ethernet connections, especially for long-distance transmission. Its transmission performance is excellent, it can support transmission distances of up to 10 kilometers at 1310nm wavelength, and can extend to 40 kilometers at 1550nm wavelength.
Compared with traditional fiber optic jumpers, this bend-insensitive fiber optic jumper has less signal attenuation when bent or twisted, significantly improving installation efficiency and maintenance convenience, making it particularly suitable for complex wiring environments.
Product parameters:

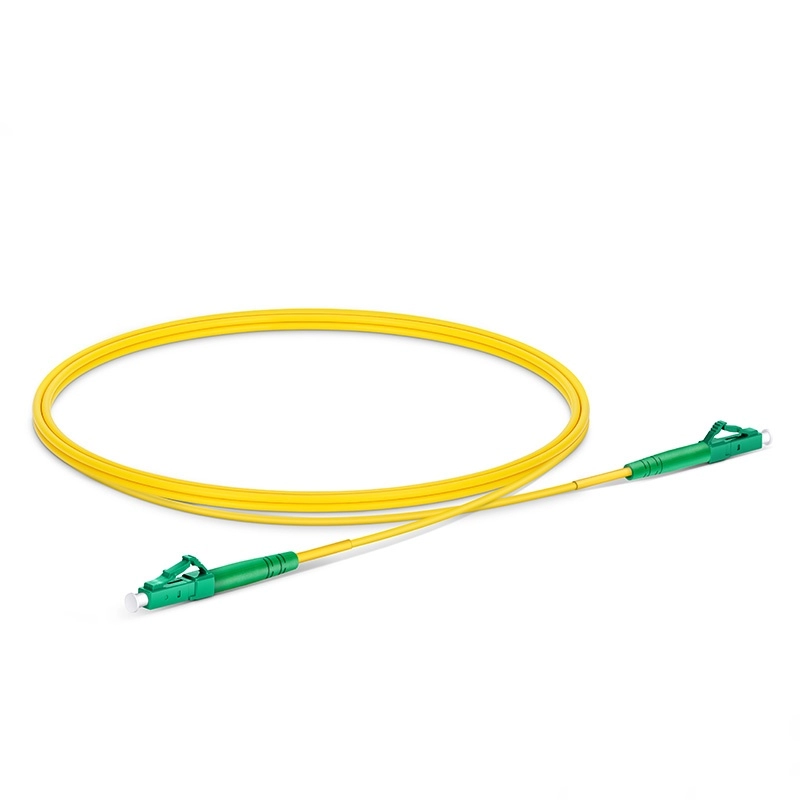

LC APC Simplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |

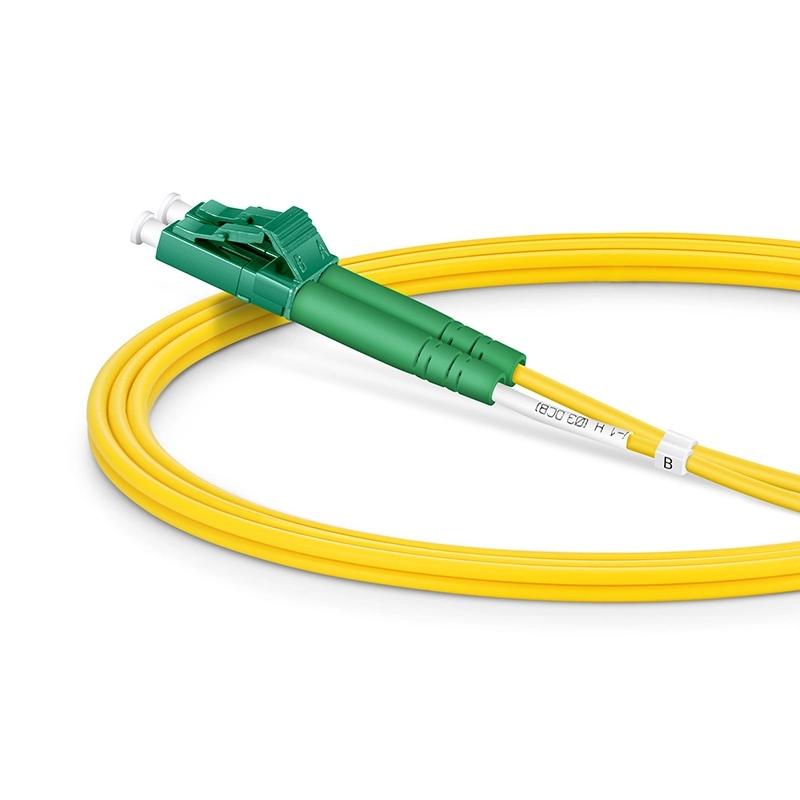

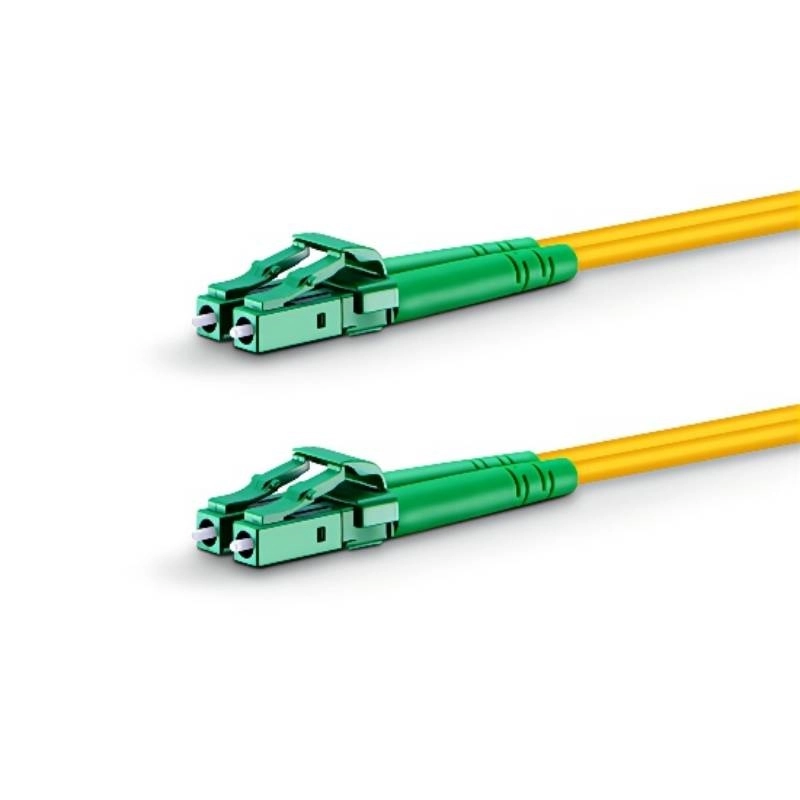

LC APC Duplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
