Product Overview

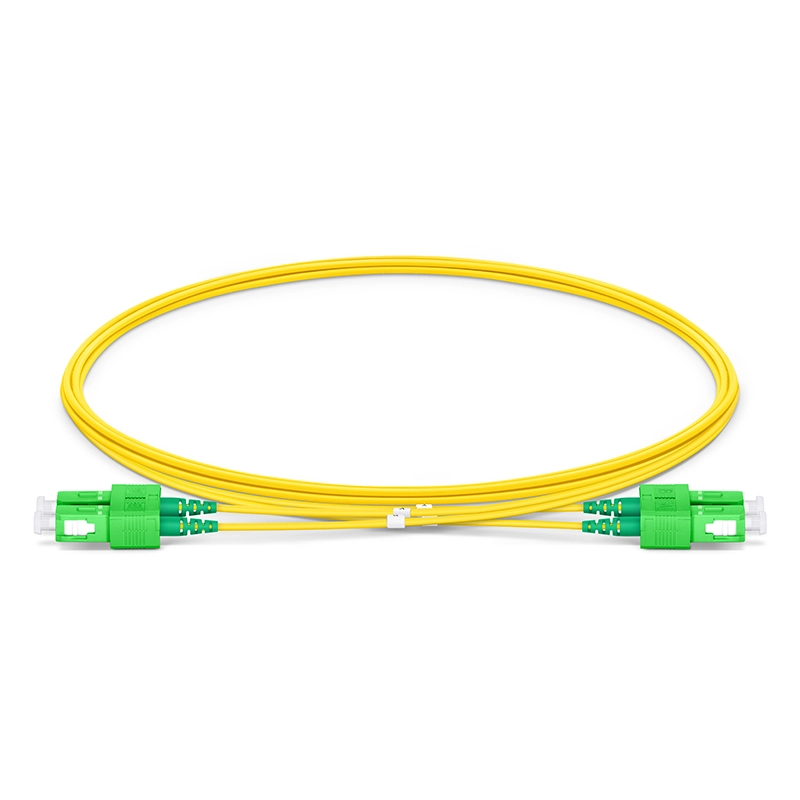

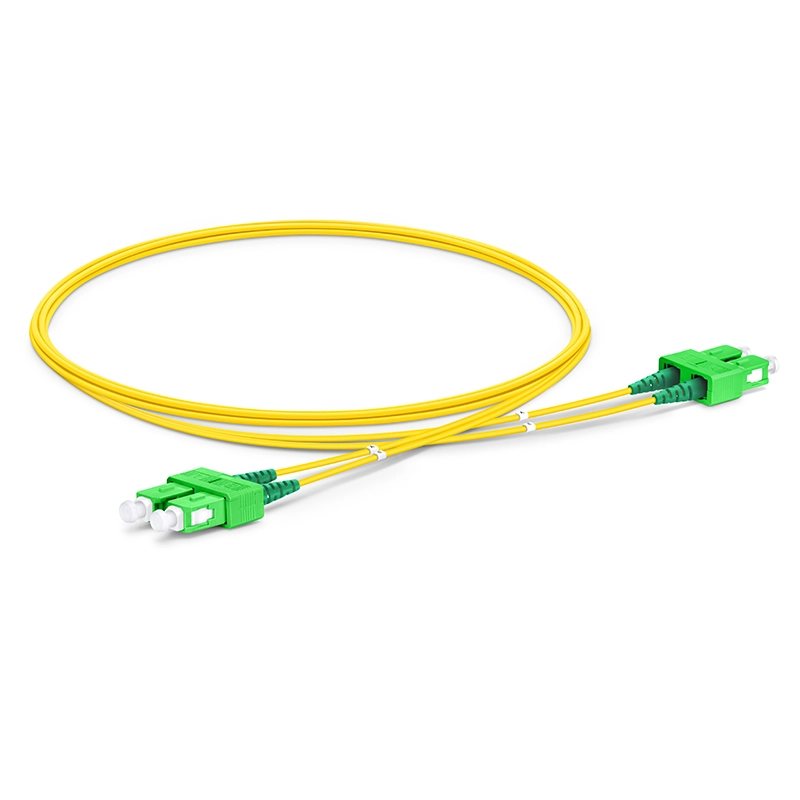

Fiber Patch Cable, SC APC to SC APC, Simplex , Duplex Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.This OS2 fiber patch cable is designed for high-speed ne
Fiber optic jumpers are widely used in entry facilities, telecom rooms, data centers, and desktop equipment, providing flexible interconnect and cross-connect solutions for various devices.
This OS2 fiber patch cable is designed for high-speed networks and supports 1G/10G/25G/40G/100G/400G Ethernet connections, especially for long-distance transmission. It supports up to 10 km at 1310 nm and up to 40 km at 1550 nm.
Compared with traditional jumpers, this bend-insensitive cable has less signal attenuation when bent or twisted, improving installation efficiency and maintenance convenience for complex wiring environments.
Specifications
Simplex
| Connector A | SC APC Simplex | Connector B | SC APC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125µm | Wavelength | 1310/1550nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter (OD) | 1.2mm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 20/40N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Duplex

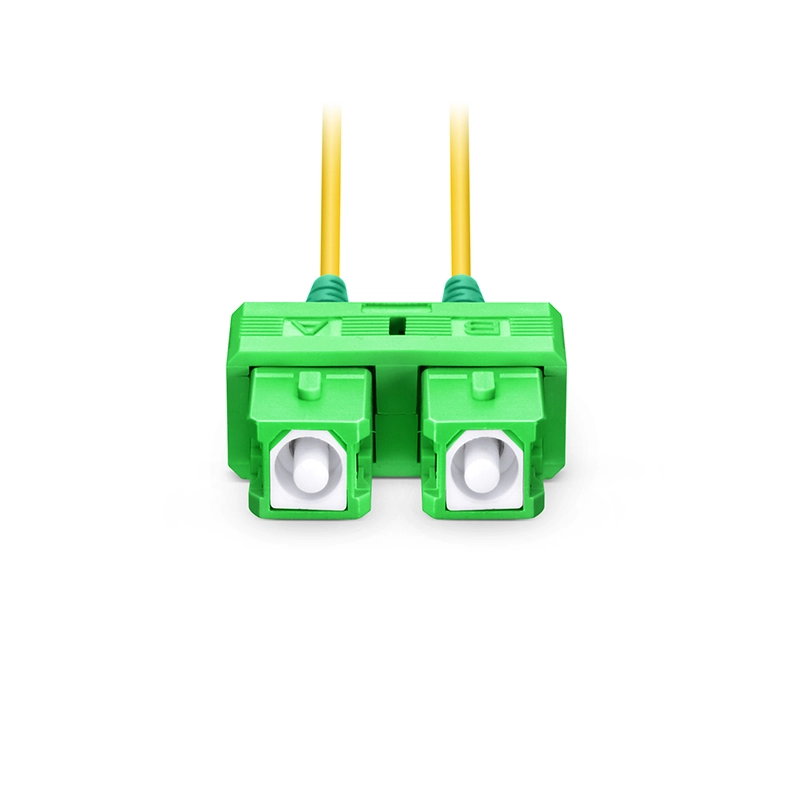

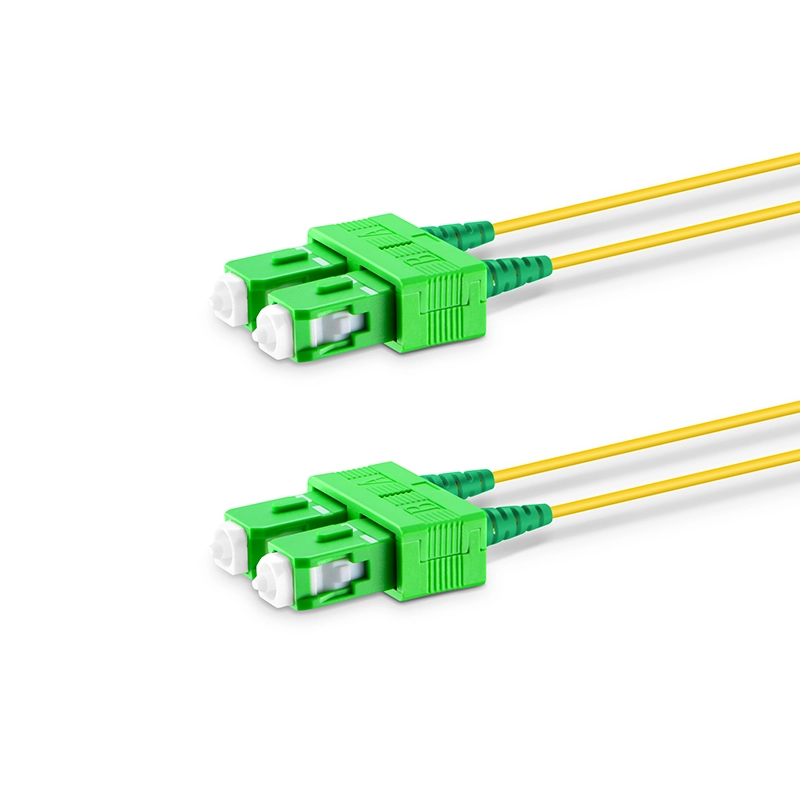

| Connector A | SC APC Duplex | Connector B | SC APC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter (OD) | 1.2mm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 40/80N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -20 to 70°C (-4 to 158°F) |
