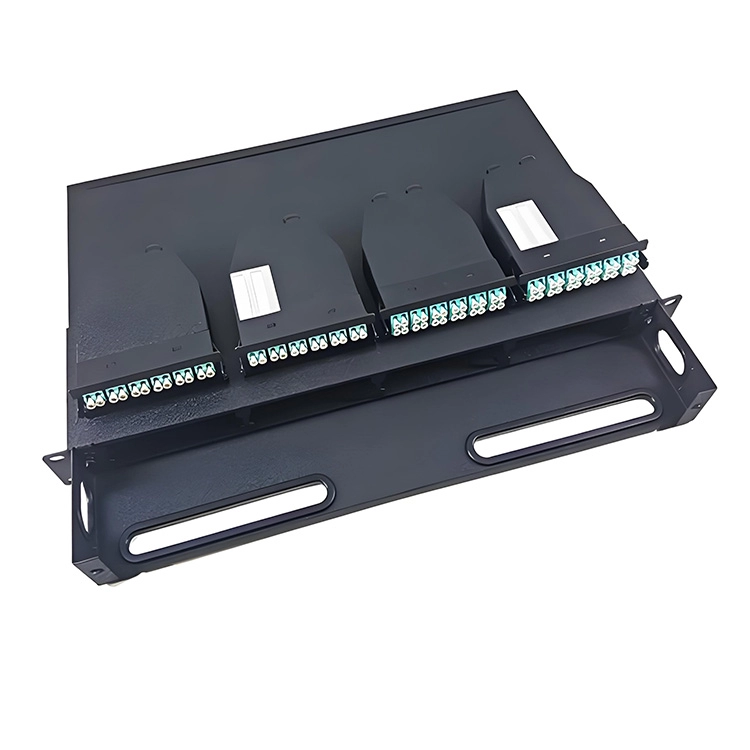

Slide Rail Type ODF Distribution Frame

Slide Rail Type ODF Distribution Frame

parameter：

ST-STyle: none; margin: 14px 0px 8px; scrollbar-width: none; color: rgb(5, 7, 59); font-size: 20px; border: none; line-height: 1.7; text-wrap-mode: wrap; background-color: rgb(253, 253, 254);">

Slide Rail Type ODF Distribution Frame Products

The Slide Rail Type ODF Distribution Frame is a fiber management device designed for high-density fiber network cabling. It is suitable for fiber access, distribution and protection in scenarios such as data centers, telecommunications rooms, and enterprise networks. Its unique slide rail design significantly improves installation flexibility and maintenance efficiency, and is a core component of modern fiber infrastructure.

Slide Rail Type ODF Distribution Frame Products

The Slide Rail Type ODF Distribution Frame is a fiber management device designed for high-density fiber network cabling. It is suitable for fiber access, distribution and protection in scenarios such as data centers, telecommunications rooms, and enterprise networks. Its unique slide rail design significantly improves installation flexibility and maintenance efficiency, and is a core component of modern fiber infrastructure.

Slide Rail Type ODF Distribution Frame Core Features

1. Slide Rail Innovative Structural Design

Quick deployment: The slide rail tray supports easy extraction, which facilitates the plugging and unplugging of fiber jumpers and link debugging without disassembling the entire rack.

Space optimization: The tray is layered and supports front and back or upper and lower slide rails to adapt to different cabinet depths and maximize the use of cabinet space.

Modular expansion: The slide rail units can be increased or decreased independently, and the number of ports can be configured as needed, which can flexibly adapt to network expansion needs.

2. High-density port capacity

Large capacity design: A single frame supports hundreds to thousands of fiber ports (such as LC/SC/MPO interface types) to meet high-density cabling needs.

Layered management: multi-layer tray design, layered label management, reduce fiber cross-interference, improve maintenance efficiency.

3. High-quality materials and craftsmanship

Sturdy and durable: made of cold-rolled steel plate or aluminum alloy, surface electrostatic spraying treatment, rust-proof and corrosion-resistant, strong load-bearing capacity.

Precise craftsmanship: laser cutting process ensures dimensional accuracy, accurate port alignment, and avoids fiber loss.

4. Intelligent fiber management function

Bending radius control: built-in fiber fixing clamp and winding ring to ensure that the fiber bending radius is ≥30mm, in line with IEC standards.

Visual management: transparent or flip-up door panel design supports visualization of fiber direction for easy troubleshooting.

Label system: standard printable label strips and scanning positions, support electronic management, and improve operation and maintenance efficiency.

5. Multi-scenario compatibility

Interface type: supports single-mode/multi-mode optical fiber, and is compatible with SC, LC, FC, ST, MPO/MTP and other connectors.

Rack adaptation: 19-inch standard rack installation, compatible with ETSI and ANSI hole positions, and compatible with mainstream cabinets around the world.

6. High reliability protection

Electromagnetic shielding: The metal structure provides a natural shielding layer to prevent electromagnetic interference (EMI) and ensure signal stability.

Dustproof and waterproof: Optional IP20 or IP55 protection level to adapt to different environmental requirements (such as industrial-grade applications).

7. Standardization and certification

Compliance with standards: Meet international wiring standards such as TIA-568-C.3 and ISO/IEC 11801.

Authoritative certification: Passed CE, RoHS, UL and other certifications to ensure safety, environmental protection and performance reliability.

Slide Rail Type ODF Distribution Frame Typical application scenarios

Data center: As a backbone fiber distribution area (MDA) or horizontal distribution area (HDA), it supports 40G/100G/400G networks.

Telecom room: Used for the wiring of the central office equipment of the fiber access network (FTTx) to achieve optical cable termination and jumpering.

Enterprise network: As a core room or floor distribution cabinet, it manages multi-floor fiber links.
