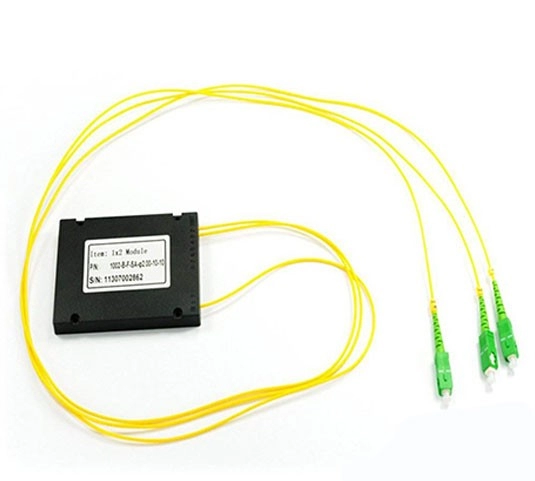

盒式光纤 PLC 分光器 分路器

Type

1×2

1x4

1x8

1x16

1x32

1x64

Insertion Loss (dB) Max.

3.8

7

10.2

13.3

16.5

19.8

PDL(dB)Max.

0.2

0.2

0.2

0.2

0.2

0.3

Loss Uniformity (dB) Max.

0.6

0.5

0.8

10

1.2

1.6

Type

2×2

2x4

2x8

2x16

2x32

2x64

Insertion Loss (dB) Max.

4

7.3

10.5

13.8

17.2

20.5

PDL(dB)Max.

0.2

0.2

0.2

0.3

0.3

0.3

Loss Uniformity (dB) Max.

0.6

0.8

1

1.4

1.8

2.2

Directivity (dB) Min

55

Return Loss (dB) Min

55

Wavelength Dependent Loss (dB) Max

1.0

Operating Temperature (°C)

-40 ~ +85

Storage Temperature (°C)

-40 ~ +85

Optical input power Max

300mW

Fiber length

1.0m or as your requirement

Splitter type

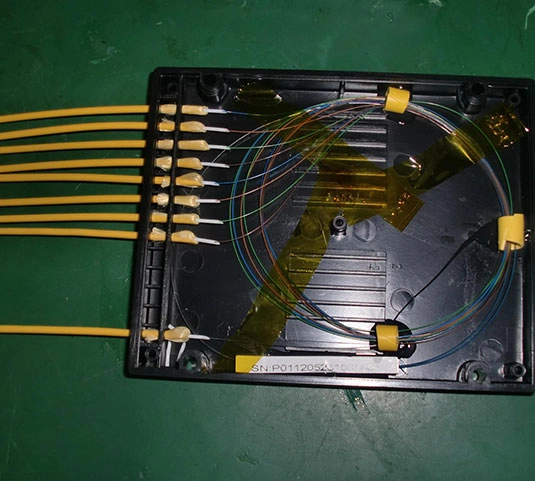

Insert Type/Box type/Mini PLC splitter

Connector Type

SC UPC,SC APC

Polishing type

UPC, APC

Fiber Type

Single-mode, Muti-mode

Note: All above specifications do not include connector loss and adaptor loss.
