🔥 “Need to Bend Over Backwards in Tight Spaces?”
Why settle for fragile fiber? Our GJYXFCH cable packs G657A1 bend-insensitive fiber with a 5mm bending radius – perfect for corners, ducts, and cramped installations. Could your current cable survive this twist?
🌧️ “What If Fire Strikes – Will Your Cable Save Lives?”
LSZH jacket isn’t just a feature—it’s a lifesaver. Zero toxic fumes. Zero halogen risks. Would your network pass a safety audit tomorrow?
🌪️ “Can Your Infrastructure Handle 20+ Years of Abuse?”
With armored tensile strength (1500N+) and IP68 waterproofing, GJYXFCH laughs off storms, UV rays, and rodents. How much are you spending on replacements yearly?
💡 “Why Let Slow Deployment Delay Your 5G Rollout?”
Pre-terminated, customizable, and shipped in 72 hours. Could your supplier move this fast?
GJYXFCH: La respuesta a "¿Y si?"
De los parques solares del desierto al caos urbano de FTTH - Isn’t it time your cables worked harder than your team?
📲 Challenge Us. Prove It.
Ready to see if GJYXFCH outlasts your toughest site? Let’s stress-test your specs!
¿Por qué preguntas? Porque los problemas del mundo real exigen soluciones audaces. 🚀🔗
¿Por qué elegir? Cable de caída al aire libre de 1 núcleo G657A1, lszh ¿GJYXFCH?
Hoja de datos de cable de caída al aire libre de 1 núcleo (GJYXFCH)
Diseñado para la resiliencia: fibra G657A1 y protección LSZH en entornos extremos
El GJYXFCH 1-Core Outdoor Drop Cable redefines reliability for modern connectivity challenges. Designed with G657A1 bend-insensitive fiber and a Low SMoke Zero Halogen (LSZH) jacket, this cable combines cutting-edge materials with precision engineering to thrive in harsh outdoor conditions—from dense urban ftth networks to remote solar farms.

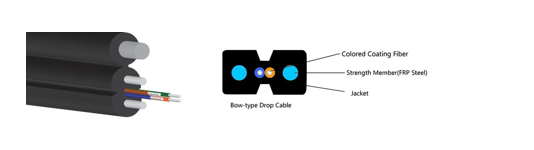

(Inserte el diagrama del producto etiquetado: "Estructura de cable de caída tipo arco")
Component | Material | Function |
Núcleo de fibra | Fibra monomodo G657A1 | Minimiza la pérdida de señal en un radio de flexión de 5 mm |
Miembro De Fuerza | FRP / Refuerzo de acero | 1500N + resistencia a la tracción para instalaciones aéreas / de conductos |
Chaqueta exterior | LSZH (resistente a los rayos UV) | Retardante de llama, baja toxicidad y ecológico |
Diseño Autoportante | Estructura Aérea Tipo Arco | Montaje de poste / conducto sin esfuerzo con cero flacidez |
Parameter | Specification |
Tipo De Fibra | G657A1 (compatible con ITU-T) |
Rango de longitud de onda | 1310 nm / 1490 nm / 1550 nm |
Atenuación | ≤ 0,36 dB / km @ 1310nm, ≤ 0,22 dB / km @ 1550nm |
Radio de flexión | 5 mm (estático) / 10 mm (dinámico) |
Resistencia a la tracción | 1500N (a corto plazo) / 600N (a largo plazo) |
Temperatura de funcionamiento | -40 ° C a + 70 ° C |
Clasificación de protección | IP68, resistente a los rayos UV, a prueba de roedores |
Certificaciones | RoHS, REACH, IEC 60794, GR-20 |
Application | Case | Feature |

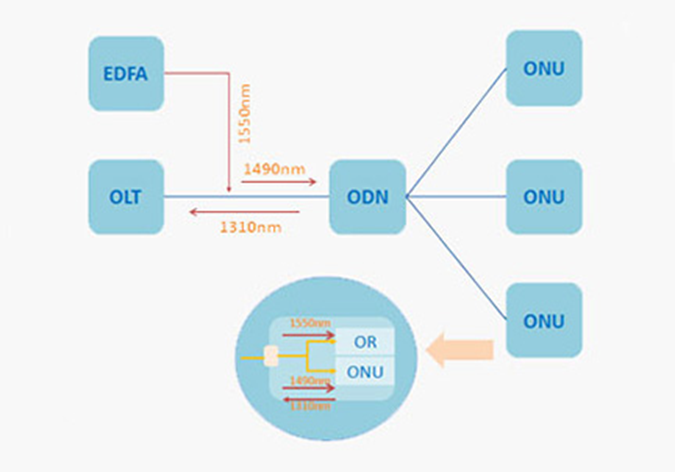

Redes 5G y FTTH | Conectividad de última milla, enlaces ONU / ODN | Ultra-flexible para espacios urbanos reducidos |
Sistemas de Energía Renovable | Monitoreo de parques solares / eólicos y transmisión de datos | Resistente a la intemperie para temperaturas extremas |

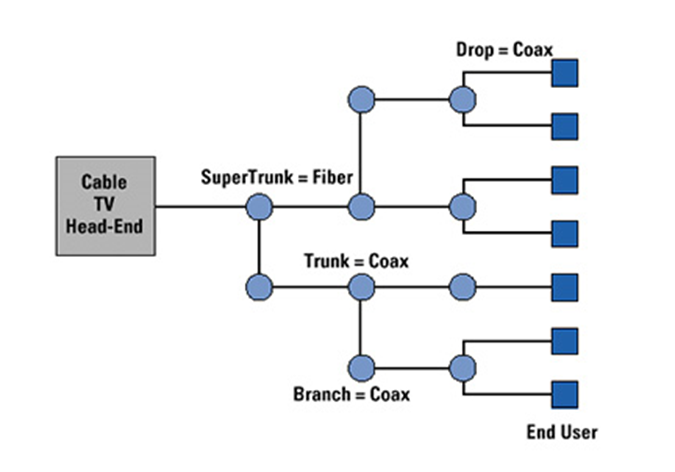

Redes CATV Híbridas | Líneas de caída de fibra coaxial (HFC) | Seguridad LSZH para uso híbrido en interiores y exteriores |
Infraestructura de Ciudad Inteligente | Vigilancia, control de tráfico, IoT | Protección anti-roedores blindada de acero |
