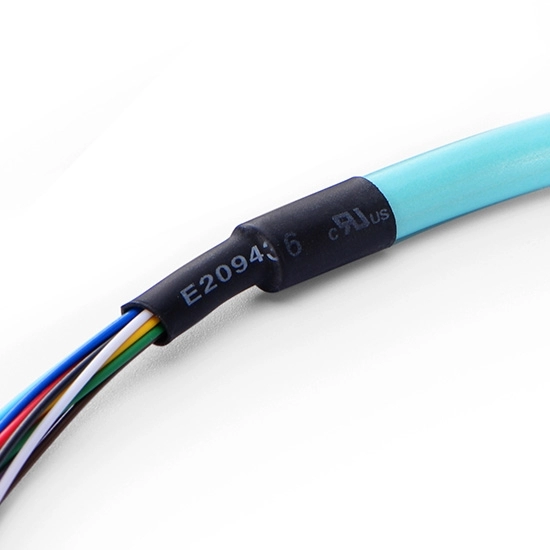

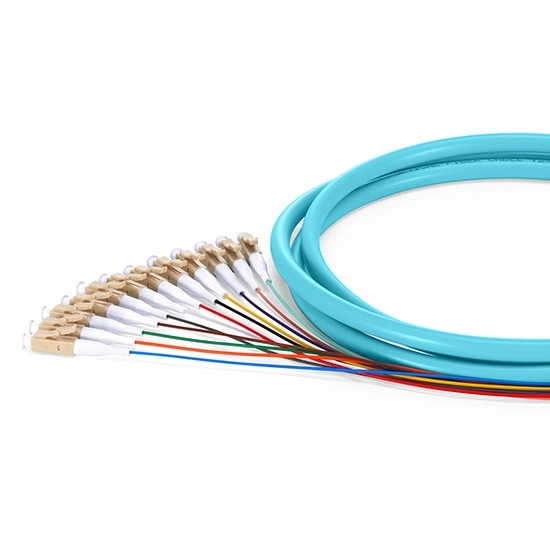

MM Fiber pigtail, 10 megabyte multi-mode dual-core, low-smoke halogen-free, fiber optic cable, transceiver fiber pigtail

SpecificationsConnector ALC UPC SimplexConnector BUnterminatedFiber Count12 FibersFiber GradeBend InsensitiveFiber ModeOM3 50 / 125μmWavelength850/1300nmJacket ColorAquaCable TypeTight-BufferedCable Outside Diameter (OD)0.9mmCable JacketRiser (OFNR)Min. Bend Radius (Optical Fiber)7.5mmMin. Bend Radi

:MM
:2025-04-25
:SM
:2Cores
:LSZH/PVC
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

MM Fiber pigtail, 10 megabyte multi-mode dual-core, low-smoke halogen-free, fiber optic cable, transceiver fiber pigtail

Specifications

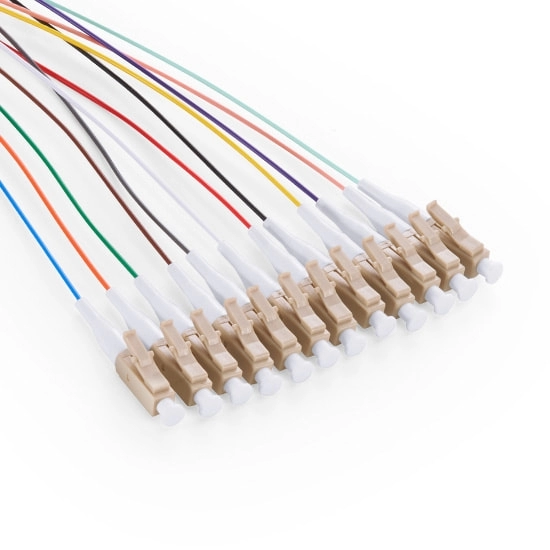

Connector A
LC UPC Simplex
Connector B
Unterminated
Fiber Count
12 Fibers
Fiber Grade
Bend Insensitive
Fiber Mode
OM3 50 / 125μm
Wavelength
850/1300nm
Jacket Color
Aqua
Cable Type
Tight-Buffered
Cable Outside Diameter (OD)
0.9mm
Cable Jacket
Riser (OFNR)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (fiber cable)
20/10D (Dynamic/Static)
Connector Durability
1000 Times
Tensile Strength (Long/Short Term)
200/660N
Attenuation at 850nm
0.30dB/km
Attenuation at 1300nmm
1.0dB/km
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Vibration
≤0.2dB
Interchangeability
≤0.2dB
Operating Temperature
-40 to 75°C (-40 to 167℉)
Storage Temperature
-45 to 85°C (-49 to 185℉)





1. MM Fiber Pigtails Product Overview


MM Fiber Pigtails (Multimode Fiber Pigtails) are fiber optic assemblies with fiber optic connectors at one end and bare fiber optics at the other end. They are mainly used for connection and wiring in fiber optic communication systems. Multimode fiber pigtails are commonly used for short-distance communication, such as local area networks (LANs), data centers, and optical networks inside buildings.


2. MM Fiber Pigtails Product Structure



  • Fiber Type: Multi-mode fiber (MM Fiber), common specifications include OM1, OM2, OM3, and OM4.

  • Connector typeCommon connector types include SC, LC, FC, ST, and others.

  • Fiber Length: Usually 1 meter, 2 meters, 3 meters, etc., can also be customized according to customer needs.

  • sheath materialPVC, LSZH (low SMoke and halogen-free) and other materials are usually used, which have good wear resistance and tensile strength.


3. Features of MM Fiber Pigtails


  • high bandwidthMultimode fiber pigtail supports high-bandwidth transmission and is suitable for short-distance high-speed data transmission.

  • Low insertion lossHigh-quality fiber optic connectors and precision end-face processing technology ensure low insertion loss and high return loss.

  • high reliabilityThe use of high-quality materials and advanced manufacturing processes ensures the stability and reliability of products in harsh environments.

  • Easy to installThe pigtail design makes fiber optic connections more flexible and convenient, suitable for a variety of fiber optic cabling scenarios.

  • Strong compatibilitySupports a variety of fiber optic connector types, making it compatible with a variety of fiber optic devices and systems.


4. MM Fiber Pigtails application scenario


  • Data CenterIt is used for high-speed connectivity between servers, storage devices, and network devices.

  • Local Area Network (LAN)For office buildings, campus networks and other short-distance optical network wiring.

  • Fiber to the Home (FTTH): The last connection for fiber-to-the-home.

  • Industrial networkOptical fiber communication in industrial automation control systems.


5. MM Fiber Pigtails Product Advantages


  • high performanceIt supports high-speed data transmission to meet the needs of modern communication networks.

  • flexibilityA variety of connector types and lengths are available to adapt to different application scenarios.

  • durabilityHigh-quality materials and precision craftsmanship ensure long-term stable operation of the product.

  • EconomyIt is cost-effective and suitable for large-scale deployment and application.


6. MM Fiber Pigtails Technical Parameters


  • Fiber Type: OM1, OM2, OM3, OM4

  • wavelength:850nm、1300nm

  • insertion loss:≤0.3dB

  • return loss: ≥50dB

  • operating temperature: -40 ° C + 85 ° C

  • Storage temperature: -40 ° C + 85 ° C



MM Fiber Pigtails Summary

MM Fiber Pigtails is a high-performance, high-reliability fiber optic connectivity component widely used in various short-distance fiber optic communication systems. Its high-quality materials, precision manufacturing process and flexible design make it an ideal choice for modern optical network cabling.
