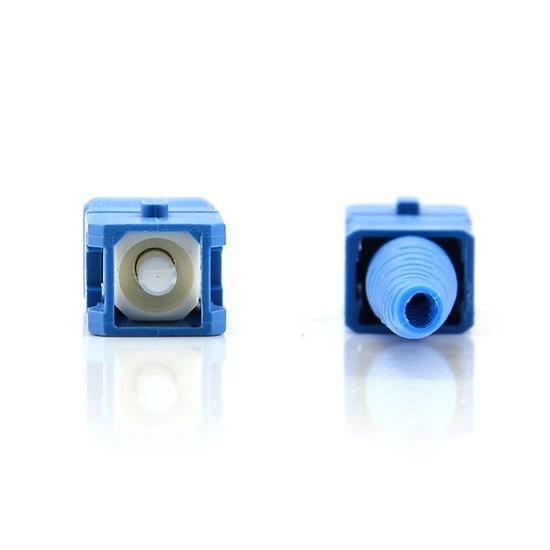

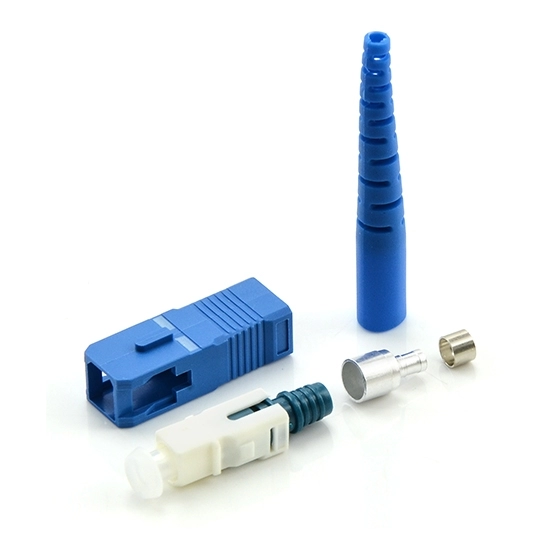

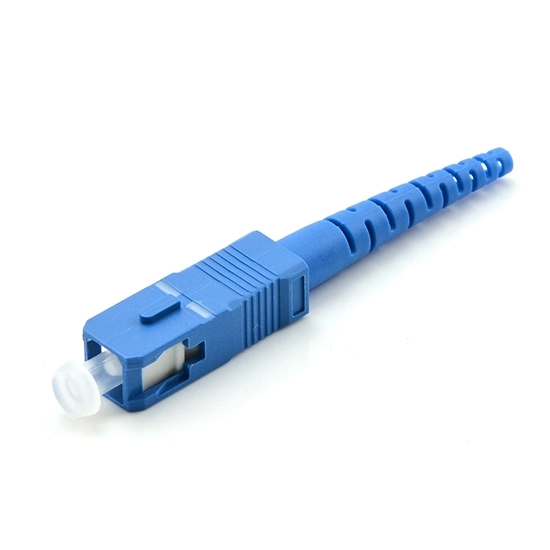

SC connector, UPC fiber optic connector , Plastic

Product Overview

SC UPC/APC plastic fiber optic connectorDescription:Low insertion loss and high return lossGood reuse performanceSC UPC/APC plastic fiber optic connector applicationOptical fiber communication systemFiber Access NetworkCATVOptical fiber data communicationFiber optic test equipmentSpecificationsItemU

Product Model：SC Fiber Optic Connector

Update Time：2025-04-25

Fiber Type：Single-mode, Muti-mode

Manufacturer Type：

Fiber Core Count：2-288 Cores

Outer Jacket：

Standard：

Port Type：Simplex,duplex

Polishing Type：UPC

Adapter Type：SC,LC,FC,ST,E2000

Splitter Type：Insert Type/Box type/Mini PLC splitter

Connector Type：FC, ST, SC, LC

Inquiry Now

SC connector, UPC fiber optic connector , PlasticDetailed Introduction

Online Message

SC UPC/APC plastic fiber optic connectorDescription:

Low insertion loss and high return loss
Good reuse performance

SC UPC/APC plastic fiber optic connector application

optical fiber communication system
Fiber Access Network
CATV
Optical fiber data communication
Fiber optic test equipment

Specifications

Item	UPC		APC
	Φ0.125mm	Φ0.25mm	Φ0.125mm	Φ0.25mm
Radius of Curve(mm)	7~25	10~25	5~12	5~12
Return Loss(dB)	50	50	55	55
Apex Offset(um)	≤50
Fiber Height(nm)	-0.5
Polishing Angle(°)	8±0.3
Testing wavelength(nm)	1310&1550
Insertion Loss	≦0.3dB
Operating temperature	-40℃~ +80℃
Cable diameter	0.9mm, 2mm, 3mm
Service life	N＞1000
Dust Cap	LDPE
Connectors type	FC, ST, SC, LC
Polishing type	UPC, APC
Fiber type	Single-mode, Muti-mode
Port type	Simple, double
Application	drop cable/patch cords/pigtail

application

Fiber-optic-access-networks
CATV
Fiber-optic-communications
