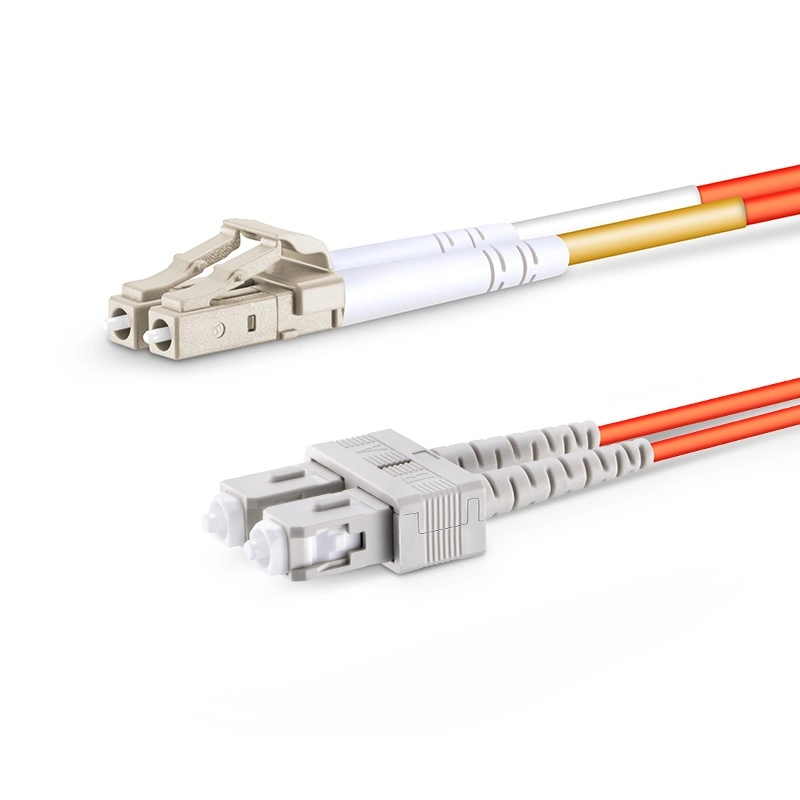

  • OM2 Multimode Fiber Patch Cables

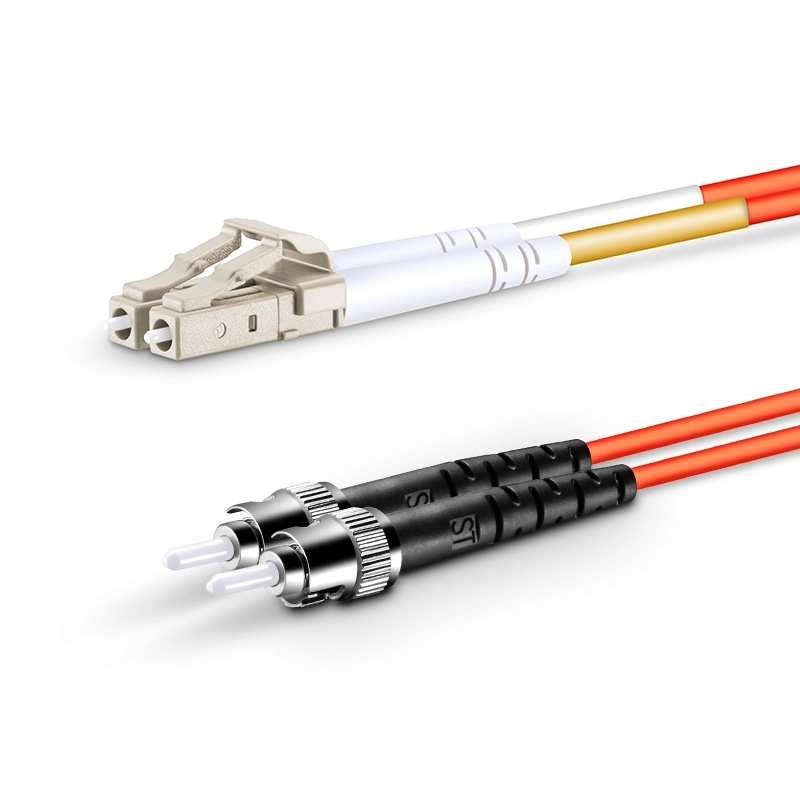

  • OM2 Multimode Fiber Patch Cables

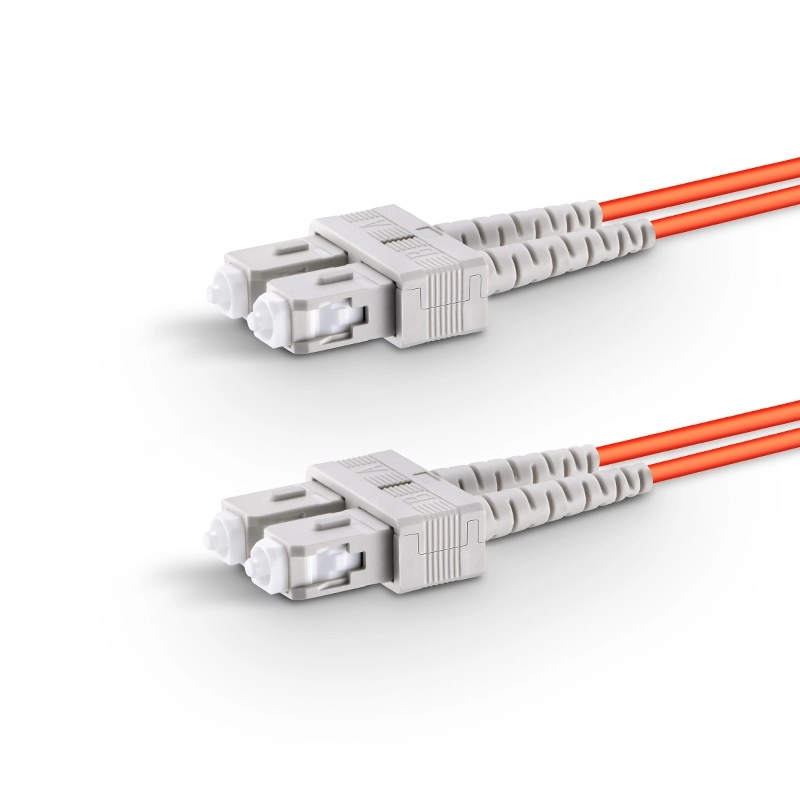

  • OM2 Multimode Fiber Patch Cables

  • OM2 Multimode Fiber Patch Cables

OM2 multimode fiber patch cords, fiber optic cable jumpers, fiber jumper cables

OM2 fiber patch cord product detailsOM2 Multimode Fiber Patch Cable Product Overview:OM2 fiber optic jumper is a multi-mode fiber optic connection component using OM2 (50/125 μm) fiber optic, suitable for short-distance, high-speed fiber optic communication systems. OM2 fiber optic jumper is superio

:OM2
:2025-04-07
:SM
:2-288 Cores
:LSZH/PVC
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

OM2 multimode fiber patch cords, fiber optic cable jumpers, fiber jumper cables


OM2 Multimode Fiber Patch Cables

OM2 Multimode Fiber Patch Cables

OM2 Multimode Fiber Patch Cables

OM2 Multimode Fiber Patch Cables


OM2 fiber patch cord product details

OM2 Multimode Fiber Patch Cable Product Overview:


OM2 fiber optic jumper is a multi-mode fiber optic connection component using OM2 (50/125 μm) fiber optic, suitable for short-distance, high-speed fiber optic communication systems. OM2 fiber optic jumper is superior to OM1 fiber in tranSMission bandwidth and distance, making it an ideal choice for local area networks (LANs), data centers, and indoor cabling.


OM2 multimode fiber patch cord product structure:


  • Fiber Type: OM2 multimode fiber (50/125 μm).

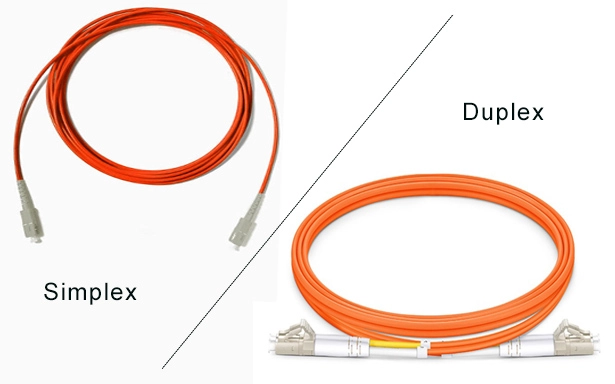

  • Connector type: Optional LC, SC, ST, FC, MTP/MPO, etc., support simplex or duplex configuration.

  • Sheath material: Low smoke and halogen-free (LSZH) or PVC, with flame retardant and environmentally friendly properties.

  • Outer diameter: Usually 2.0mm or 3.0mm, it can be customized according to requirements.

  • Length: Standard lengths are 1m, 2m, 3m, 5m, 10m, etc. Customized lengths are supported.



OM2 Multimode Fiber Patch Cord Product Features


  1. High bandwidth performance:
    OM2 fiber optic jumpers support higher bandwidth (typically 500MHz · km) at a wavelength of 850nm, making them suitable for short-distance high-speed data transmission.

  2. Short-distance high-speed transmission:
    Supports 1Gbps Ethernet (1000BASE-SX) and 10Gbps Ethernet (10GBASE-SR) applications, with better transmission distance than OM1 fiber.

  3. Low insertion loss:
    Low insertion loss (typically less than or equal to 0.3 dB) ensures high signal transmission efficiency.

  4. Easy to install and maintain:
    The structure design is simple, easy to plug and unplug, supports rapid deployment and maintenance, and reduces operation and maintenance costs.

  5. Wide compatibility:
    Compatible with a variety of network devices, such as switches, routers, servers, and storage devices, suitable for local area networks, data centers, and indoor cabling.

  6. Durability:
    The sheath material has excellent wear resistance and tensile resistance, prolonging the service life. The low-smoke halogen-free sheath meets the requirements of environmental protection and flame retardancy, and is suitable for scenes with high safety standards.

  7. Multiple connector options:
    We provide LC, SC, ST, FC, MTP/MPO and other connector types to meet different application requirements.



OM2 multimode fiber jumper application scenario


  • Local Area Network (LAN): Network cabling for businesses, campuses, and office buildings.

  • Data center: Suitable for high-speed connections between servers, switches, and storage devices.

  • Indoor wiring: It is used for fiber optic communication systems in buildings.

  • Security monitoring: Suitable for signal transmission in video surveillance systems.

  • Industrial communication: It is used for short-range communication in industrial automation and control systems.



OM2 multimode fiber jumper technical parameters


参数典型值
Fiber TypeOM2 multimode fiber (50/125 μm)
insertion loss≤0.3dB
working wavelength850nm / 1300nm
transmission distance1Gbps:550m(850nm)/ 550m(1300nm)
10Gbps:82m(850nm)
Connector typeLC、SC、ST、FC、MTP/MPO
sheath materialLSZH / PVC
operating temperature-20 ° C + 70 ° C
tensile strength≥100N


Specifications
Connector A
LC UPC Duplex
Connector B
LC UPC Duplex
Fiber Count
2 Fibers
Fiber Grade
Bend Insensitive
Fiber Mode
OM2 50 / 125μm
Wavelength
850/1300nm
Polarity
A (Tx) to B (Rx)
Cable Type
Tight-Buffered
Cable Outside Diameter (OD)
2.0mm
Flame Rating
Riser (OFNR)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (fiber cable)
20/10D (Dynamic/Static)
Connector Durability
1000 times
Tensile Strength (Long/Short Term)
90/150N
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Attenuation at 850 nm
3.0dB/km
Attenuation at 1300 nm
1.0dB/km
Operating Temperature
-20 to 70°C (-4 to 158℉)
Storage Temperature
-40 to 80°C (-40 to 176℉)
