Product Overview
0M3 fiber jumper, duplex/multi-core MMF jumper, multimode fiber cable applications:1. Widely used in FTTC access networks;2. Telecommunications/CATV systems;3. Data processing network.0M3 fiber jumper, duplex/multi-core MMF jumper, multi-mode fiber cable features:1. Low insertion loss;2. Good reprod
0M3 fiber jumper, duplex/multi-core MMF jumper, multimode fiber cable applications:
1. Widely used in FTTC access networks;

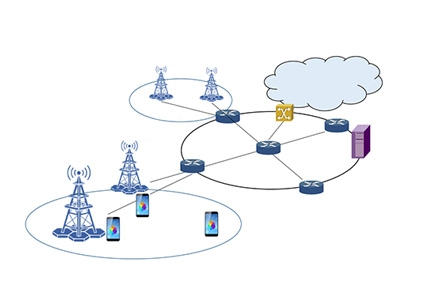

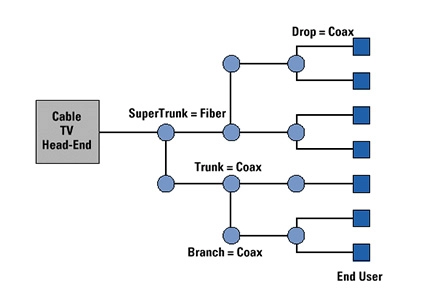

2. Telecommunications/CATV systems;
3. Data processing network.
0M3 fiber jumper, duplex/multi-core MMF jumper, multi-mode fiber cable features:
1. Low insertion loss;
2. Good reproducibility;
3. High return loss;
4. Good interpolation performance;
5. Good temperature stability.

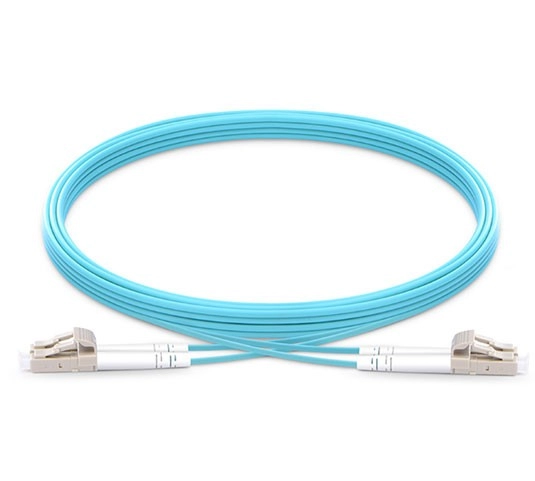

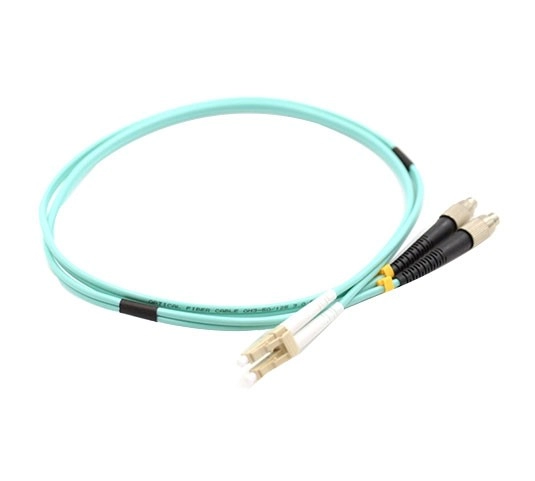

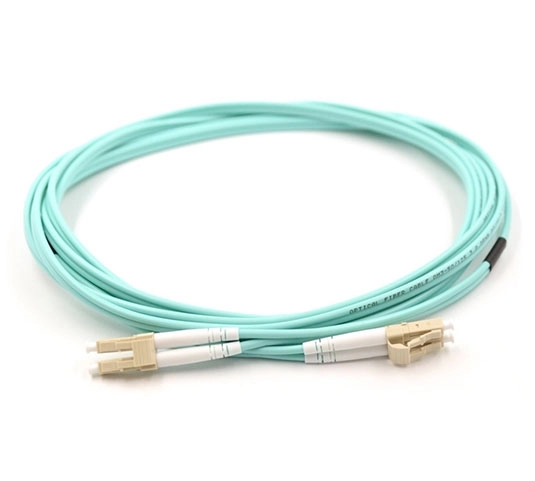

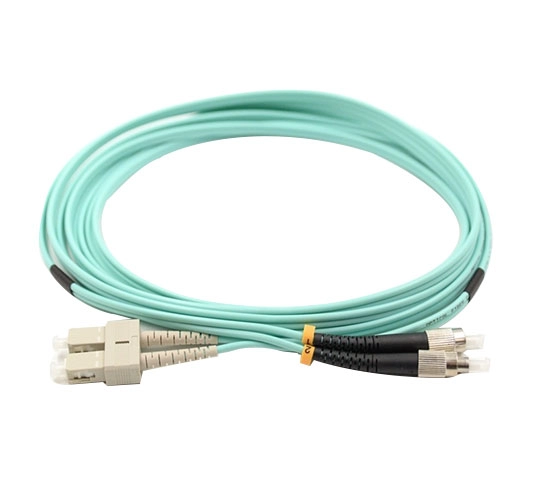

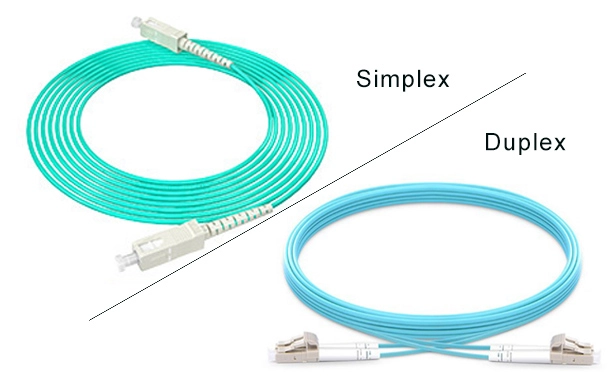

| Item | OM3 patch cord (simplex/duplex) |
|---|---|
| Fiber type | Multimode OM3 (50/125) |
| Jacket material | LSZH/PVC |
| Connector type | SC/FC/LC/ST APC/UPC |
| Ferrule materials | Ceramic |
| Cable dimension | 2.0 mm, 3.0 mm |
| Cable color | Aqua |
| Testing wavelengths | 850 ± 30 nm / 1300 ± 30 nm |
| Insertion Loss (dB) | ≤ 0.3 dB |
| Return Loss (dB) | ≥ 35 dB |
| Operating Temperature (°C) | -10 ~ + 70 |
| Storage Temperature (°C) | -40 ~ + 85 |
| Package | Poly bag |
