Miniature steel tube type PLC splitter ,fiber optic splitter

Miniature steel tube type PLC splitter description:

Low insertion loss

Low PDL

High return loss

Wide wavelength range

Excellent inter-channel consistency

Micro steel tube type PLC splitter application:

FTTH project

LAN, WAN and metropolitan area networks

FTTX deployment

CATV network

GPON、EPON

Test equipment

Database tranSMission broadband network

Specification

Item	Data
Type	1×2	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB) Max.	3.8	7	10.2	13.3	16.5	19.8
PDL (dB)Max.	0.2	0.2	0.2	0.2	0.2	0.3
Loss Uniformity (dB) Max.	0.6	0.5	0.8	10	1.2	1.6
Type	2×2	2x4	2x8	2x16	2x32	2x64
Insertion Loss (dB) Max.	4	7.3	10.5	13.8	17.2	20.5
PDL (dB)Max.	0.2	0.2	0.2	0.3	0.3	0.3
Loss Uniformity (dB) Max.	0.6	0.8	1	1.4	1.8	2.2
Directivity (dB) Min	55
Return Loss (dB) Min	55
Wavelength Dependent Loss (dB) Max	1.0
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85
Optical input power Max	300mW
Fiber length	1.0m or as your requirement
Splitter type	Insert Type/Box type/Mini PLC splitter
Connector Type	SC UPC,SC APC
Polishing type	UPC, APC
Fiber Type	Single-mode, Muti-mode
Note: All above specifications do not include connector loss and adaptor loss.

Application

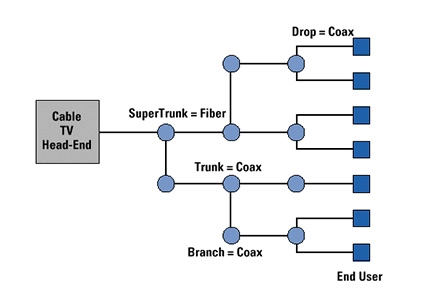

CATV-networks
