SC/APC Optical Fiber Fast Connectors

Product Overview

SC/APC quick connector is a kind of optical fiber communicationHigh performance and easy to install on siteThe solution combines the versatility of SC connectors with the low reflection of the APC end face, making it particularly suitable for the needs ofRapid deployment, high return loss controlThe

Product Model:SC/APC
Update Time:2025-05-07
Fiber Type:
Manufacturer Type:
Fiber Core Count:
Outer Jacket:
Standard:
Port Type:
Polishing Type:
Adapter Type:
Splitter Type:Insert Type/Box type/Mini PLC splitter
Connector Type:APC/UPC

SC/APC Optical Fiber Fast ConnectorsDetailed Introduction

Online Message

SC/APC quick connector is a kind of optical fiber communicationSMoothing: antialiased; font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Ubuntu, "Helvetica Neue", Helvetica, Arial, "PingFang SC", "Hiragino Sans GB", "Microsoft YaHei UI", "Microsoft YaHei", "Source Han Sans CN", sans-serif, "Apple Color Emoji", "Segoe UI Emoji"; liST-STyle: none; margin: 0px; scrollbar-width: none; font-weight: 600;">High performance and easy to install on siteThe solution combines the versatility of SC connectors with the low reflection of the APC end face, making it particularly suitable for the needs ofRapid deployment, high return loss controlThe following is the detailed description and characteristics of the split-point analysis:

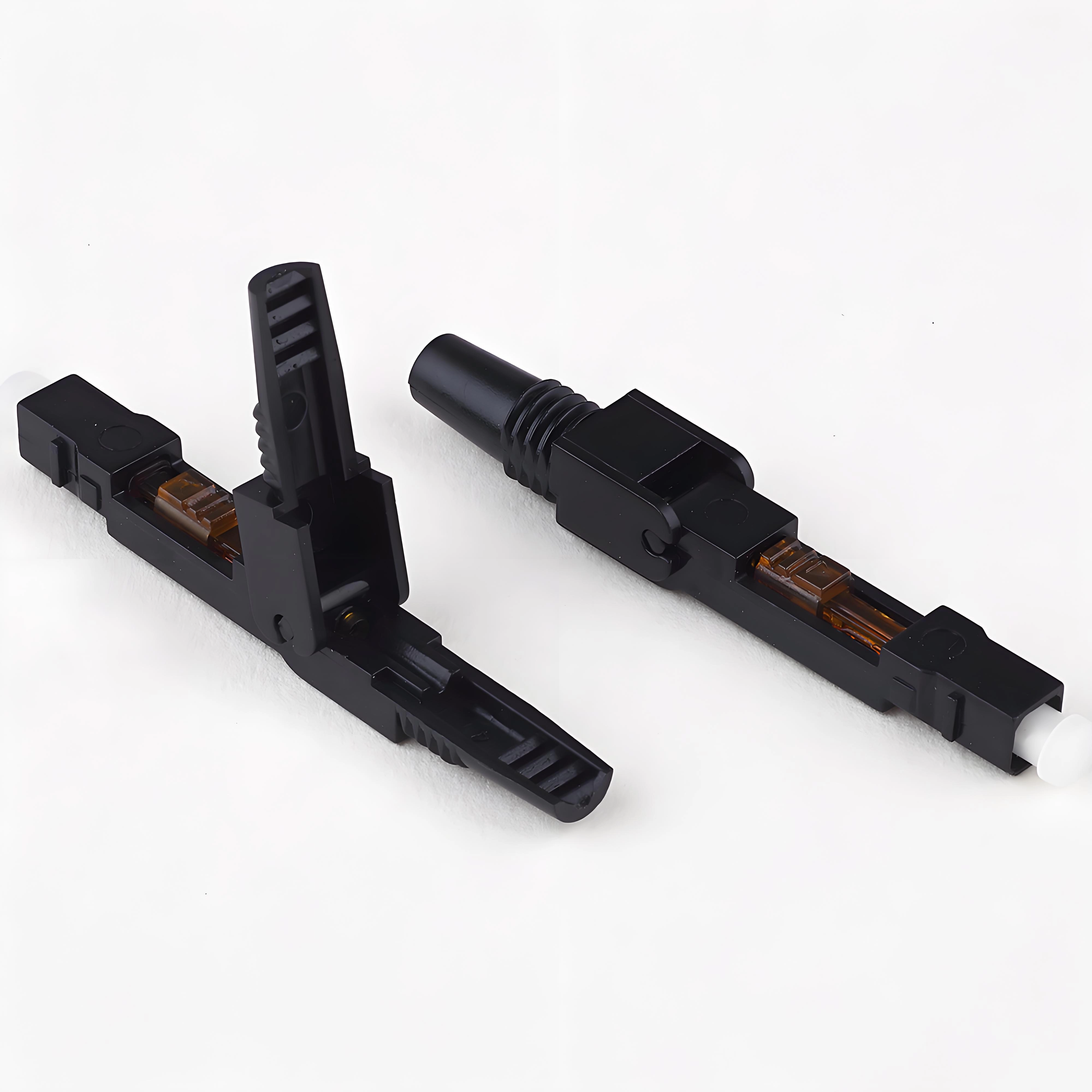

SC/APC Optical Fiber Fast Connectors(pic1)




Product parameters

type

Technical parameters:

Environmental parameters:

Low insertion loss

embedded

Fiber diameter:125um-900um

Operating temperature:-40degree-85degree

high return loss


Interpolation loss:THE0.3dBAlright. 0.5dB

Temperature cycle:IL值改变0.3dB

High reliability and high stability


Return loss:RL40dB

Vibration:THEvalue change0.3dB

Data can be customized according to customer requirements



Flood disaster:THEvalue change0.3dB




Repeatability:THEvalue change0.3dB





Core Structure and Technical Characteristics of SC/APC Fiber Fast Connectors

  1. SC connector design
    • Push-pull latch: Support fast plug and unplug, no need to rotate tools, suitable for frequent operation.
    • Square shellCompact size (2.5mm wide), compatible with standard SC adapters.
  2. APC end face process
    • 8 ° inclined end face: Eliminate the reflection of the fiber end face by angular polishing, and the return loss is ≥ 60dB (single mode).
    • Low reflection advantageAvoid signal reflection interference, suitable for long-distance transmission or high-sensitivity equipment (such as CATV systems).
  3. Quick connector design
    • pre-installed componentsFactory-installed optical fibers, sleeves, and glues only need to be cut, cleaned, inserted, and cured on site.

    • Tool simplificationNo special grinders or complex tools are required, relying on simple fixtures and curing equipment.




Core Advantages of SC/APC Fiber Fast Connectors

  1. rapid deployment capability
    • 70% reduction in installation timeTraditional connectors take 30 minutes, while quick connectors only take 5-10 minutes.
    • Field termination flexibilitySupport scenarios such as fiber-to-the-home (FTTH) and security monitoring that require instant connection.
  2. High return loss control
    • APC end face advantageReduce reflection interference and improve system stability, especially suitable for:
      • Long-distance transmission (such as metropolitan area network)

      • Highly reflective sensitive equipment (such as lasers, optical amplifiers)

      • CATV system (to avoid signal crosstalk)

  3. Environmental adaptability
    • Wide temperature working range: Supports -40 ° C to + 85 ° C, suitable for outdoor and industrial environments.

    • Anti-vibration designMetal sleeve enhances structural stability and is suitable for industrial control scenarios.

Typical Application Scenarios of SC/APC Fiber Fast Connectors

  1. Fiber to the Home (FTTH)
    • Quick on-site termination of household optical cables to reduce construction time.
  2. Data Center Migration
    • Temporary jumper deployment or quick rack-to-rack connection.
  3. Security monitoring system
    • Fiber optic jump connection between camera and switch simplifies installation process.
  4. Cable Television Network (CATV)
    • APC end face reduces reflection interference and improves signal quality.
