Product Overview
SC/APC Fiber Fast Connector - Technical Specifications Specifications Insertion Loss ≤ 0.3dB Return Loss ≥ 40dB
| Insertion Loss | ≤ 0.3dB | Return Loss | ≥ 40dB |
| Fiber Diameter | 125μm - 900μm | Operating Temperature | -40 to +85°C |
| Interpolation Loss | ≤ 0.5dB | Temperature Cycle | IL Change ≤ 0.3dB |
| Repeatability | IL Change ≤ 0.3dB | Vibration | IL Change ≤ 0.3dB |
| Environmental Adaptability | Field-tested | Customization | Available per requirement |

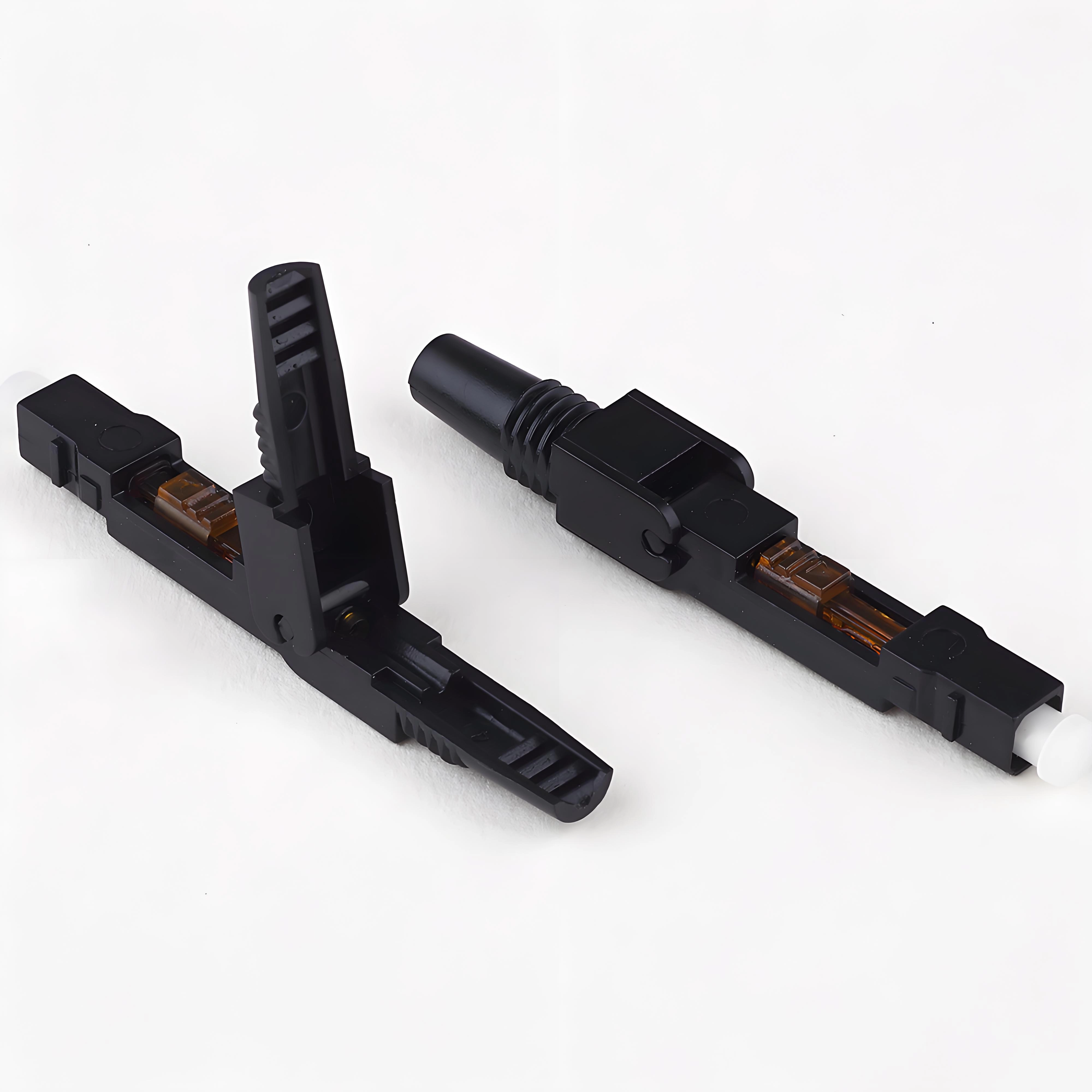

The SC/APC fast connector offers a field-installable solution that combines high performance, low reflection APC technology, and tool-free quick assembly. Ideal for rapid deployments and high return loss control.
Push-Pull SC Design: Quick install with square shell housing.
8° APC Polished End: Minimizes back reflection, RL ≥ 60dB.
Tool-Free Assembly: Requires no fusion splicer or polishing tools.
Pre-embedded Fiber: Simplifies on-site termination and reduces install time.
Reliable & Stable: Tested for vibration, temperature cycling, and flooding conditions.
Wide Compatibility: Works in CATV, FTTH, security, and data networks.
FTTH: Home terminal drop fiber connections.
Data Center Migration: Rack interconnects and temporary patching.
Security Monitoring: Optical connections for surveillance infrastructure.
CATV: Reflection-resistant signal delivery for broadcast networks.
