GYTZA Outdoor Stranded Loose Tube Flame retardant Optic Fiber Cable G652D/G655

Product Overview

*The data is too long. View in landscape mode on mobile phoneoptical propertiesG.652G.65550 / 125μm62.5/125 μmAttenuation (+20℃)@850nm3.0 dB/km3.0 dB/[email protected] dB/km1.0 dB/[email protected] dB/km0.40 dB/[email protected] dB/km0.23dB/kmBandwidth (Class A)@850nm500 MHz·km200 MHz·km@1300nm1000 MHz·km600 MHz

Inquiry Now

Online Message DataDownload

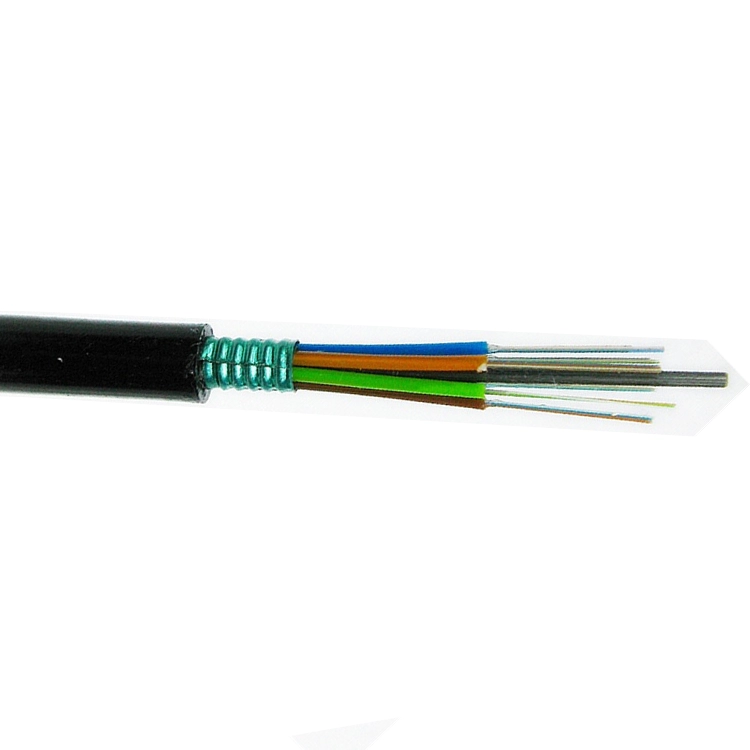

GYTZA Outdoor Stranded Loose Tube Flame retardant Optic Fiber Cable G652D/G655(pic1)

*The data is too long. View in landscape mode on mobile phone

optical properties

		G.652	G.655	50 / 125μm	62.5/125 μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40℃ ~+70℃

Technical parameters

Model	Fiber cores	Tubes	Fillers	Diameter (mm)	Weight (kgs)	Tensile (N)		Crush (N)		Bending radius
						Long term	Short term	Long term	Short term	Static/ Dynamic
GYTZA-2~6F	2~6	1	4	9.7	135	600	1500	300	1000	10D/20D
GYTZA-8~12F	8~12	2	3	9.7	135	600	1500	300	1000	10D/20D
GYTZA-14~18F	14~18	3	2	9.7	135	600	1500	300	1000	10D/20D
GYTZA-20~24F	20~24	4	1	9.7	135	600	1500	300	1000	10D/20D
GYTZA-26~30F	26~30	5		9.7	135	600	1500	300	1000	10D/20D
GYTZA-32~36F	32~36	6		10.2	147	1000	3000	300	1000	10D/20D
GYTZA-38~48F	38~48	4	1	11.2	167	1000	3000	300	1000	10D/20D
GYTZA-50~60F	50~60	5		11.2	167	1000	3000	300	1000	10D/20D
GYTZA-62~72F	62~72	6		12.2	189	1000	3000	300	1000	10D/20D
GYTZA-74~84F	74~84	7	1	13.8	231	1000	3000	300	1000	10D/20D
GYTZA-86~96F	86~96	8		13.8	231	1000	3000	300	1000	10D/20D
GYTZA-98~108F	98~108	9	1	15.2	271	1000	3000	300	1000	10D/20D
GYTZA-110~120F	110~120	10		15.2	271	1000	3000	300	1000	10D/20D
GYTZA-122~132F	122~132	11	1	17.1	327	1000	3000	300	1000	10D/20D
GYTZA-134~144F	134~144	12		17.1	327	1000	3000	300	1000	10D/20D

GYTZA Stranded Loose Tube Flame retardant Outdoor optic fiber cable G652D product description

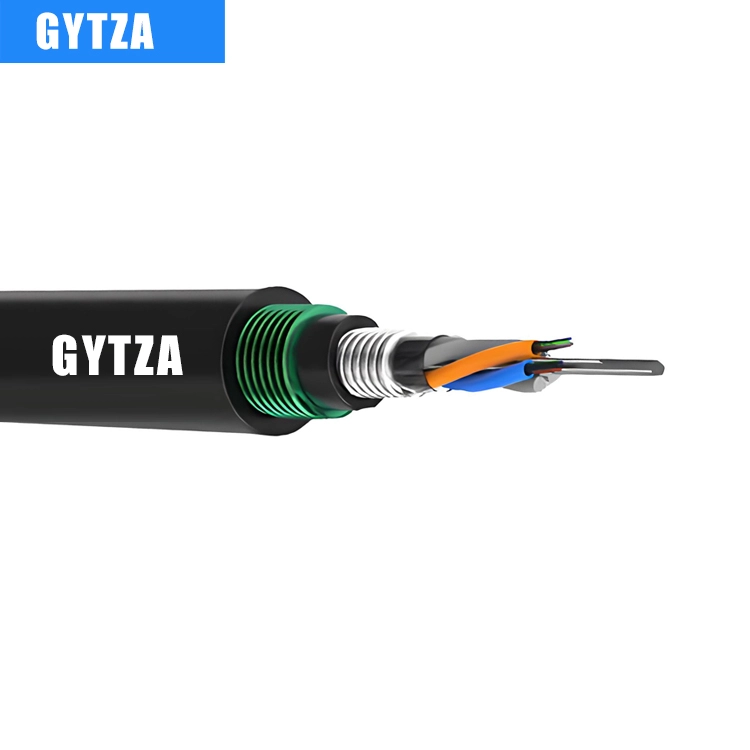

GYTZA type optical cable places 250 μm optical fiber in a loose sleeve made of high modulus plastic, the sleeve is filled with waterproof filler, the center is steel wire as a metal reinforcement, and the high-core cable is sometimes coated with PE. The sleeve and filler are twisted around the reinforcement to form a compact circular cable core. The cable core is wrapped with APL, and the APL is filled with waterproof filler. Finally, the cable is sheathed with flame retardant PE.

Product characteristics of GYTZA Stranded Loose Tube Flame retardant Outdoor optic fiber Cable G652D

Good mechanical properties, good high temperature resistance
High-strength loose casing, resistant to hydrolysis
Special casing fillers play a key role in protecting optical fibers
Specially designed compact structure prevents loose casing shrinkage
Flame retardant outer sheath to protect optical fibers from fire
Aluminum polyethylene laminate as a moisture barrier

What kind of optical fiber core do we use?

Fiber core types : G652 ,G657 ,

Fiber Brand : YOFC , Fiber Home , Corning , J-fiber

What kind of sheath material do we use?

Sheath material : Sheath material can be customized .

1 : Fbier cable : PE , include : MDPE ,HDPE , (New PE Material , NO Recycled)

2 : FTTH and fiber patch cord : LZSH .

What type of steel wire and steel strip should be used?

Galvnized Steel Wire , Phosphated Steel Wire , Aramid Yarn

GYTZA Outdoor Stranded Loose Tube Flame retardant Optic Fiber Cable G652D/G655(pic2)

GYTZA Outdoor Stranded Loose Tube Flame retardant Optic Fiber Cable G652D/G655(pic3)

GYTZA Outdoor Stranded Loose Tube Flame retardant Optic Fiber Cable G652D/G655(pic4)
