Product Overview
Verification Of ConformityApplications: Replacement of existing ground wires and reconstruction of old lines. Applicable to low-grade lines, such as GJ50/70/90 and etc. Main Features: Small cable diameter, light weight, low add
Applications:
Replacement of existing ground wires and reconstruction of old lines.
Applicable to low-grade lines, such as GJ50/70/90 and etc.
Main Features:
Small cable diameter, light weight, low additional load to the tower;
The steel tube locates at the center of the cable, no second mechanical fatigue damage.
Low resistance to side pressure, torsion and tensile (single layer).
| Standard | Description |
|---|---|
| ITU-TG.652 | Characteristics of a single mode optical fiber. |
| ITU-TG.655 | Characteristics of a non-zero dispersion -shifted single mode fibers optical. |
| EIA/TIA598 B | Col code of fiber optic cables. |
| IEC 60794-4-10 | Aerial optical cables along electrical power lines-family specification for OPGW. |
| IEC 60794-1-2 | Optical fiber cables -part test procedures. |
| IEEE1138-2009 | IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines. |
| IEC 61232 | Aluminum -Clad steel wire for electrical purposes. |
| IEC60104 | Aluminum magnesium silicon alloy wire for overhead line conductors. |
| IEC 61089 | Round wire concentric lay overhead electrical stranded conductors. |
Colors -12 Chromatography:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
|---|---|---|---|---|---|
| OPGW-32 (40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-42 (54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-42 (43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-54 (55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-61 (73.7;17.5) | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-61 (55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-68 (80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-75 (54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
| OPGW-76 (54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
|---|---|---|---|---|---|
| OPGW-96 (121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127 (141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127 (77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145 (121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163 (138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163 (99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183 (109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183 (118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
Remarks:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Cable structure drawing & diameter
D, Tensile strength
F, Short circuit capacity

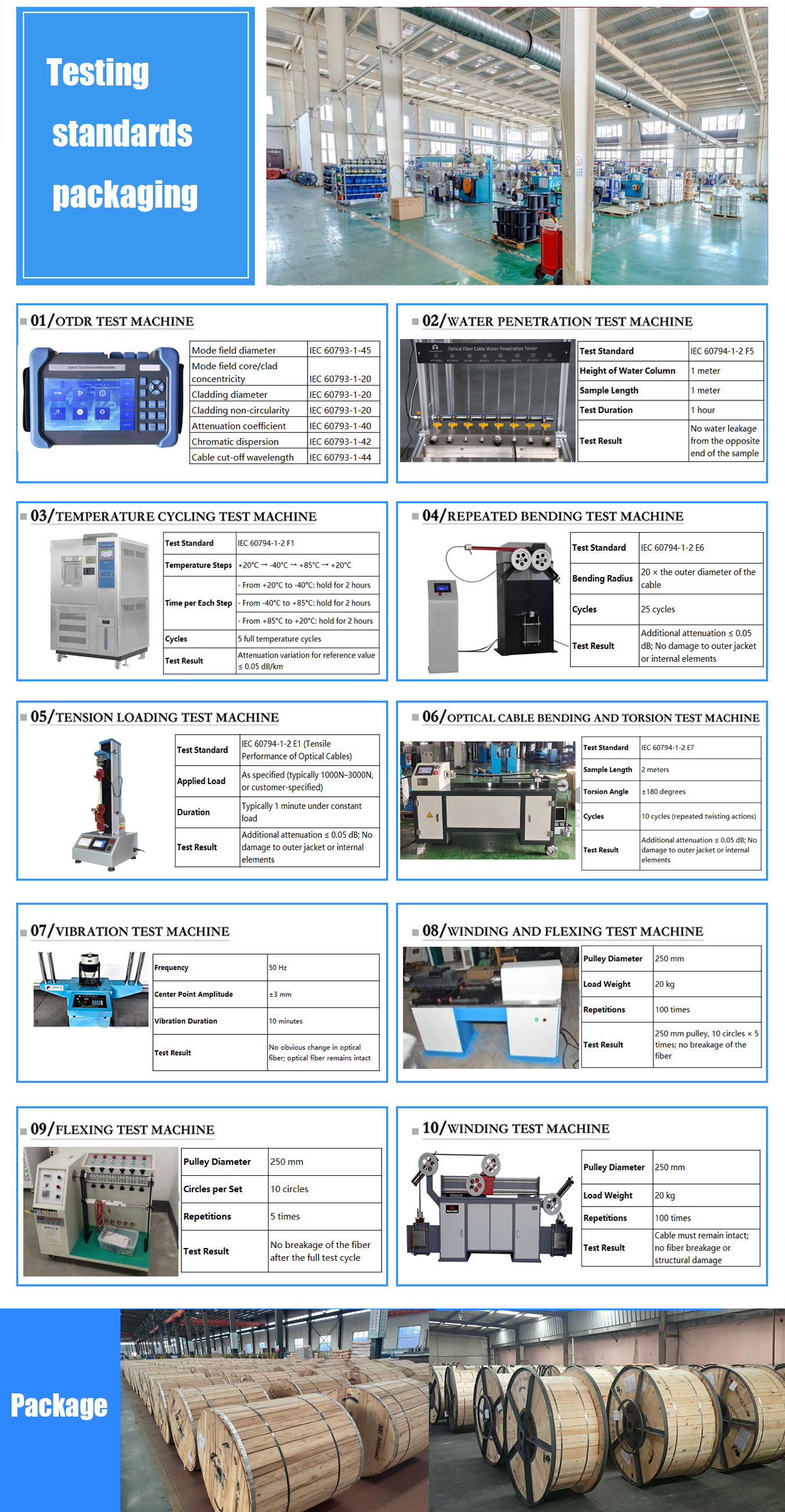

Type test may be waived by submitting maker’s certificate of the similar product performed in an internationally acknowledged independent test organization or laboratory. If type test should be performed, it will be carried out according to an extra type test procedure reached to an agreement between purchaser and manufacturer.
The optical attenuation coefficient on all production cable lengths is measured according to IEC 60793-1-C1C (Back-scattering technique, OTDR). Standard single-mode fibers are measured at 1310nm and at 1550nm. Non-zero dispersion shifted single–mode (NZDS) fibers are measured at 1550nm.
Factory acceptance test is carried out on two samples per order in the presence of the customer or his representative. The requirements for quality characteristics are determined by relevant standards and agreed quality plans.
Fiber core types : G652 ,G657 ,
Fiber Brand : YOFC , Fiber Home , Corning , J-fiber
Sheath material : Sheath material can be customized .
1 : Fbier cable : PE , include : MDPE ,HDPE , (New PE Material , NO Recycled)
2 : FTTH and fiber patch cord : LZSH .
Galvnized Steel Wire , Phosphated Steel Wire , Aramid Yarn
