Product Overview
The structure of MGXTSWV optical cable is to put 250 μm optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The loose tube is vertically wrapped with a layer of double-sided plastic-coated steel strip (PSP), and a water-blocking material i

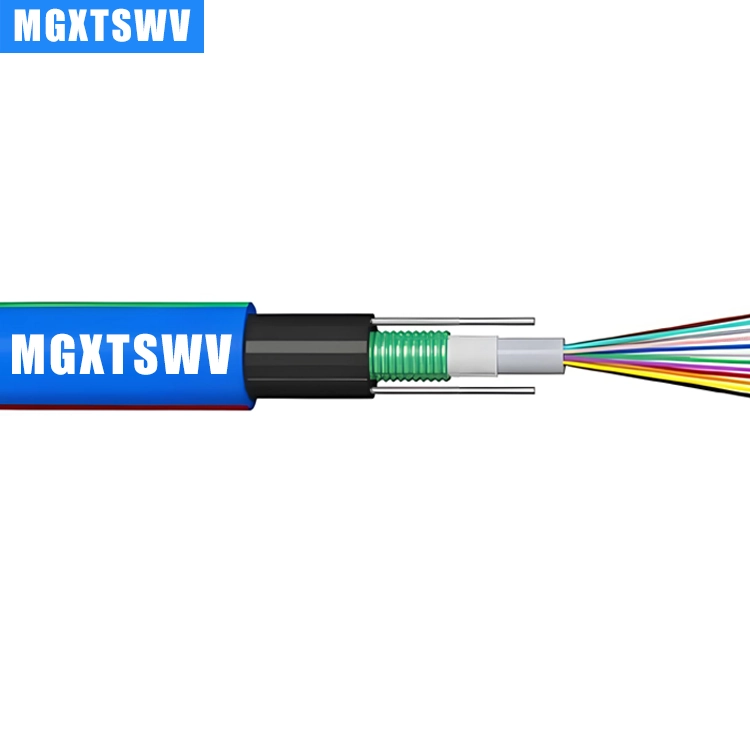

The structure of MGXTSWV optical cable is to put 250 μm optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The loose tube is vertically wrapped with a layer of double-sided plastic-coated steel strip (PSP), and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water-blocking of the optical cable. Two parallel steel wires are placed on both sides to extrude the polyethylene inner sheath, and then a layer of polyethylene outer sheath is squeezed outside the inner sheath to form a cable.
Product features:
The use of blue flame retardant PVC for secondary sheathing makes the cable have a good flame retardant effect.
Standard:
The MGXTWV cable follows MT386-1995 Test Methods and Judgment Rules for Flame Retardancy of Flame Retardant Cables for Coal Mines.
Optical properties:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|---|---|---|---|---|---|
| Attenuation (+ 20 ℃) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850 | ≥500MHZ·km | ≥500MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable cutoff wavelength | ≤1260nm | ≤1480nm | |||
Structural parameters:
| 光缆型号 Cable Type | 光纤数 Fiber Count | 光缆直径 (mm) | 光缆重量 (Kg/km) | 允许拉伸力 (N) 长期/短期 | 允许压扁力 (N/100m) 长期/短期 | 弯曲半径 (mm) 静态/动态 |
|---|---|---|---|---|---|---|
| MGXTSWV-2～12 | 2～12 | 11 | 130 | 500/1000 | 500/1500 | 15D/30D |
Storage and operating temperature: -40 ° C to + 70 ° C
