Product Overview

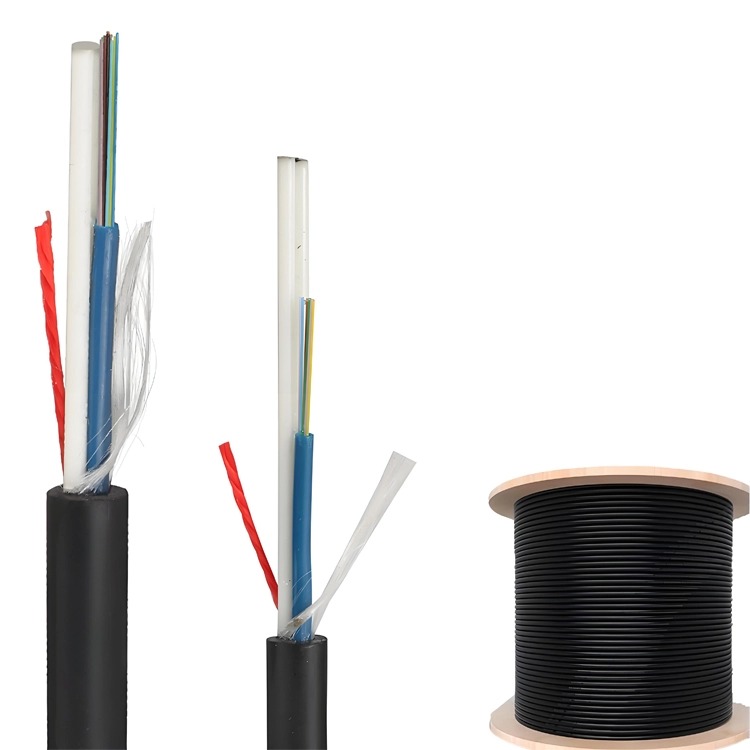

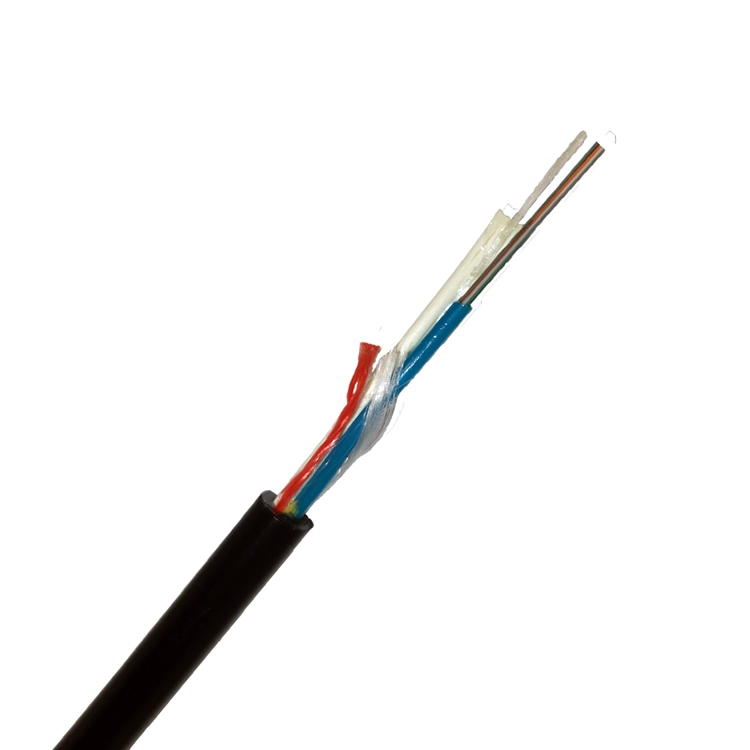

Optic CableExcellent tensile strength and crush-resistance.Compact, easy-to-access design allows for easy installation and handling.Proven all-dielectric loose tube construction Immune to electromagnetic fields.Optimized for fiber counts of 4, 6, 8, 12and 24 for minimizing deployment costs.Outer Jac
Excellent tensile strength and crush-resistance.
Compact, easy-to-access design allows for easy installation and handling.

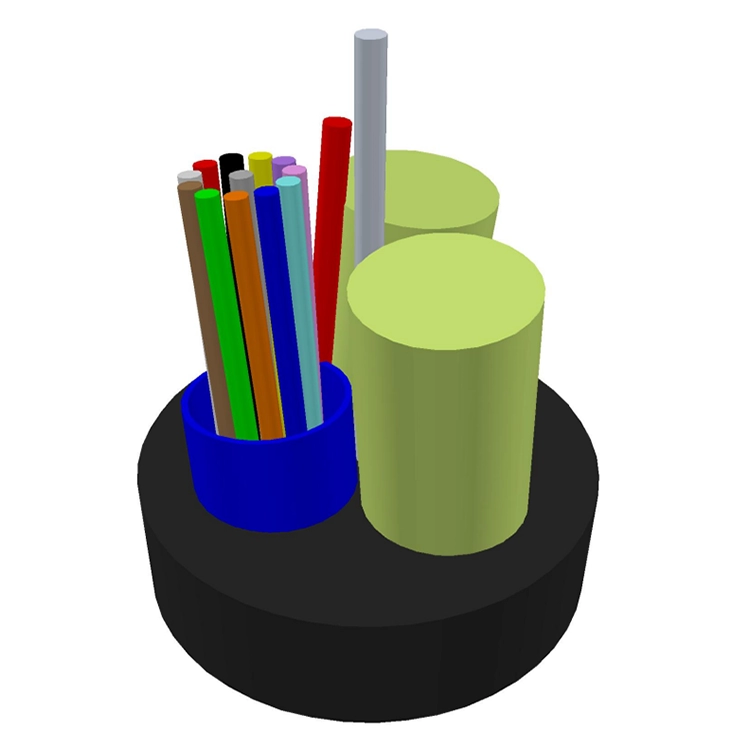

Proven all-dielectric loose tube construction Immune to electromagnetic fields.
Optimized for fiber counts of 4, 6, 8, 12and 24 for minimizing deployment costs.
Outer Jacket protects cable from ultraviolet radiation

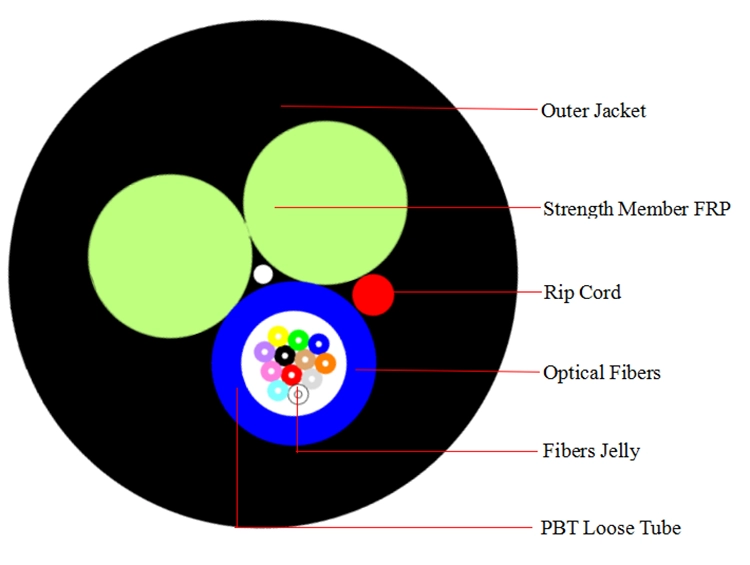

| Fiber Count | 1-12 | 16-24 | |||
|---|---|---|---|---|---|
| Span | 80 Meters | 120 Meters | 80 Meters | 120 Meters | |
| Loose Tube | Number | 1 | |||
| Material | PBT | ||||
| Strength Member | FRP Glass Fibers Stick | ||||
| Strength Member Diameter | 1.6mm | 2.0mm | 2.0mm | 2.5mm | |
| Outer Jacket | Material | HDPE | |||
| Color | Black or Other Colors | ||||
| Thickness(mm) | 1.0 ± 0.1mm | ||||
| Maximum Tensile Strength | 1200 N | 1500 N | 1200 N | 1500 N | |
| Maximum Crush Resistance | 2000 N/100mm | ||||
| Cable Diameter(mm) (±0.3) | 6.0 | 6.2 | 6.5 | 7.2 | |
| Net weight (kg/km) (±10%) | 32 | 38 | 40 | 55 | |
| Static Bending Radius | 10 D/mm | ||||
| Dynamic Bending Radius | 20 D/mm | ||||
| Operating temperature | -40℃ ~ +70℃ | ||||
| Store/Transport temperature | -40℃ ~ +70℃ | ||||
| Installation temperature | -10℃ ~ +60℃ | ||||
FIBER AND LOOSE BUFFER TUBE IDENTIFICATION
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube Color | White | |||||||||||
| NO. | 1 - 12 | |||||||||||
| Fiber Color | Blue | Orange | Green | Brown | Gary | White | Red | Black | Yellow | Violet | Pink | Aqua |
The Optical and Geometrical Performance of Single Mode Fiber
| Optical Fiber Type | Attenuation Coefficient (+20℃) | OFL Bandwidth | Numerical value | Cable cut-off wavelength | |||||
|---|---|---|---|---|---|---|---|---|---|
| @850nm | @1300nm | @1310nm | @1550nm | @1625nm | @850nm | @1300nm | |||
| G.652D | / | / | ≤0.36 dB/km | ≤0.22 dB/km | / | / | / | / | ≤1260nm |
| G.655C | / | / | / | ≤0.22 dB/km | ≤0.24 dB/km | / | / | / | ≤1450nm |
| G.657A | / | / | ≤0.36 dB/km | ≤0.22 dB/km | ≤0.23 dB/km | / | / | / | ≤1260nm |
| 50 / 125μm | ≤3.0 dB/km | ≤1.0 dB/km | / | / | / | ≥500 MHz·km | ≥500 MHz·km | 0.200±0.015 NA | / |
| 62.5/125 μm | ≤3.0 dB/km | ≤1.0 dB/km | / | / | / | ≥200 MHz·km | ≥500 MHz·km | 0.275±0.015 NA | / |
