Product Overview
APC-APC Single Mode (OS2)SpecificationsConnector AUS Conec MTP® Elite Female
APC-APC Single Mode (OS2)
| Specifications | |||
|---|---|---|---|

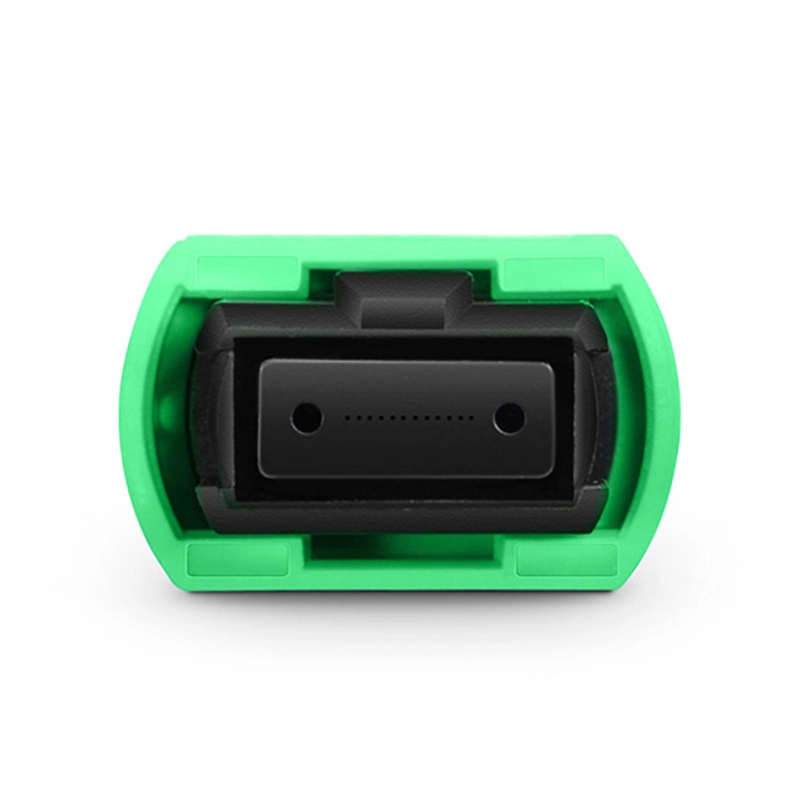

| Connector A | US Conec MTP® Elite Female (Pinless) | Connector B | US Conec MTP® Elite Female (Pinless) |
| Polish Type | APC to APC | Glass Fiber | Corning SMF-28® Ultra Fiber |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers | Polarity | Type B |
| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength | 80/240N (Long/Short Term) |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -40 to 85°C (-40 to 185°F) |
UPC-UPC Multimode (OM4)
| Specifications | |||
|---|---|---|---|
| Connector A | US Conec MTP® Elite Female (Pinless) | Connector B | US Conec MTP® Elite Female (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber | Corning ClearCurve® Multimode Fiber |
| Fiber Mode | OM4 50 / 125μm | Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers | Polarity | Type B |
| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength | 80/240N (Long/Short Term) |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -40 to 85°C (-40 to 185°F) |

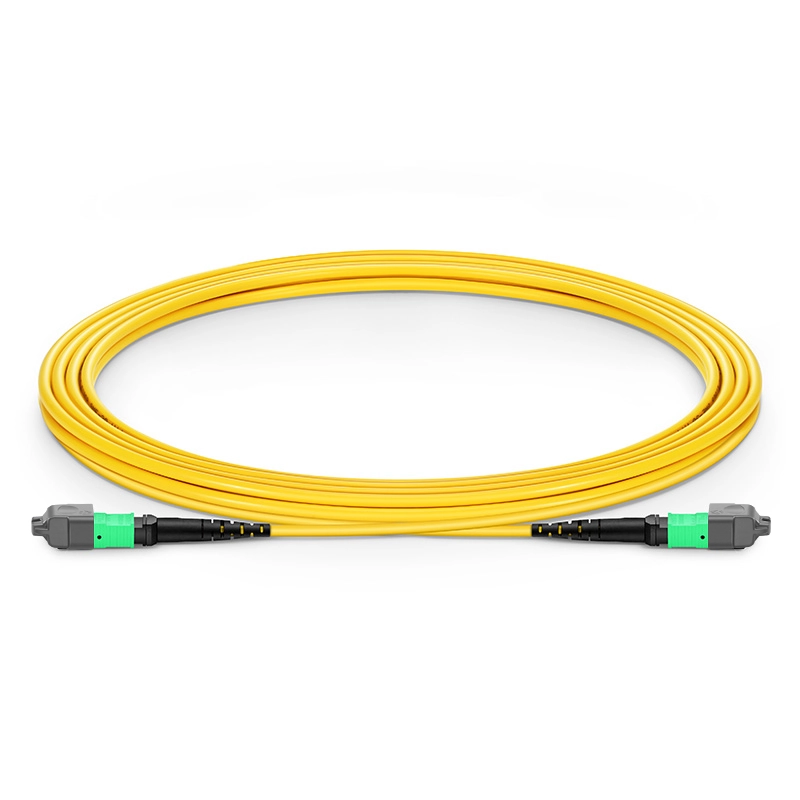

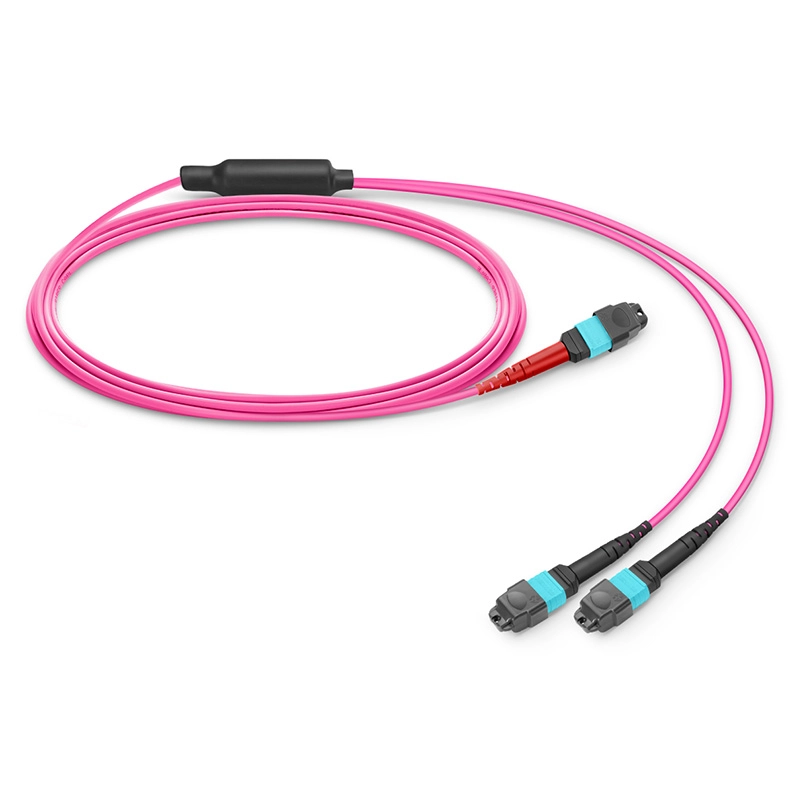

MTP to MTP fiber patch cords are designed for high-density fiber connections in data centers and telecom networks. Available in multimode and singlemode versions, they support high-speed applications such as 40G, 100G, and 400G Ethernet. With precision MTP connectors and low-loss components, they provide stable performance and easy integration with MTP/MPO systems.
Available in multimode (OM3. OM4. OM5) and singlemode (G.652D, G.657.A) fiber options.
Supports high-speed transmission for 40G, 100G, and 400G networks.
Uses high-precision MTP connectors for reliable connection and efficient space utilization.
Low insertion loss and high return loss for improved signal performance.
Custom cable lengths and jacket materials (PVC, LSZH, OFNP) available.
Multimode: OM3. OM4. OM5
Singlemode: G.652D, G.657.A
MTP/MPO, available in 8-, 12-, and 24-fiber configurations
PVC, LSZH, OFNP
Data centers and server rooms
40G/100G/400G Ethernet networks
Patch panels, switches, routers, and other fiber equipment
High-density design for space-saving installation
Easy integration with existing MTP/MPO systems
Flexible options for different network environments
Online Message
APC-APC Single Mode (OS2)SpecificationsConnector AUS Conec MTP® Elite Female
Details
MPO-MPO fiber optic patch cord female multi-mode 8-core 12-core 16-core 24-core 40G/100G/200G/400GMPO-MPO fiber patch cord technical parameters Fiber Count8/12/16/24/32/48 FibersFiber ModeG657A1/OM3/OM4/OM5Polish TypeUPC/APCPolarityA/B/C or CustomizedConnector GenderMale/FemaleCable ColorSM: YellowO
Details

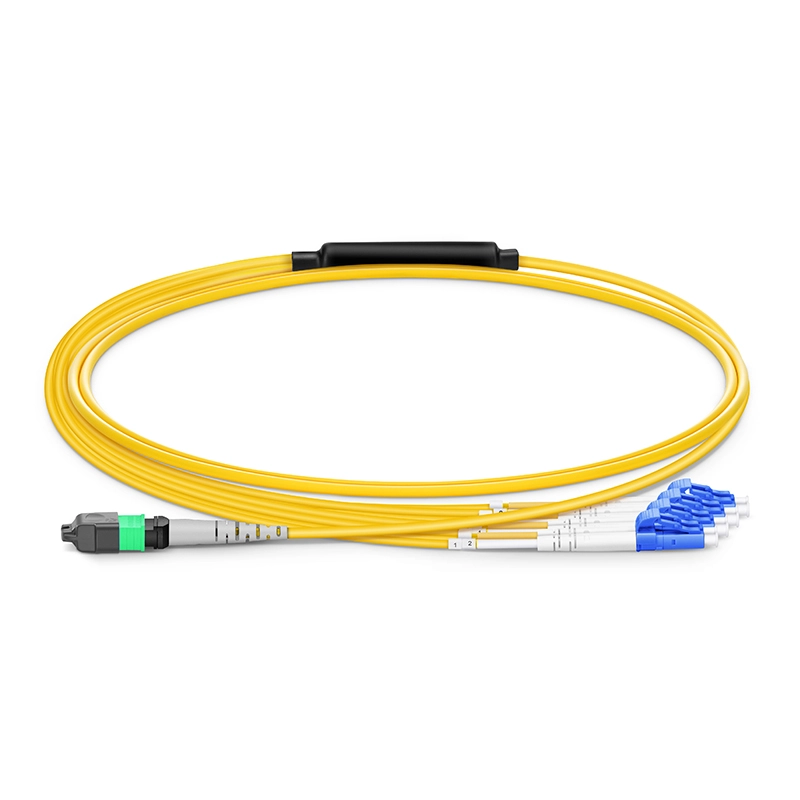

MPO fiber patch cord technical parameters Connector AMTP/MPOConnector BLC SX / LC DX / LC UnibootFiber Count8/12/16/24Fibers or CustomizedFiber ModeG657A1/OM3/OM4/OM5Polish TypeUPC/APCPolarityA/B/C or CustomizedConnector GenderMale/FemaleCable ColorSM: YellowOM3: AquaOM4:VioletOM5： Lime GreenCable O
