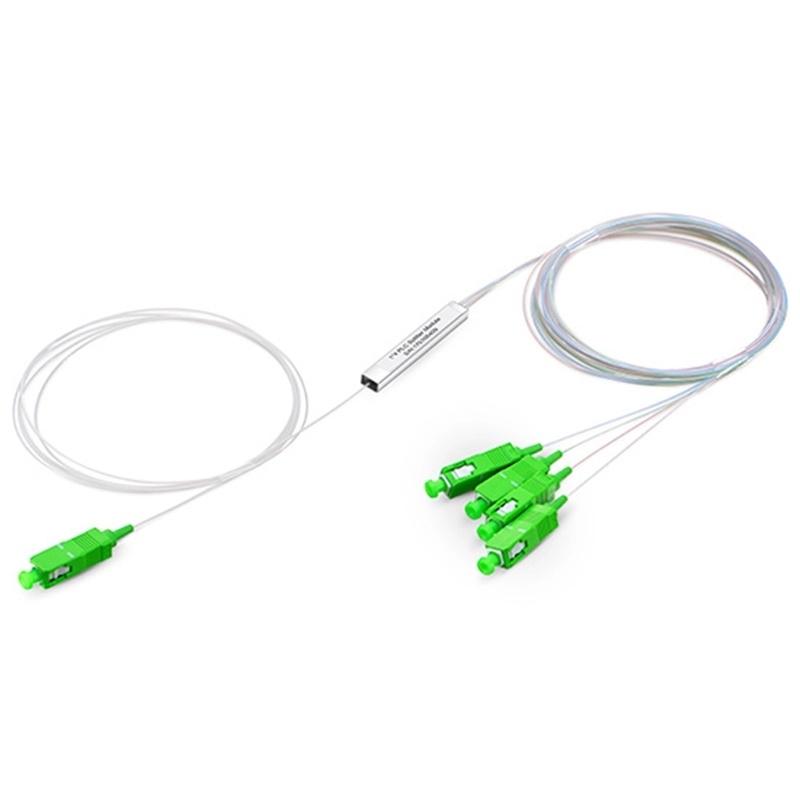

1 * 4 PLC fiber optic splitter, mini module splitter

PLC 1x4 Fiber Optic Splitter Mini Module Splitter Product Details and FeaturesPLC 1x4 Fiber Optic Splitter Mini Module Splitter Product Overview1x4 PLC Fiber Splitter It is an optical splitter based on planar optical waveguide (PLC) technology, which is used to evenly distribute a single input optic

:1 * 4 PLC fiber optic splitter
:2025-04-08
:SM
:2-288 Cores
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

1 * 4 PLC fiber optic splitter, mini module splitter

SMoothing: antialiased; font-family: PingFang-SC-Regular; liST-STyle: none; margin-top: 0px; margin-bottom: 0px; scrollbar-width: none; font-size: 15px; line-height: 1.7; color: rgb(6, 7, 31); text-wrap-mode: wrap; background-color: rgb(253, 253, 254);">

PLC 1x4 fiber optic Splitter Mini Module Splitter Product Details and Features


PLC 1x4 Fiber Optic Splitter Mini Module Splitter Product Overview


1x4 PLC Fiber Splitter It is an optical splitter based on planar optical waveguide (PLC) technology, which is used to evenly distribute a single input optical signal to four output ports. The product adopts an integrated optical design with low loss, high uniformity and high reliability. It is suitable for applications such as fiber optic communication, fiber sensing and fiber to the home (FTTH), especially applications that require multi-port signal distribution.

II.PLC 1x4 Fiber Optic Splitter Mini Module Splitter Core Features

  1. Precision spectroscopy
    • The PLC chip is used to ensure that the four-way output optical power difference (uniformity) is less than or equal to 0.6dB, and the signal distribution is stable.
  2. Low insertion loss
    • Typical insertion loss: ≤ 7.3dB (including connectors), optimizing transmission efficiency.
  3. Wide wavelength compatibility
    • Operating wavelength range: 1260-1650nm, suitable for single-mode fiber (G.652D/G.657A, etc.).
  4. Compact and durable design

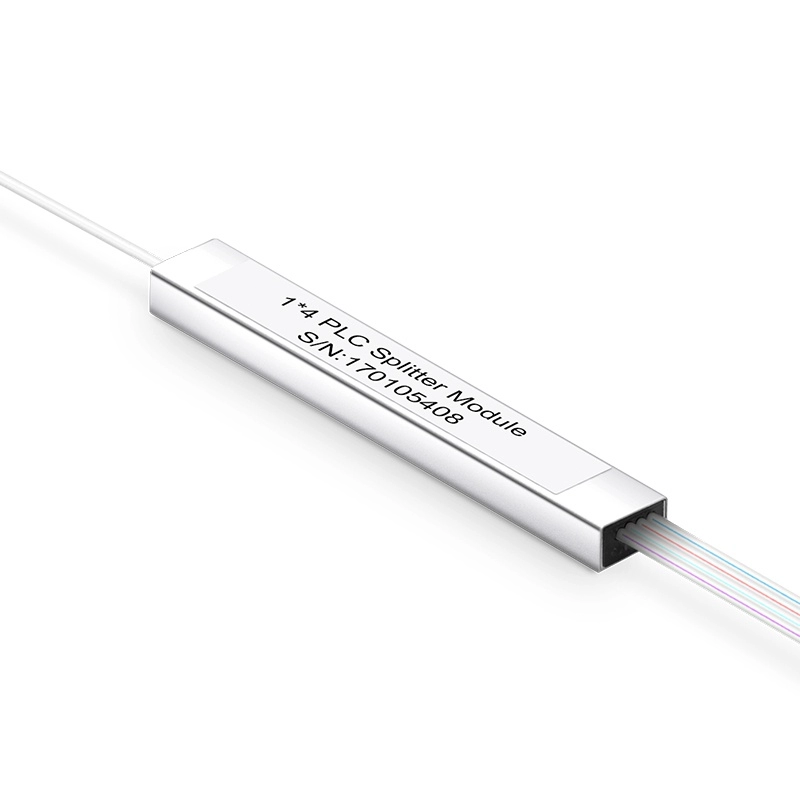

    • packageMiniaturized package (e.g. ABS plastic box or metal tube protection) for easy installation.

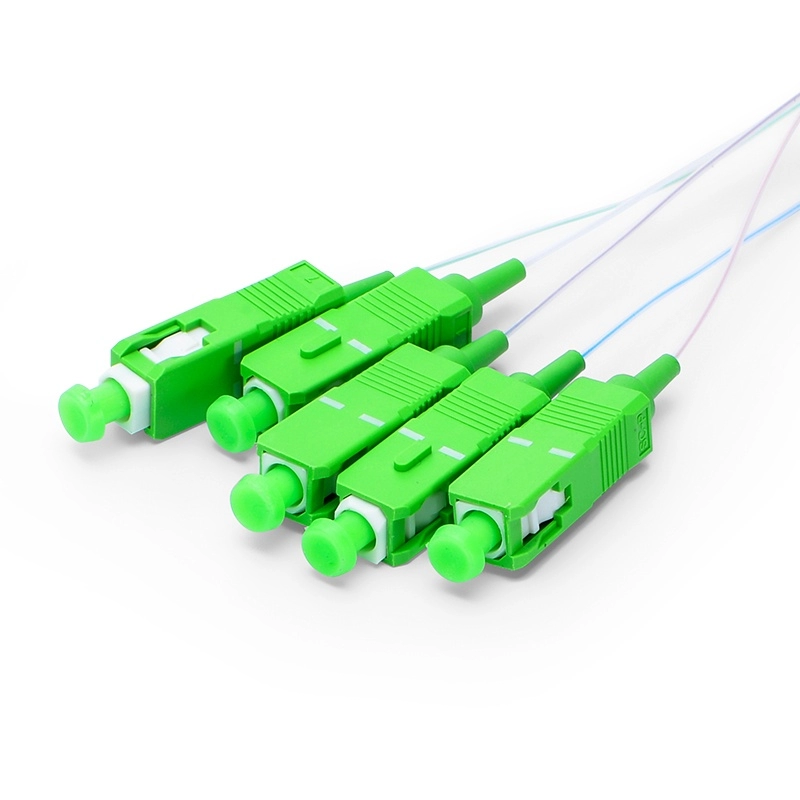

    • connectorSupport SC/APC, LC/APC, FC/APC and other interfaces, suitable for different devices.
  5. Environmental adaptability
    • Operating temperature: -40 ° C to + 85 ° C, suitable for indoor and outdoor complex environments.
    • Compliant with standards: Telcordia GR-1221, RoHS, CE certification.

III.PLC 1x4 Fiber Optic Splitter Mini Module Splitter Technical Parameters


参数典型值
shunt ratio1x4
Insertion loss (including connector)≤7.3dB
Uniformity (four-way maximum difference)≤0.6dB
return loss≥55dB
working wavelength1260-1650nm
Fiber TypeSMF (single mode, 9/125 μm)
operating temperature-40℃~+85℃
Package sizeBy package type (e.g. 50x8x4mm)


IV.PLC 1x4 Fiber Optic Splitter Mini Module Splitter Typical Application Scenarios

  1. ftth networkSingle fiber is divided into four households to reduce the amount of backbone fiber.
  2. Data CenterSignal shunt between server and switch to support redundant backup.
  3. Optical fiber sensingMulti-point signal acquisition in distributed temperature/strain monitoring.
  4. security monitoring: Single video signal is divided into multiple monitoring end points.

V. Summary of advantages

  • cost-effectivenessPLC technology is mass-produced, and the cost is lower than that of mechanical beam splitters.
  • Flexible expansionSupport cascading or parallel connection to build complex optical networks.
  • high reliabilityPassive design, no electromagnetic interference, long lifespan.

1x4 PLC Fiber Splitter Through PLC technology implementation of efficient and uniform signal distribution, combined with compact packaging and wide temperature adaptability, it provides a stable solution for scenarios requiring multiple optical signal outputs.


Specifications

Package Style
Mini Module
Configuration Type
1x 4
Fiber Type
G.657A1
Operating Wavelength
1260~1650nm
Connector Type
SC/APC
Split Ratio
Symmetrical
Input/Output Fiber Diameter
900μm
Input/Output Fiber Length
1.5m
Insertion Loss
≤ 7.4dB
Insertion Loss Uniformity
≤ 0.6dB
Return Loss Uniformity
≥55dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.2dB
Temperature Dependent Loss
≤ 0.5dB
Wavelength Dependent Loss
≤ 0.3dB
Fiber Mode
Singlemode
Steel Tube Dimensions (HxWxD)
0.16"x1.97"x0.28" (4x50x7mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
