Horizontal Type Fiber optic Splice Closure 16-core connector box + fast connect

Horizontal fiber optic splicing box 16-core splicing box + quick connection Is a kind ofTransverse layout of optical fiber fusion protection equipment, specifically forHigh density optical network deploymentDesign.Name (Name)MaterialSizeColor (Color)Weight (kg)Product capacity (capacity)Packaging (P

:2025-04-25
:SM
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

Horizontal Type Fiber optic Splice Closure 16-core connector box + fast connect



Horizontal fiber optic splicing box 16-core splicing box + quick connection Is a kind ofTransverse layout of optical fiber fusion protection equipment, specifically forHigh density optical network deploymentDesign.



Name (Name)MaterialSizeColor (Color)Weight (kg)Product capacity (capacityPackaging (Packing)
splice boxPP+GF380*245*155mmblack4.516 cores (standard)Individual packaging, 4 pcs/large box

One.Horizontal fiber optic splice box 16-core splice box + quick connection product definition and core functions


Its core functions include:


Layered welding managementSupport multi-core cable welding, branching and wiring.

Compact space utilizationFlat design suitable for rack, wall hanging or underground pipe well installation.

Modular expansion: Expand port capacity by stacking or paralleling.

Environmental adaptability: Cover indoor/outdoor scenes, taking into account waterproof and impact resistance requirements.


II.Main technical features of horizontal fiber optic splice box 16-core splice box + fast connection


1. Physical structure and materials


landscape layout:

Advantages: Flat design (length-to-width ratio ≥2:1), easy to rack installation or side-by-side deployment.

Material: Engineering plastics (flame retardant UL94 V-0) or aluminum alloy (lightweight and corrosion resistant).


Size and capacity:

Standard type: 400mm long × 150mm wide × 80mm high, supporting 12-24 core optical cables.

Large capacity type: 600mm long × 200mm wide × 100mm high, supports 48-96 core optical cables.

Protection class IP67 (waterproof and dustproof) or IP65 (indoor high humidity environment).


2. Functional design

Layered fusion plate:

Independent tray: supports upper and lower layered fusion, suitable for ribbon optical cables (such as 24-core ribbon optical fibers).

Fiber tray space: bending radius ≥ 40mm, in line with TIA-568-C.3 standard.


Port Configuration:

Type: supports FC/SC/LC/ST adapters, compatible with MPO/MTP pre-termination.

Density: single box supports 12-48 ports, expandable to 96 ports (through parallel connection).


Intelligent Management:

Optional functions: LED status indicator, port label slot, fiber monitoring interface.


3. Environmental adaptability

operating temperature: -20 ° C to + 60 ° C (wide temperature models support -40 ° C to + 85 ° C).

anti-vibration: Compliant with IEC 60068-2-6 standard (sinusoidal vibration 5-500Hz).

flame retardancyUL94 V-0, compliant with IEC 60695-11-10 fire tests.


4. Installation and maintenance


Installation method:

Rack-mounted: compatible with 19-inch/ETSI racks, supports rail installation.

Wall-mounted: equipped with mounting holes, suitable for standard screw fixation.

Tube well type: lightweight design (weight ≤ 3kg), easy for underground operation.


activation mechanism:

Tool-free design: quick lock (opening time ≤ 5 seconds).

Sealing: silicone seal + stainless steel lock, reuse ≥ 500 times.


III. Horizontal fiber optic splice box 16-core splice box + fast-connect typical application scenarios


Data Center:

High-density fiber optic wiring in the rack (such as 40G/100G network).


Telecom room:

The fusion node between the trunk optical cable and the distribution optical cable.


FTTH access network:

The splice point between the corridor fiber distribution box and the home optical cable.


Industrial Control:

Sensor optical fiber link protection of automation equipment.


Security monitoring:

Welding protection of outdoor camera and transmission cable.







1. What is a horizontal type fiber optic splice closure?

Answer:
A horizontal type fiber optic splice closure is a protective device designed to house and secure fiber splices in straight-through and branch fiber optic cable connections. It is shaped like a cylinder and is ideal for aerial, duct, or direct burial installations.



2. How many fibers can the 16-core connector box support?

Answer:
The 16-core connector box can support up to 16 individual fiber connections, making it suitable for small to medium-scale fiber distribution projects such as FTTH, FTTB, or rural fiber networks.



3. What are the advantages of quick-connect fiber closures?

Answer:
Quick-connect fiber closures save installation time and reduce the need for specialized splicing tools. They are ideal for fast deployments, easy maintenance, and minimizing network downtime during installation or repair.



4. Is the 16-core horizontal splice closure suitable for outdoor environments?

Answer:
Yes, the closure is typically made with IP68-rated waterproof materials and UV-resistant plastic, ensuring excellent durability in harsh outdoor conditions like rain, humidity, and temperature fluctuations.



5. Can this closure be used with different types of fiber cables?

Answer:
Yes, this horizontal type splice closure is compatible with various fiber optic cable types, including single-mode, multi-mode, and drop cables. It supports both Loose Tube and ribbon fiber structures with standard cable diameters.





  • en您的姓名:

  • en联系电话:

  • en常用邮箱:

  • en留言内容:

  • Dome Types Fiber Optic Splice Closure

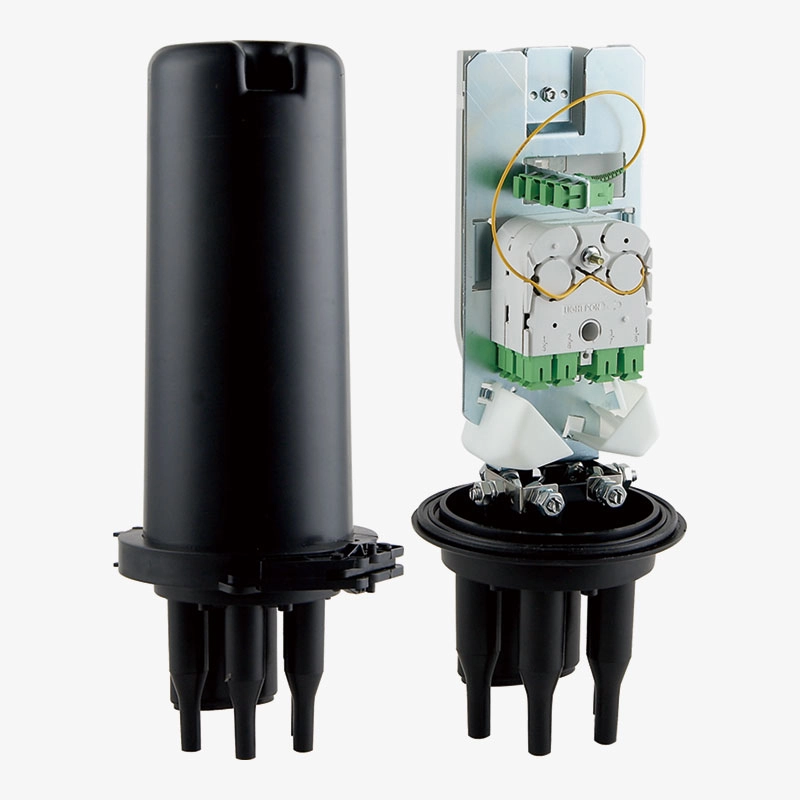

    Dome Types Fiber Optic Splice Closure
