Product Overview
DFSPR-1001-48FThere are a total of 8 optical cable interfaces, 4 in and 4 out, of which 6 interfaces are used for 6-8mm optical cables, and 2 interfaces are used for 6-12mm optical cables.Two 24-core cable trays can be installed, with a maximum capacity of 48 single-core fibers.Mechanical seal. Prot
DFSPR-1001-48F

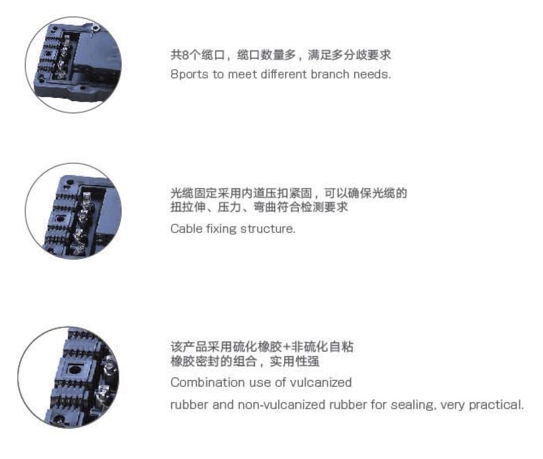

There are a total of 8 optical cable interfaces, 4 in and 4 out, of which 6 interfaces are used for 6-8mm optical cables, and 2 interfaces are used for 6-12mm optical cables.
Two 24-core cable trays can be installed, with a maximum capacity of 48 single-core fibers.
Mechanical seal. Protection class: IP68.
Installation method: overhead, pipeline.
The seal is made of vulcanized rubber and non-vulcanized rubber, which is highly practical.
The internal suspension is fixed to ensure that the cable meets the test requirements such as cable torque, tension, pressure, and bending.
Small size, simple structure and easy operation
Advantages:
Appearance volume
Parameter:
| Name | Material | Cable Port | Cable Diameter | Fiber Tray | Number of Fiber Trays | Capacity | Protection Level | Product Dimensions (mm) | Weight | Installation Method | Remarks |
| DFSPR-1001 48F | PP + glass fiber | 4*4 | 6 ports: Φ6～8mm 2 ports: Φ6～12mm | 24F | 2 | 48F | IP68 | 280X180X85mm | 1.802.2kg | Overhead, pipeline | Advance-GPJ09-6208 48F |
