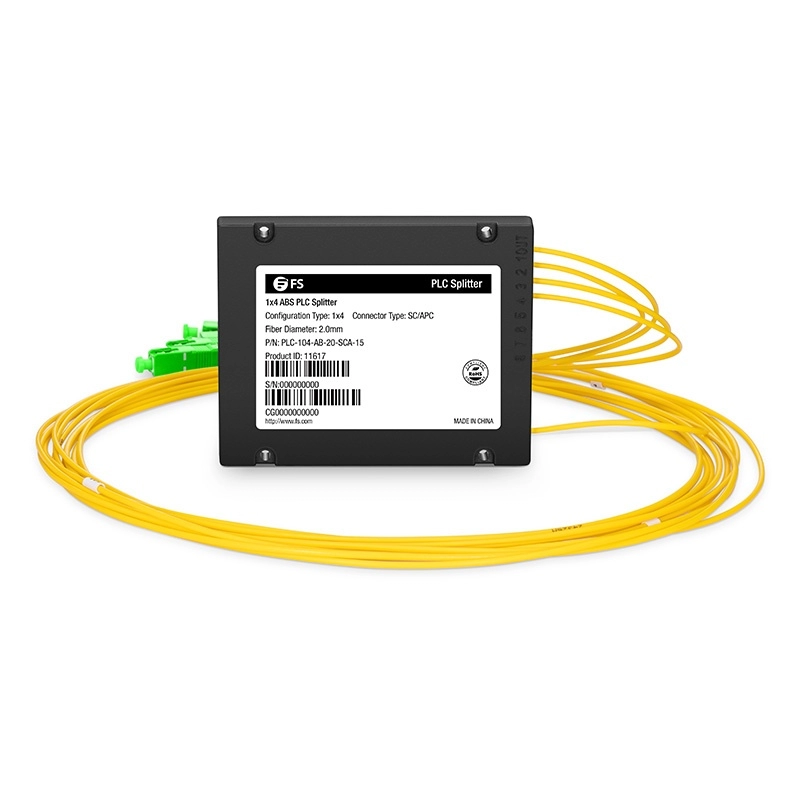

1x4 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable, SC/APC Connectors, Singlemode Fiber

Product Overview

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed ModuleProduct OverviewThe 1x4 PLC fiber splitter utilizes Planar Lightwave Circuit technology to divide a single optical input into four outputs uniformly. It features a robust ABS casing, 2.0mm SC/APC pigtailed connectors, and supports G.657A1 sin

Inquiry Now

Product Description

Online Message DataDownload

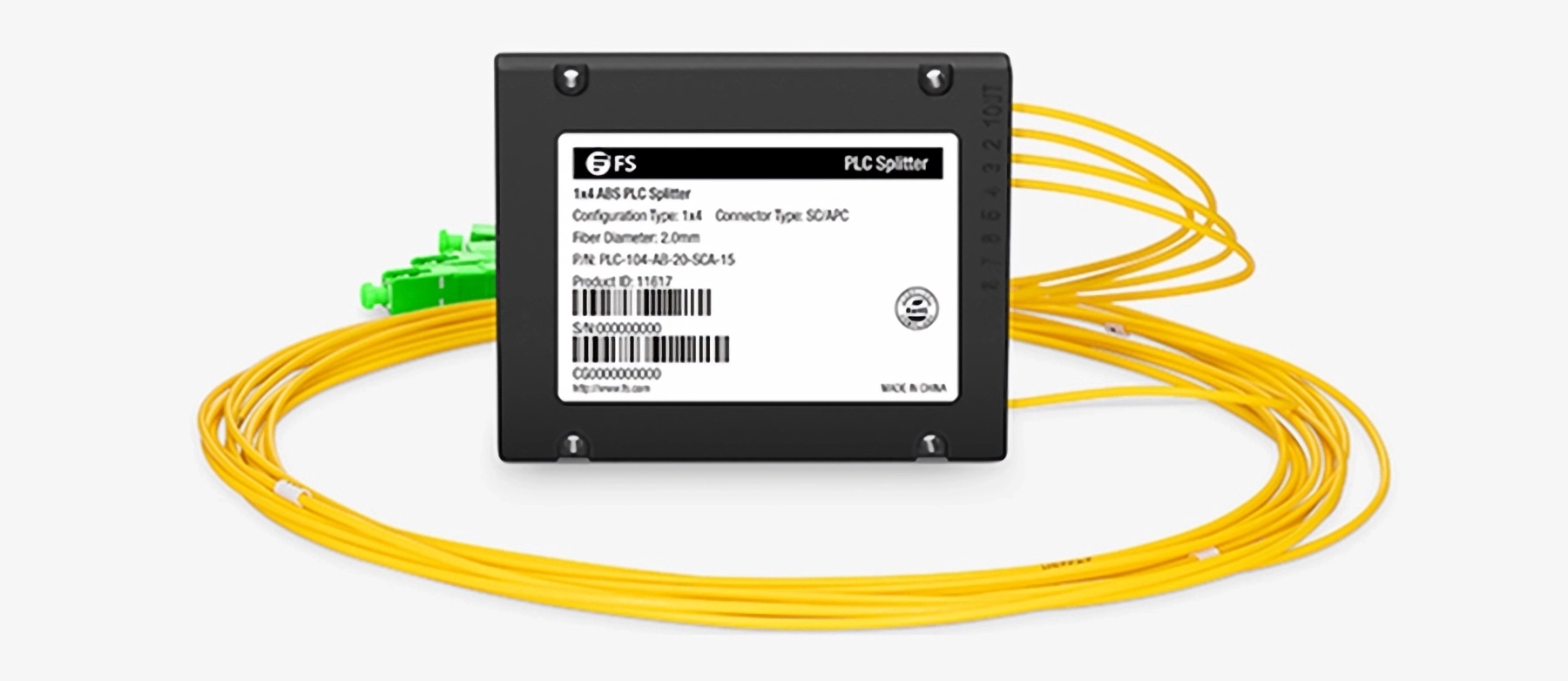

1x4 PLC Fiber Optic Splitter – ABS Splice/Pigtailed Module

Product Overview

The 1x4 PLC fiber splitter utilizes Planar Lightwave Circuit technology to divide a single optical input into four outputs uniformly. It features a robust ABS casing, 2.0mm SC/APC pigtailed connectors, and supports G.657A1 singlemode fiber—ideal for FTTH, LANs, and redundancy networks.

Specifications

Package	ABS Module	Configuration	1x4
Fiber Grade	G.657A1	Mode	Singlemode
Connectors	SC/APC	Split Ratio	Symmetrical
Diameter	2.0mm	Length	1.5m
Insertion Loss	≤ 7.4dB	Return Loss	≥ 55dB
Uniformity	≤ 0.6dB	Directivity	≥ 55dB
PDL	≤ 0.2dB	TDL	≤ 0.5dB
WDL	≤ 0.3dB	Bandwidth	1260~1650nm
Size	10x100x80mm	Temperature	-40 to 85°C (Op & Stg)

Key Features

Advanced PLC Design: Ensures 1:4 balanced signal with ≤1.0dB loss.

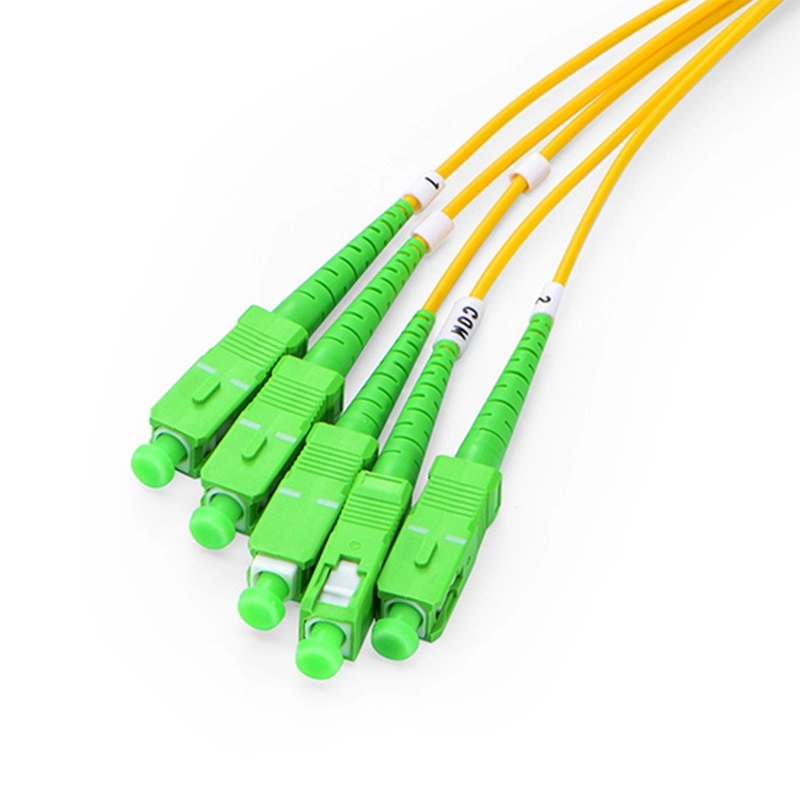

High Isolation: SC/APC connectors offer ≥60dB return loss.
Modular ABS Housing: Durable, UV-resistant, and supports splice or pigtailed setup.
Compact Cabling: 2.0mm diameter enables tight bends and easy installation.
Long-Range Support: Optimized for 1310/1550nm, transmission up to 40km.

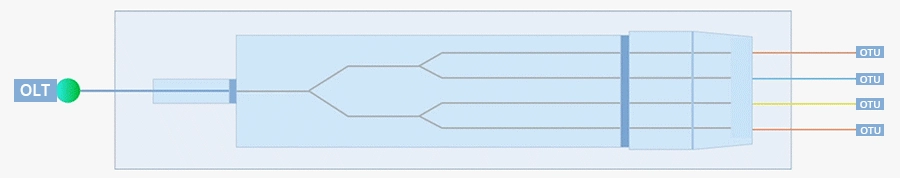

1x4 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable, SC/APC Connectors, Singlemode Fiber(pic2)

Applications

FTTH: Connects multiple homes from a single fiber line.
Redundancy: Adds backup paths to ensure uptime.
LAN Expansion: Serves four terminals from one fiber port.
Security Systems: Shares video signals with multiple endpoints.

Advantages

Cost Savings: Reduces active hardware and installation labor.
Scalable: Easily integrated into growing networks.
Consistent Output: Reliable performance across environments.
