Product Overview
SINGLE FERRULE CONNECTOR SPECIFICATIONParametersIL – MaxIL – TypicalRL (PC/APC)S
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
| Cable Characteristics | Units | Value |
|---|---|---|
| Cable Material | LSZH/PVC | |
| Cable Diameter | mm | 1F – 3.0 / 2F – 3.3 |
| Strength Member | Aramid Yarn | |
| Max. Crush Resistance | N/100mm | 3000 |
| Max. Tensile Load | N | 300 |
| Operating Temperature | ˚C | -25 ~ +70 |

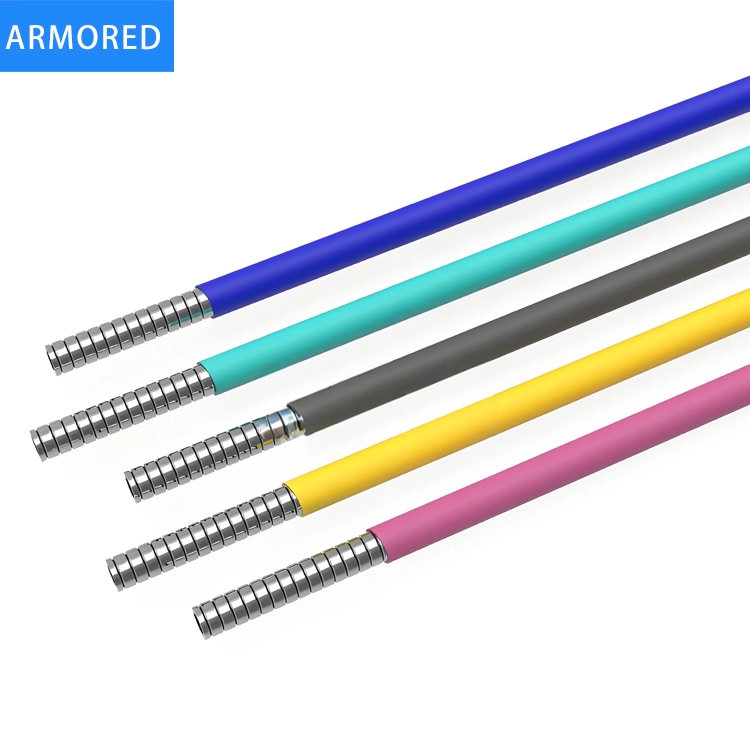

Armored patch cords are designed to perform reliably in demanding environments without requiring extra protective measures. They are widely used in industrial settings, as well as in outdoor-to-indoor telecom networks, including FTTx, FTTH, and other mission-critical applications. These patch cords offer robust and stable connections to active network equipment, passive optical components, and distribution points. Featuring dual-layer protection with steel tape for enhanced crush resistance and aramid yarn for superior tensile strength, they deliver excellent durability and long-term performance under mechanical stress.
✓ Conform to IEC, EIA-TIA, and Telcordia performance requirements

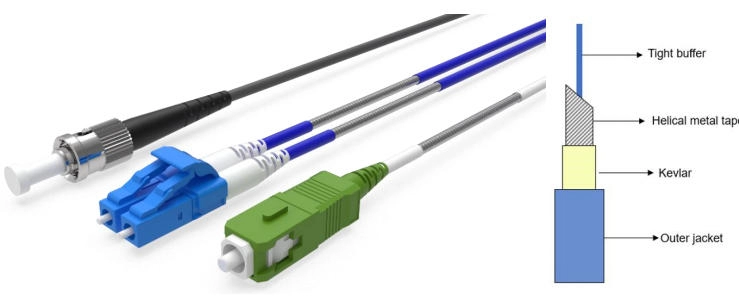

✓ Double armor with high durability and good crush resistance
✓ Available in standard Single mode and Multimode fiber

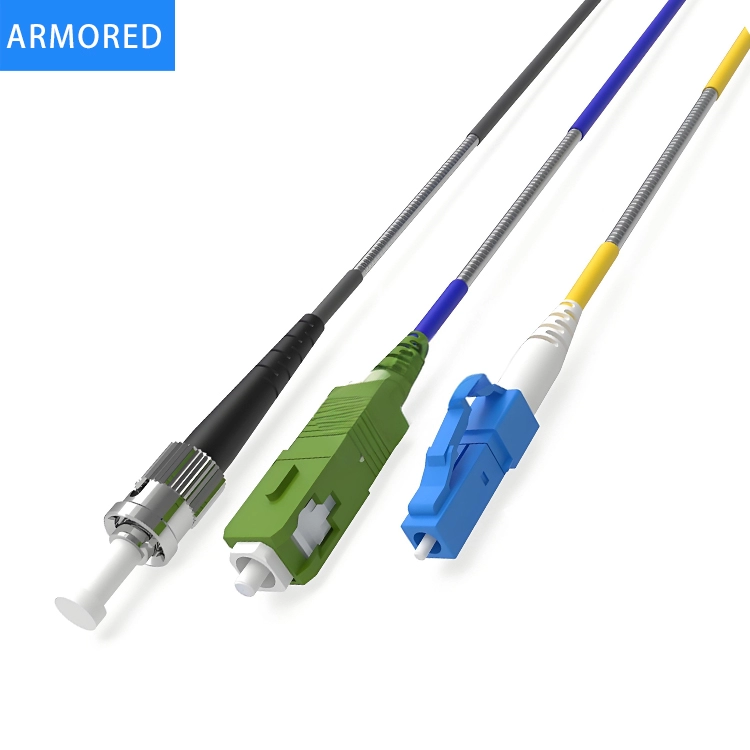

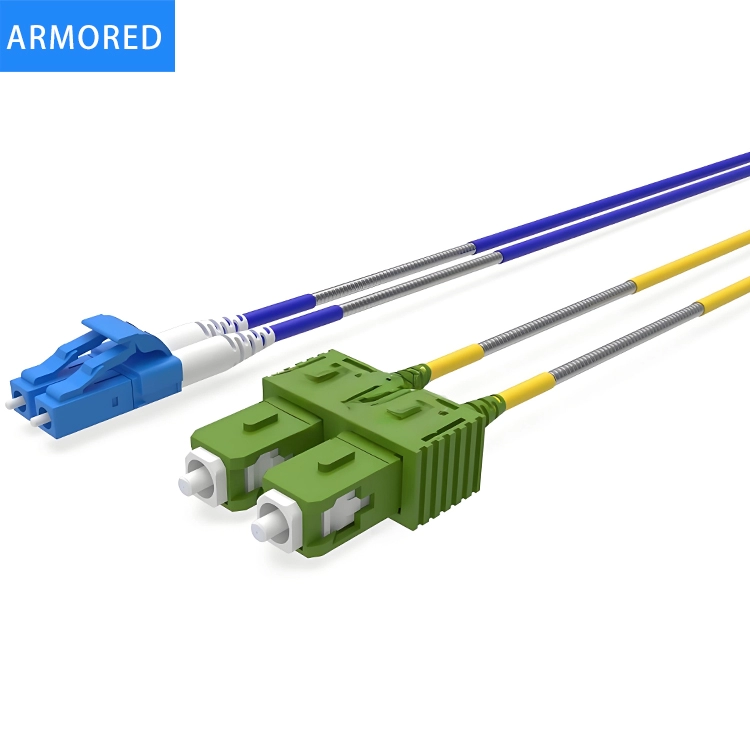

✓ LC, SC, FC and ST connector types
✓ RoHS, REACH & SvHC compliant
✓ Cable jacket available in PVC, LSZH material options
