Product Overview

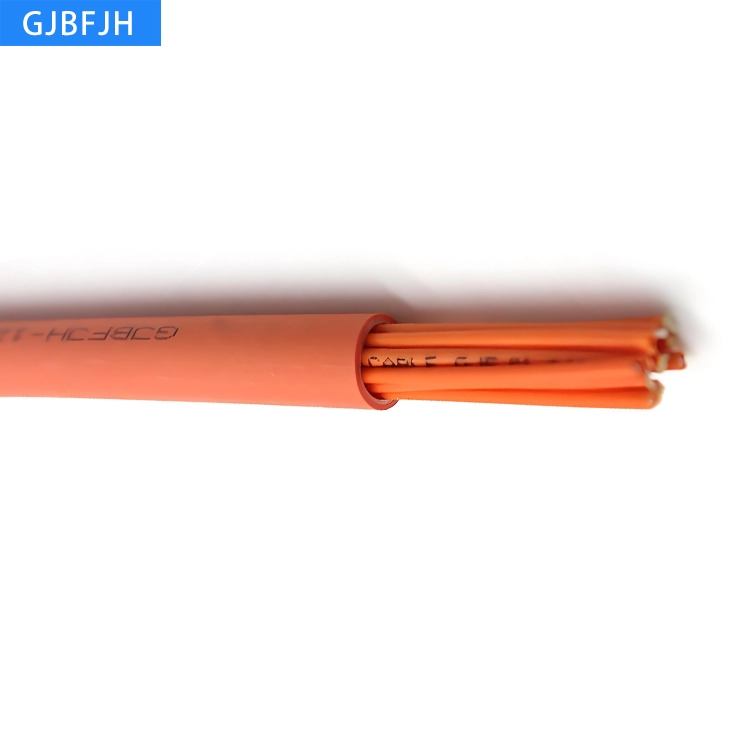

Indoor Breakout Fiber Optic Cable ，G652D - GJBFJH Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.Product FeaturesTight-buffered fiber allows easy strip

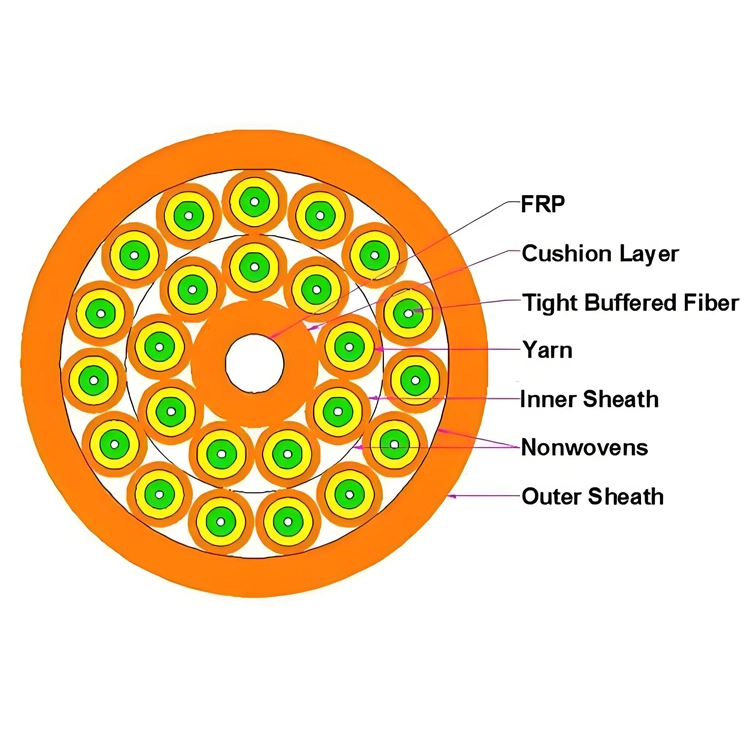

Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.
Sheath Color: Typically yellow, orange, or aqua green; customizable on request.
Compliant with YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-10/11 standards. Available in UL OFNR/OFNP and LSZH versions meeting IEC60332-1/3C or OFNR fire ratings.
The following table lists common fiber types, attenuation, bandwidth, and physical specifications.
| Optical fiber category Fiber type | Attenuation (20 ℃) | Injection bandwidth (OFL) | Effective bandwidth | 10G Ethernet Link Length SX | Minimum bending radius | |||
|---|---|---|---|---|---|---|---|---|
| 1310/1550nm | 850/1300nm | |||||||
| Typical value | Value | Typical value | Value | |||||
| Unit | dB/Km | dB/Km | dB/Km | dB/Km | MHz·Km | MHz·Km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥47000 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥47000 | ≤550 | 7.5 |
Online Message
Indoor Breakout Fiber Optic Cable ，G652D - GJBFJH Structure: GJBFJH consists of φ900μm tight-buffered optical fiber, aramid yarn reinforcement, and a non-metallic central strength member. The outer sheath is made from PVC or LSZH material.Product FeaturesTight-buffered fiber allows easy strip
Details
l FeaturesL High strength spinning fiber reinforcementL It has good environmental and mechanical propertiesL Soft, easy to peel off, easy to connectL Round structure, small size and light weightL ApplicationL Suitable for indoor wiringL Suitable for optical connection of communication equipment and
Details

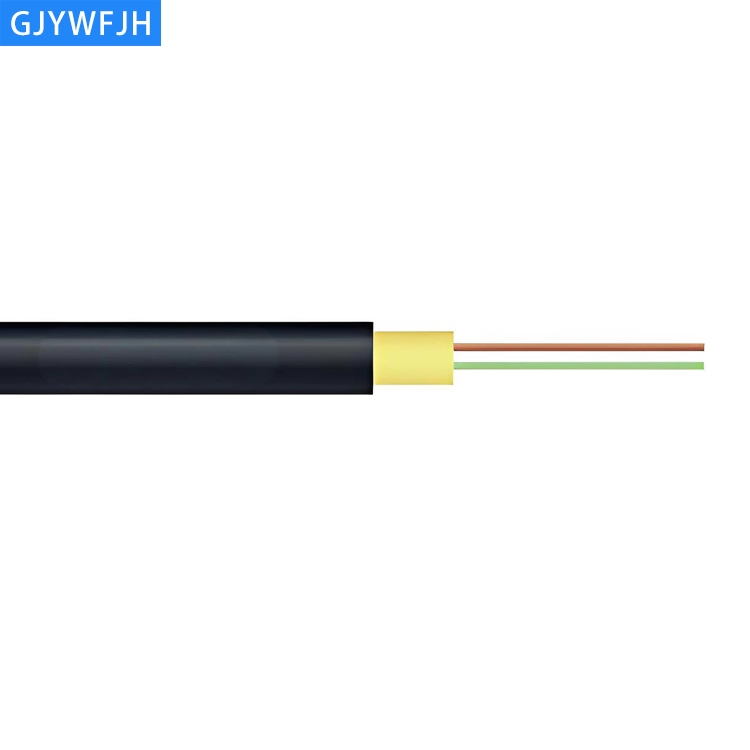

GJYWFJH indoor/outdoor armored fiber optic cable ，G652D product description:GJYWFJH indoor/outdoor cable is a medium for optical transmission, using a 900um cable structure. It is designed to wrap a layer of aramid yarn in a tight fiber layer to enhance mechanical strength, and different materials (
