  • 1x32 PLC Fiber Splitter in ABS Enclosure

  • 1x32 PLC Fiber Splitter in ABS Enclosure

  • 1x32 PLC Fiber Splitter in ABS Enclosure

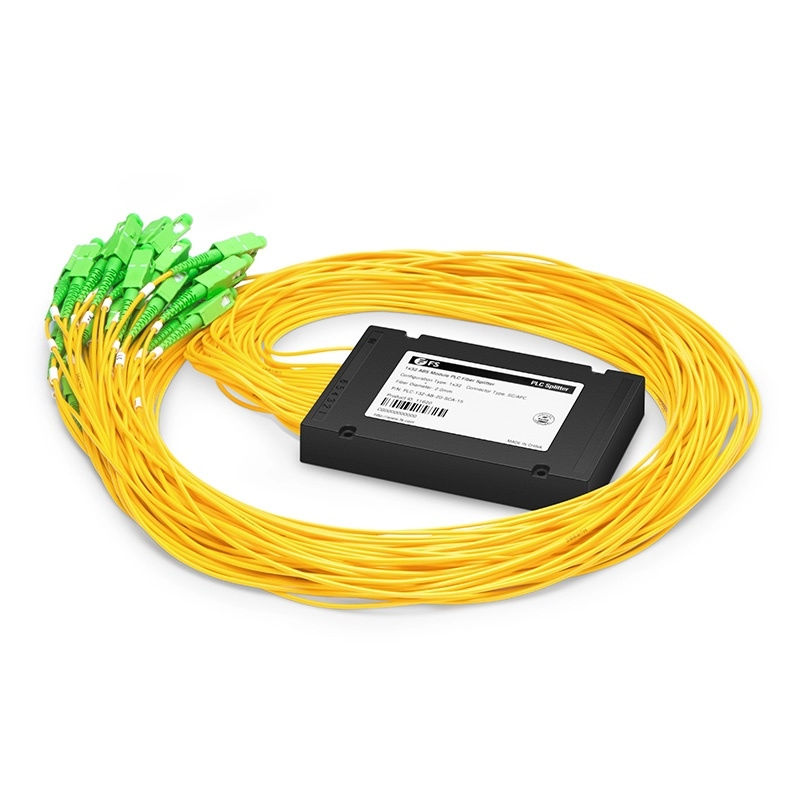

1x32 PLC optical splitter in ABS Enclosure, Singlemode 2.0mm Pigtail Module,

Technical SpecificationsPackage StyleABS ModuleConfiguration Type1x 32Fiber TypeG.657A1Operating Wavelength1260~1650nmConnector TypeSC/APCSplit RatioSymmetricalInput/Output Fiber Diameter2.0mmInput/Output Fiber Length1.5mInsertion Loss 16.9dBInsertion Loss Uniformity 1.5dBReturn Loss55dBDirectivity

:1x32 ABS Fiber Splitter
:2025-04-25
:SM
:2-288 Cores
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

1x32 PLC optical splitter in ABS Enclosure, Singlemode 2.0mm Pigtail Module,

SMoothing: antialiased; font-family: PingFangSC-Semibold; liST-STyle: none; margin: 14px 0px 8px; scrollbar-width: none; color: rgb(5, 7, 59); font-size: 18px; border: none; line-height: 1.7; background-color: rgb(253, 253, 254);">Technical  Specifications

Package Style
ABS Module
Configuration Type
1x 32
Fiber Type
G.657A1
Operating Wavelength
1260~1650nm
Connector Type
SC/APC
Split Ratio
Symmetrical
Input/Output Fiber Diameter
2.0mm
Input/Output Fiber Length
1.5m
Insertion Loss
≤ 16.9dB
Insertion Loss Uniformity
≤ 1.5dB
Return Loss
55dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.3dB
Fiber Mode
Singlemode
Wavelength Dependent Loss
≤ 0.5dB
Temperature Dependent Loss
Dimensions (HxWxD)
0.71"x4.72"x3.15" (18x120x80mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)

Product Description & Features

Overview

The 1x32 PLC fiber splitter is a high-performance passive optical device designed to evenly distribute a single input signal across thirty-two outputs using Planar Lightwave Circuit (PLC) technology. Housed in a robust ABS enclosure, this splitter features ultra-slim 2.0mm pigtails optimized for singlemode fiber networks. It is ideal for applications requiring massive signal distribution, such as large-scale FTTH deployments, data center backbone networks, or industrial surveillance systems.

Key Features

  1. PLC Splitting Technology
    • Uniform 1:32 Split: Ensures equal power distribution across all outputs (typical imbalance
    • Low Insertion Loss: ≤2.0dB (typical), ≤4.0dB (max) per output for minimal signal degradation.
    • High Return Loss: APC connectors provide ≥60dB return loss to eliminate back reflections.


  2. ABS Enclosure Design
    • Compact & Durable: IP65-rated ABS box protects against dust, moisture, and physical impacts.
    • Flexible Installation: Wall/rack-mountable with pre-drilled holes for indoor/outdoor use.


  3. 2.0mm Ultra-Slim Pigtails
    • Space-Efficient Routing: Thin 2.0mm jacket diameter simplifies cable management in high-density trays.
    • Bend-Insensitive Fiber: G.657A2-compatible fiber supports tight bends (down to 10mm radius) without loss.


  4. Singlemode Compatibility
    • Broadband Support: Optimized for 1260–1650nm wavelengths, suitable for 1310nm/1550nm networks.
    • Low Dispersion: G.652D singlemode fiber minimizes modal and chromatic dispersion for long-haul transmission.

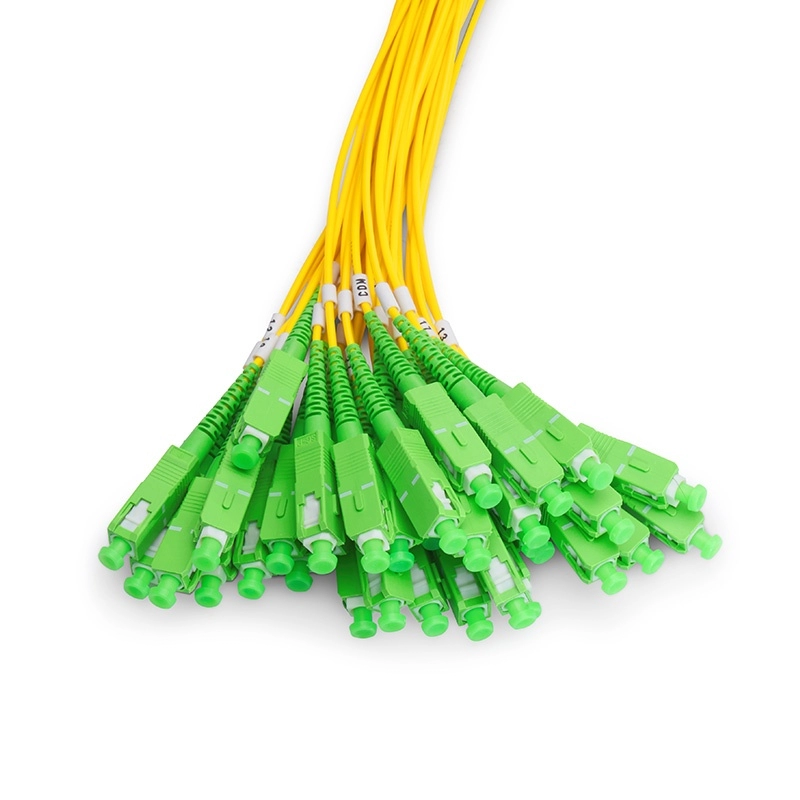

  5. Connector Interface
    • APC-Polished Contacts: Angle-polished connectors reduce wear during repeated mating cycles.

    • Color-Coded Design: Green-colored connectors (APC) for easy identification in dense fiber setups.


Typical Applications

  1. Large-Scale ftth networks: Distribute broadband signals to up to 32 subscribers from a single OLT port.

  2. Data Center Distribution: Split high-speed traffic to multiple switches or servers in dense rack environments.

  3. Industrial Surveillance: Feed video signals to dozens of cameras or monitoring stations across expansive sites.

  4. PON Deployments: Expand GPON/EPON capacity to 32 ONUs for metro or campus-wide networks.


Competitive Advantages

  • Massive Scalability: 32 outputs reduce the need for cascading splitters, simplifying network architecture.

  • Cost Efficiency: PLC technology lowers per-output costs compared to traditional fused splitters.

  • Reliable Performance: ABS enclosure and bend-insensitive fiber ensure stability in harsh environments.
