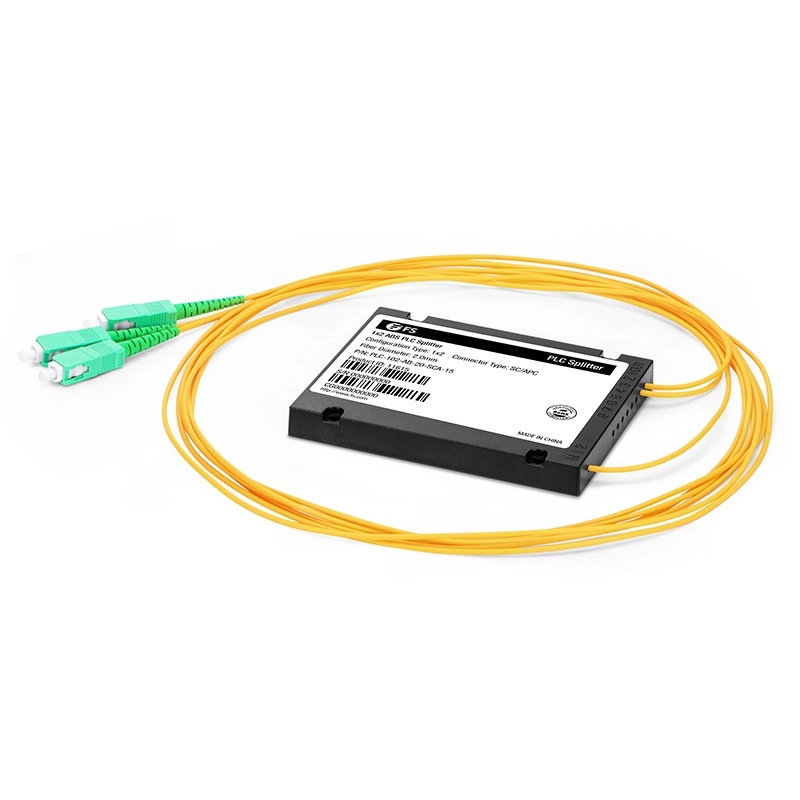

1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable Diameter, SC/APC Connectors, Singlemode Fiber

Technical SpecificationsPackage StyleABS ModuleConfiguration Type1x 2Fiber GradeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInput/Output Fiber Diameter2.0mmInput/Output Fiber Length1.5mInsertion Loss 4.1dBReturn Loss 55dBLoss Uniformity 0.4dBDirectivity 55dBPolarization Depe

:2025-04-15
:SM
:2-288 Cores
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable Diameter, SC/APC Connectors, Singlemode Fiber

ST-STyle:="" none="" margin:="" scrollbar-width:="" style="color: rgb(5, 7, 59); font-family: PingFangSC-Semibold; font-size: 18px; font-weight: 600; box-sizing: border-box; padding: 0px; -webkit-font-SMoothing: antialiased;">Technical Specifications


Package Style
ABS Module
Configuration Type
1x 2
Fiber Grade
G.657A1
Fiber Mode
Singlemode
Connector Type
SC/APC
Split Ratio
Symmetrical
Input/Output Fiber Diameter
2.0mm
Input/Output Fiber Length
1.5m
Insertion Loss
≤ 4.1dB
Return Loss
≥ 55dB
Loss Uniformity
≤ 0.4dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.2dB
Temperature Dependent Loss
≤ 0.5dB
Wavelength Dependent Loss
≤ 0.3dB
Operating Bandwidth
1260~1650nm
Dimensions (HxWxD)
0.39"x3.94"x3.15" (10x100x80mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)




1X2 PLC fiber optic Splitter, ABS Splice/Pigtailed Module Product Detailed Introduction and Features

overview

The 1x2 PLC fiber splitter is a compact optical passive device that uses planar light waveguide (PLC) technology to evenly split a single input optical signal into two outputs. The module is designed as an ABS splice/pigtailed type, equipped with a 2.0mm outer diameter cable and SC/APC connector, designed for single-mode fiber networks, suitable for small branch networks, fiber-to-the-home (FTTH) end splitting or equipment redundancy backup scenarios.

1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module Core Features

  1. 1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed ModulePLC Spectroscopic Technology
    • precise spectroscopy1:2 split ratio, two output optical power balance, typical difference < 0.1dB.
    • Low insertion loss: Typical value ≤ 0.5dB (maximum value ≤ 0.8dB), ensuring efficient signal transmission.
    • High return lossAPC (8 ° bevel polished) connectors provide ≥ 60dB return loss, reducing reflection interference.

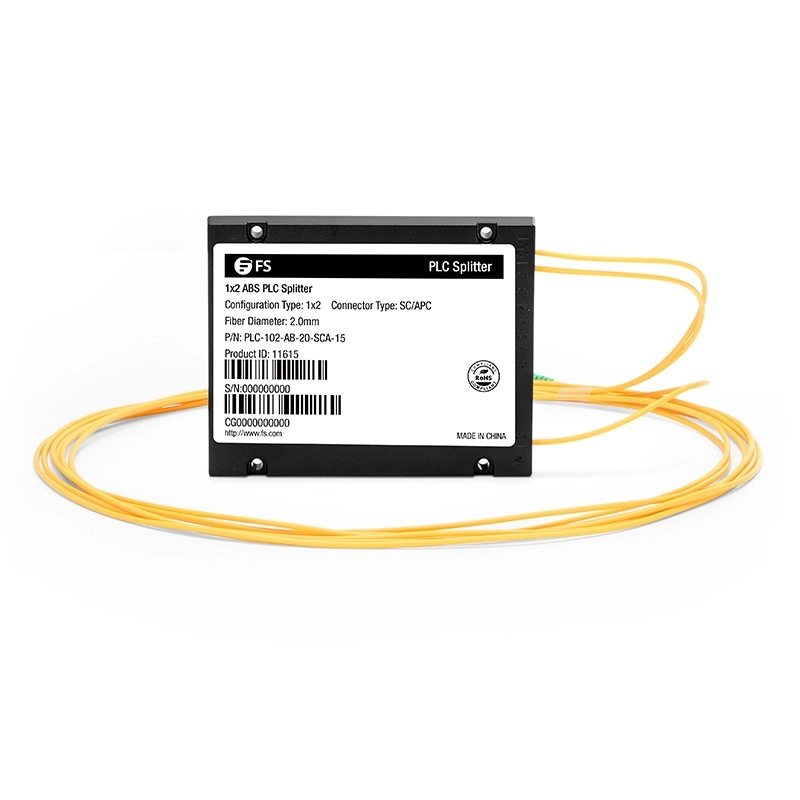

    • 1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable Diameter, SC/APC Connectors, Singlemode Fiber(pic2)

  2. ABS splicing/pigtail module
    • Flexible deployment: Support two installation methods: direct welding (Splice) or pre-formed end pigtailed (Pigtailed).
    • Durable designABS material shell is lightweight and corrosion-resistant, suitable for indoor/outdoor complex environments.
  3. 2.0Mm cable diameter adaptation
    • compact wiring2.0Mm outer diameter cable is suitable for micro-fiber optic cable, which is convenient for dense wiring or small space installation.
    • High bendingThe cable supports a small bending radius (≥ 15mm), reducing the difficulty of construction.

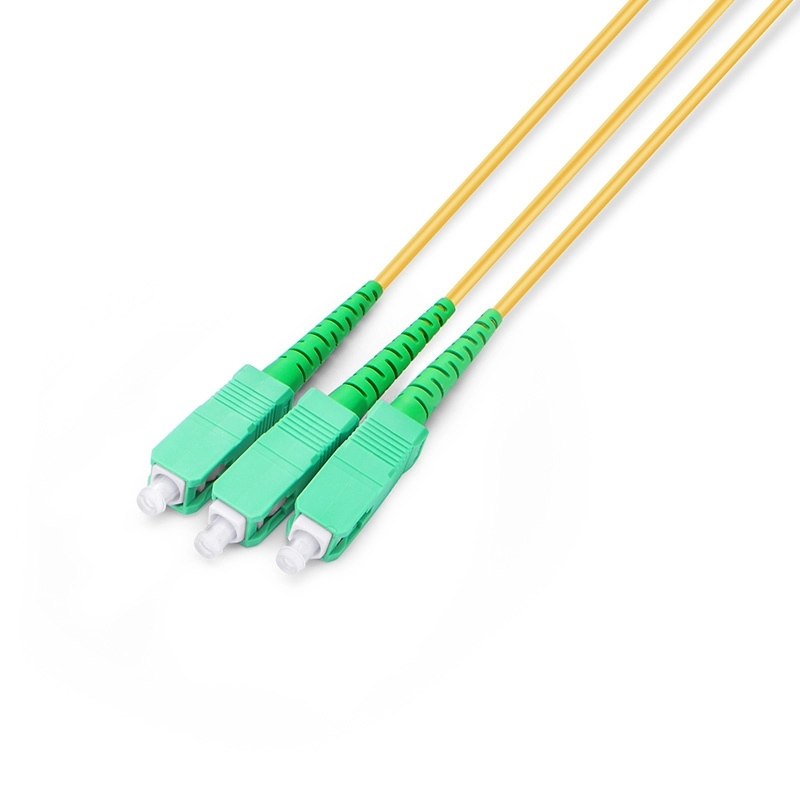

  4. SC/APC connector
    • Fast dockingThe plug-in connector simplifies installation and supports repeated plugging and unplugging > 1000 times.
    • green logoAPC end face conforms to IEC standards, with clear visual distinction to avoid misoperation.
  5. single mode fiber optimization
    • Long distance support: Adapted to single-mode fiber (SMF), supports 1310nm/1550nm wavelengths, and has a transmission distance of more than 20km.

    • Low dispersion designSingle-mode fiber core diameter is 9μm, reducing mode dispersion and ensuring signal quality.

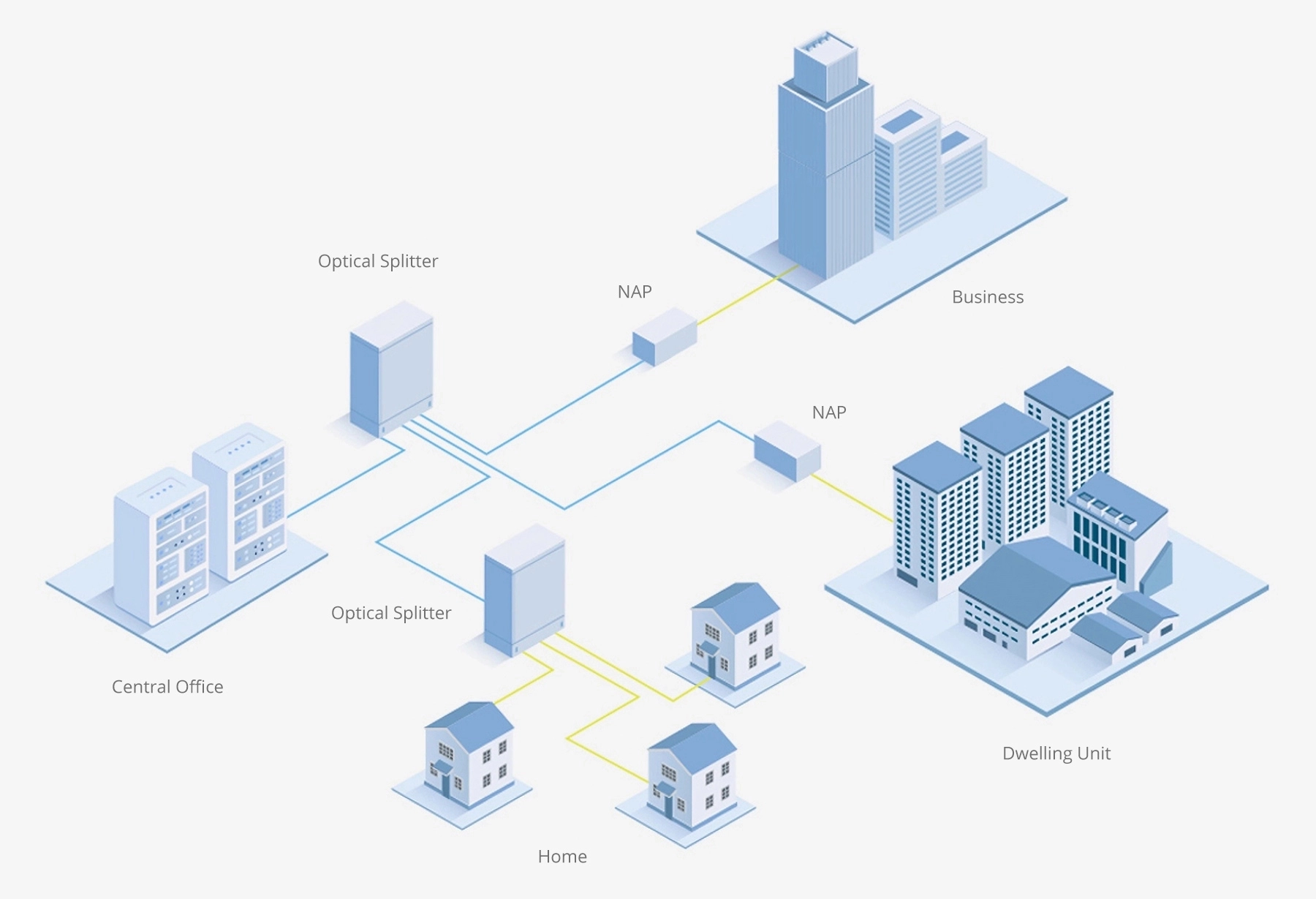

1X2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module Typical Application Scenarios

  1. Fiber to the Home (FTTH)
    As an end splitter, the home cable signal is divided into two user end points.

  2. Small local area network (LAN)
    Extend network coverage by connecting two switches or end point devices.

  3. device redundant backup
    Provide dual-channel optical signal input for key equipment to enhance network reliability.

  4. security monitoring
    Split light transmission to multiple cameras, simplifying the wiring structure.

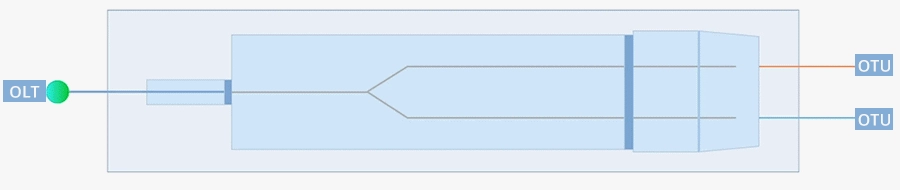

1x2 PLC Fiber Optic Splitter, ABS Splice/Pigtailed Module, 2.0mm Cable Diameter, SC/APC Connectors, Singlemode Fiber(pic3)

Advantage summary

  • Flexible installationSupport welding or pigtail deployment methods to adapt to different construction requirements.

  • Compact design2.0Mm cable diameter + ABS module for dense wiring and space-constrained scenarios.

  • cost-effectivenessSimplify network architecture, reduce welding costs and labor input.
