8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber

8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode FiberTechnical parametersSpecificationsPackage StyleLGX BoxConfiguration Type1x 8Fiber TypeG.657A1Operating Wavelength1260~1650nmConnector TypeSC/APCSplit RatioSymmetricalInsertion Loss 10.5dBInsertion Loss Uniformit

:1x8 PLC Fiber Optic Splitter
:2025-04-15
:SM
:2-288 Cores
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

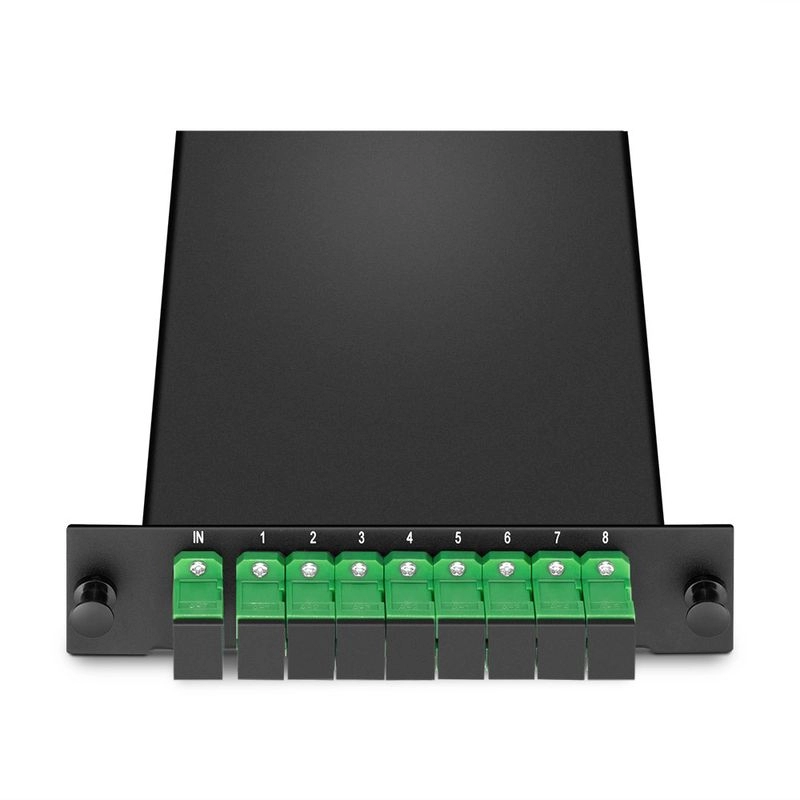

8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber

8-Channel 1x8 PLC fiber optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber

SMoothing: antialiased; font-family: PingFangSC-Semibold; liST-STyle: none; margin: 14px 0px 8px; scrollbar-width: none; color: rgb(5, 7, 59); font-size: 18px; border: none; line-height: 1.7; background-color: rgb(253, 253, 254);">Technical parameters

Specifications

Package Style
LGX Box
Configuration Type
1x 8
Fiber Type
G.657A1
Operating Wavelength
1260~1650nm
Connector Type
SC/APC
Split Ratio
Symmetrical
Insertion Loss
≤ 10.5dB
Insertion Loss Uniformit
≤ 0.8dB
Return Loss
≥ 55dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.2dB
Temperature Dependent Loss
≤ 0.5dB
Wavelength Dependent Loss
≤ 0.3dB
Fiber Mode
Singlemode
Dimensions (HxWxD)
1.14"x5.12"x5.00" (29x130x127mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)


8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode FiberProduct details and features

overview

The 1x8 PLC fiber splitter is an optical passive device based on planar light waveguide (PLC) technology, which is used to evenly split one input optical signal into eight outputs. It adopts a standard LGX box design and is equipped with SC/APC connectors. It is designed for single-mode fiber networks and is suitable for long-distance, high-bandwidth optical transmission scenarios such as large data centers, backbone networks, and fiber access networks (FTTx).


8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fibercore features

  1. PLC spectroscopy technology
    • uniform spectroscopyThe PLC chip manufactured by the semiconductor process realizes 1:8 accurate splitting and eight-way output optical power balance.
    • Low insertion loss: Typical value ≤ 0.9dB (maximum value ≤ 1.2dB), ensuring signal transmission efficiency.
    • High return lossAPC (8 ° bevel polished) connectors provide ≥ 60dB return loss, reducing reflection interference.

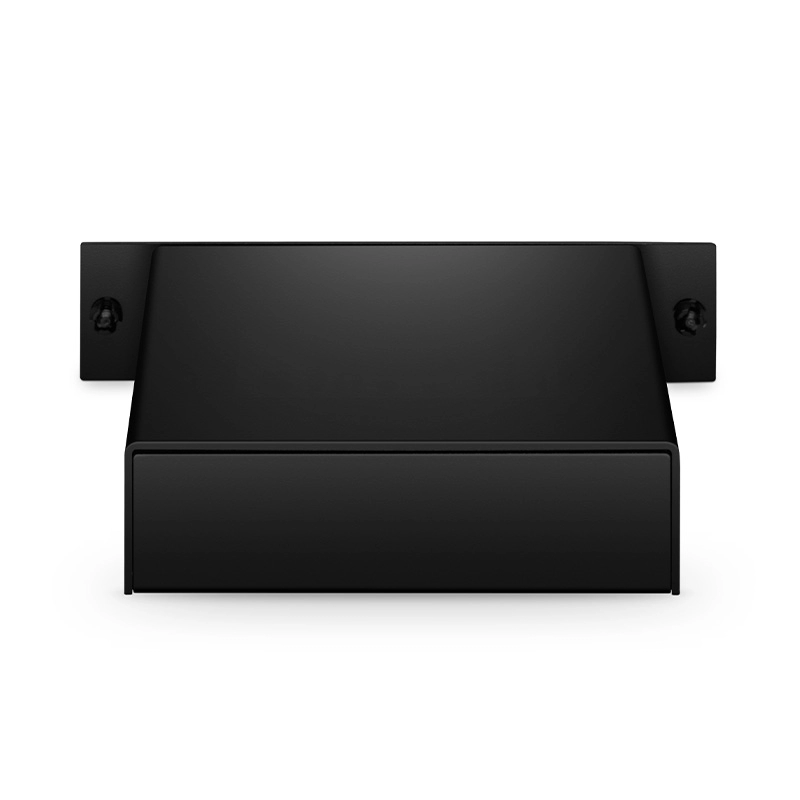

    8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber(pic1)

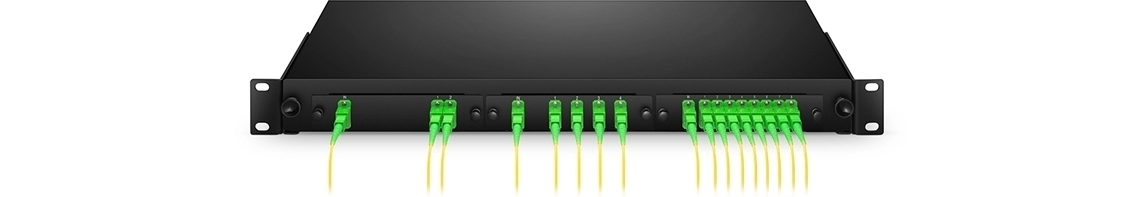

  2. Standard LGX cartridge design
    • Compact and modular: Compliant with LGX standard sizes, compatible with mainstream fiber optic distribution frames (ODFs) and rack mounts.
    • Hot swap support: Support live plug-in for easy network maintenance and expansion.
  3. SC/APC connector
    • High precision dockingCeramic ferrules ensure low insertion loss and high durability (plug-in life > 1000 times).
    • Environmental safetyAPC end face design reduces fiber end face reflection and enhances system stability.
  4. single mode fiber adaptation
    • long distance transmission: Supports single-mode fiber (SMF), suitable for 1310nm/1550nm wavelengths, with transmission distances up to tens of kilometers.
    • Low dispersionSingle-mode fiber core diameter is small (9μm), reducing mode dispersion and ensuring signal integrity.
  5. Environmental adaptability

    • Wide temperature working range: -40 ° C to 85 ° C, suitable for harsh outdoor or computer room environments.

    • High humidity toleranceRelative humidity 5% to 95% non-condensing, suitable for use in humid areas.

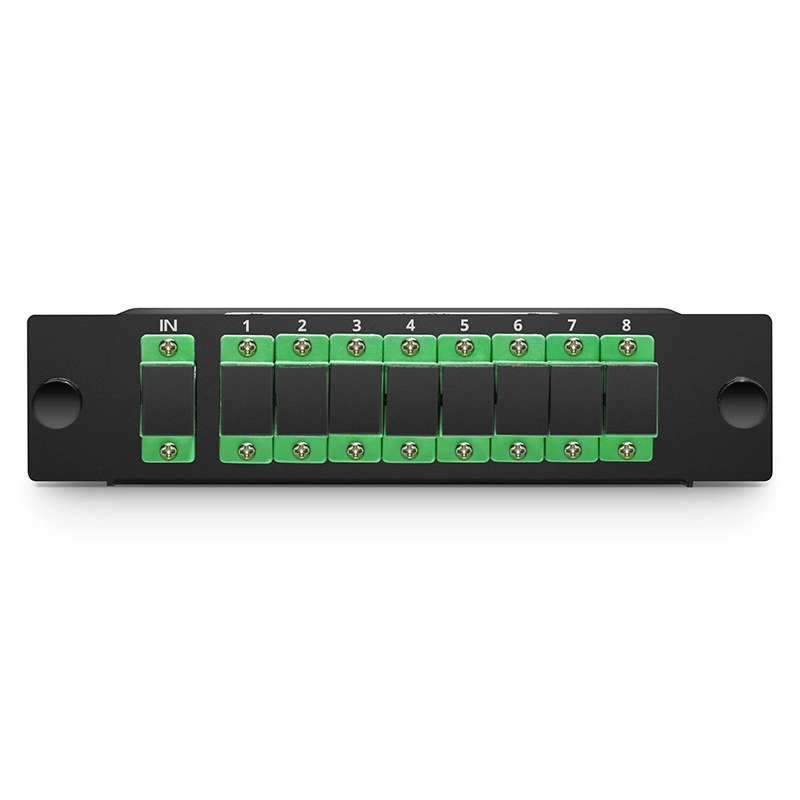

    8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber(pic2)





8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode FiberTypical application scenarios

  1. Large data center
    Optical signal shunting between expansion racks to support high-density cabling and multi-device connectivity.

  2. Backbone Network/Metro Network
    Cascading is used to build complex network topologies, improving transmission efficiency and coverage.

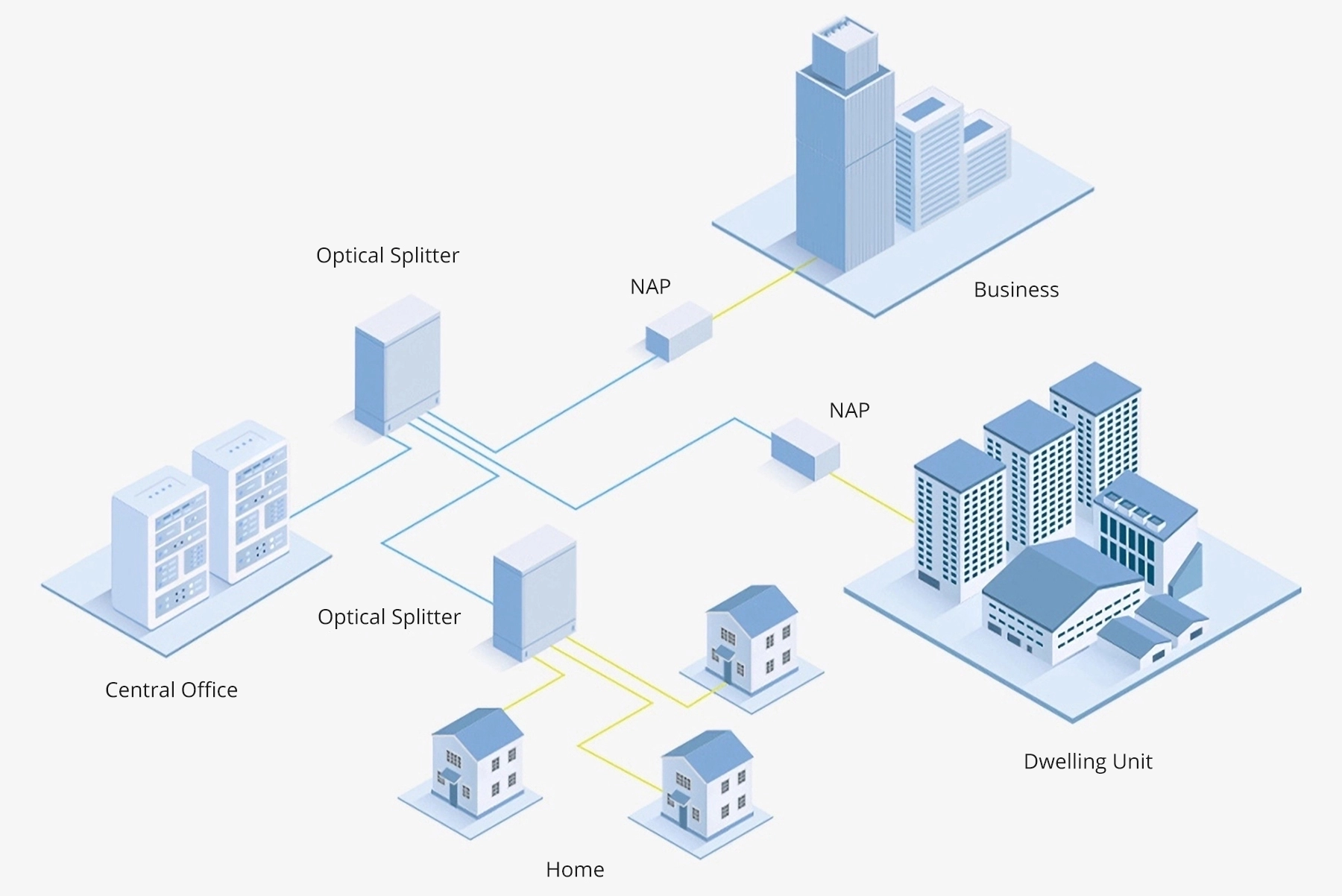

  3. Fiber to the Home (FTTH)
    For the beam splitter end, the centralized distribution signal to a plurality of user end points.

  4. Cable Television (CATV)
    Distribute optical signals to multiple regional nodes, covering large community or city networks.

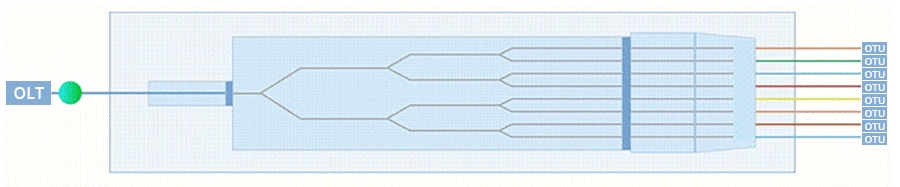

8-Channel 1x8 PLC Fiber Optic Splitter , LGX Module, SC/APC Connectors, Singlemode Fiber(pic3)

Advantage summary

  • high efficiency spectroscopyPLC technology ensures that eight signals are evenly distributed without additional losses.

  • Flexible expansionSupport cascading or parallel connection to adapt to large-scale network requirements.

  • cost optimizationReduce welding requirements and reduce labor and time costs.
