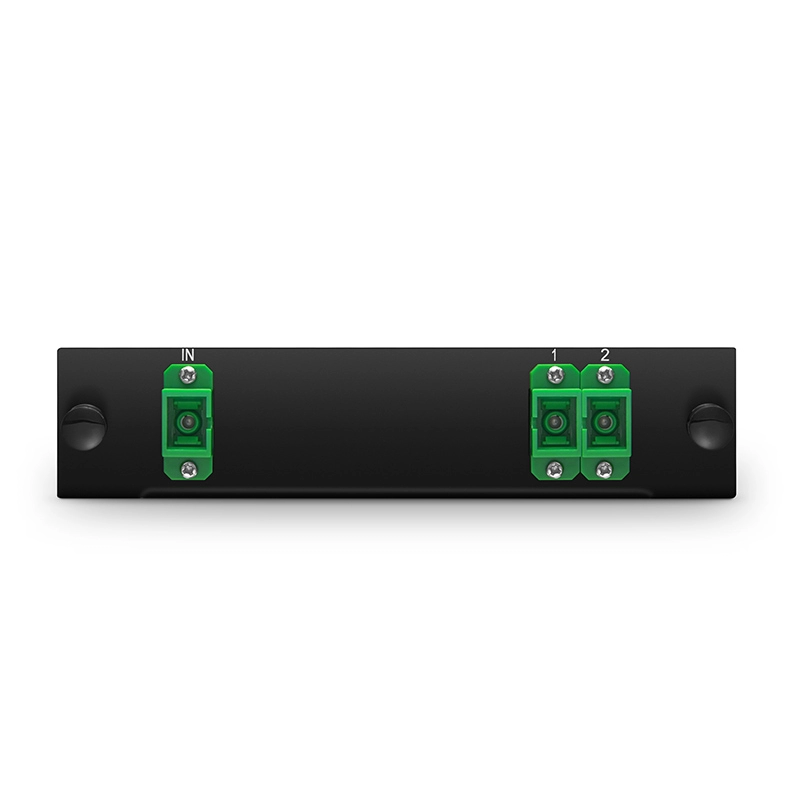

1x2 PLC Fiber Splitter, LGX Cassette Type, SC/APC Connector, Single-Mode，optical splitter

Product Overview

1x2 PLC Fiber Splitter, LGX Cassette Type Technical ParametersSpecificationsPackage StyleLGX BoxConfiguration Type1x2Fiber GradeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInsertion Loss 4.0dBReturn Loss 55dBLoss Uniformity 0.4dBDirectivity 55dBPolarization Dependent Loss 0.

Product Model：

Update Time：2025-05-23

Fiber Type：SM

Fiber coreSimplex,duplex

Manufacturer Type：

Fiber Core Count：2-288 Cores

Outer Jacket：

Standard：

Port Type：Simplex,duplex

Polishing Type：

Adapter Type：SC,LC,FC,ST,E2000

Splitter Type：Insert Type/Box type/Mini PLC splitter

Connector Type：LC/SC/ST/FC APC/UPC

Inquiry Now

1x2 PLC Fiber Splitter, LGX Cassette Type, SC/APC Connector, Single-Mode，optical splitterDetailed Introduction

Online Message

1x2 PLC fiber splitter, LGX Cassette Type Technical Parameters

Specifications

Package Style	LGX Box	Configuration Type	1x2
Fiber Grade	G.657A1	Fiber Mode	Singlemode
Connector Type	SC/APC	Split Ratio	Symmetrical
Insertion Loss	≤ 4.0dB	Return Loss	≥ 55dB
Loss Uniformity	≤ 0.4dB	Directivity	≥ 55dB
Polarization Dependent Loss	≤ 0.2dB	Temperature Dependent Loss	≤ 0.5dB
Wavelength Dependent Loss	≤ 0.3dB	Operating Bandwidth	1260~1650nm
Dimensions (HxWxD)	1.14"x5.12"x5.00" (29x130x127mm)	Temperature	Operating -40 to 85°C Storage -40 to 85°C

Product Overview

The 1x2 PLC fiber splitter utilizes advanced Planar Lightwave Circuit (PLC) technology to evenly split an input optical signal into two outputs. Designed in an LGX cassette form factor with SC/APC connectors, it supports single-mode networks requiring long-distance and high-bandwidth signal tranSMission.

Core Features

Accurate PLC splitting: Semiconductor-processed chip ensures uniform signal division (1:2).
Low insertion loss: Typically ≤ 0.3dB, max ≤ 0.5dB.
High return loss: SC/APC connectors with 8° angled polish achieve ≥ 60dB return loss.
Standard LGX cassette: Compact, modular, hot-swappable, compatible with ODF and rack installations.
Precision SC/APC connectors: Ceramic ferrule for low loss, durable for over 1000 cycles.
Single-mode fiber support: Optimized for 1310/1550nm wavelengths, minimal dispersion.
Environmental tolerance: Operates from -40°C to 85°C, humidity 5%-95% non-condensing.

Application Scenarios

FTTH: Final-level fiber distribution to households.
LAN/WAN: Backbone extension, connecting core to edge networks.
CATV: Region-wide signal distribution via optical splitting.
Data Centers: Optical branching between racks for cabling flexibility.

Advantages Summary

High reliability: Stable, mature PLC technology with consistent performance.
Quick deployment: Plug-and-play with standard interfaces.
Flexible expansion: Supports cascading in star or tree networks.
Cost-effective: Reduces labor/time costs versus fusion splicing.

Compliance

Telcordia GR-1221-CORE
RoHS Compliant
IEC 61754-20 Standard
