16-Channel 1x16 PLC optical cable splitter, 1U 19，

Product Overview

1x16 PLC Fiber Splitter, 1U Rack-Mount, SC/APC Connectors - Technical SpecificationsSpecificationsPackage StyleRack MountConfiguration Type1x16Fiber TypeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInsertion Loss 13.8dBInsertion Loss Uniformity 1.2dBReturn Loss 55dBDirectivit

Product Model：1x16 PLC Splitter

Update Time：2025-05-23

Fiber Type：SM

Fiber coreSimplex,duplex

Manufacturer Type：

Fiber Core Count：2-288 Cores

Outer Jacket：

Standard：

Port Type：Simplex,duplex

Polishing Type：

Adapter Type：SC,LC,FC,ST,E2000

Splitter Type：Insert Type/Box type/Mini PLC splitter

Connector Type：LC/SC/ST/FC APC/UPC

Inquiry Now

16-Channel 1x16 PLC optical cable splitter, 1U 19，Detailed Introduction

Online Message

1x16 PLC fiber splitter, 1U Rack-Mount, SC/APC Connectors - Technical Specifications

Specifications

Package Style	Rack Mount	Configuration Type	1x16
Fiber Type	G.657A1	Fiber Mode	Singlemode
Connector Type	SC/APC	Split Ratio	Symmetrical
Insertion Loss	≤ 13.8dB	Insertion Loss Uniformity	≤ 1.2dB
Return Loss	≥ 55dB	Directivity	≥ 55dB
Polarization Dependent Loss	≤ 0.3dB	Wavelength Dependent Loss	≤ 0.5dB
Temperature Dependent Loss	≤ 0.5dB	Operating Wavelength	1260-1650nm
Dimensions (HxWxD)	1.73"x19.00"x9.84" (44x482.6x250mm)	Temperature	Operating -40 to 85°C Storage -40 to 85°C

Product Overview

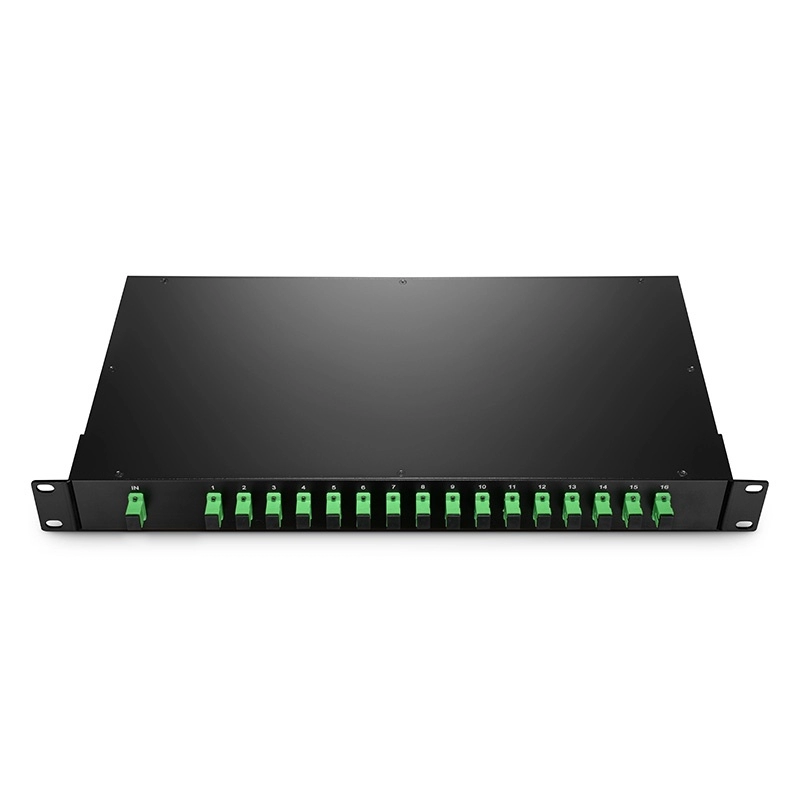

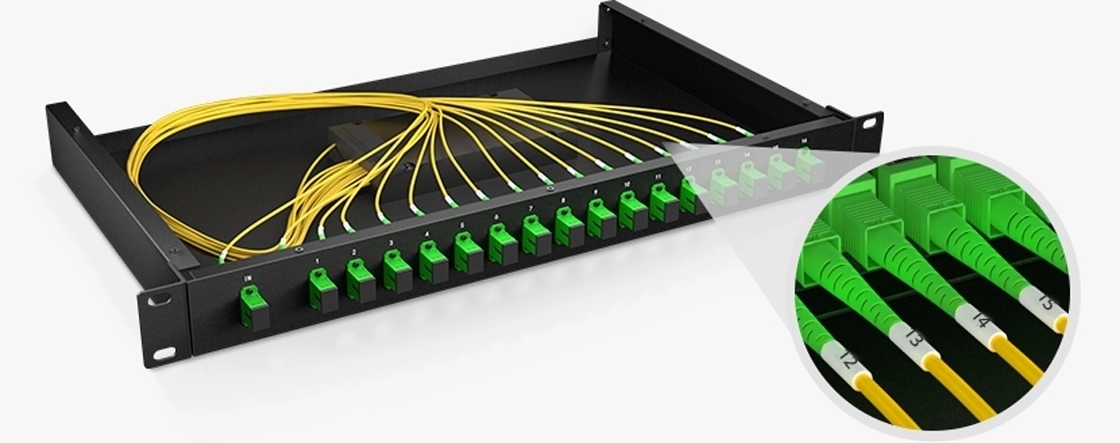

The 1x16 PLC fiber splitter is a high-density optical passive device based on PLC technology. It evenly splits one input signal into sixteen outputs. With a 1U 19" rack-mountable design and SC/APC connectors, it is optimized for singlemode networks in data centers, backbone tranSMissions, and FTTx applications.

Core Features

High-precision PLC chip: 1:16 uniform split with low insertion loss (≤ 1.2dB typical).

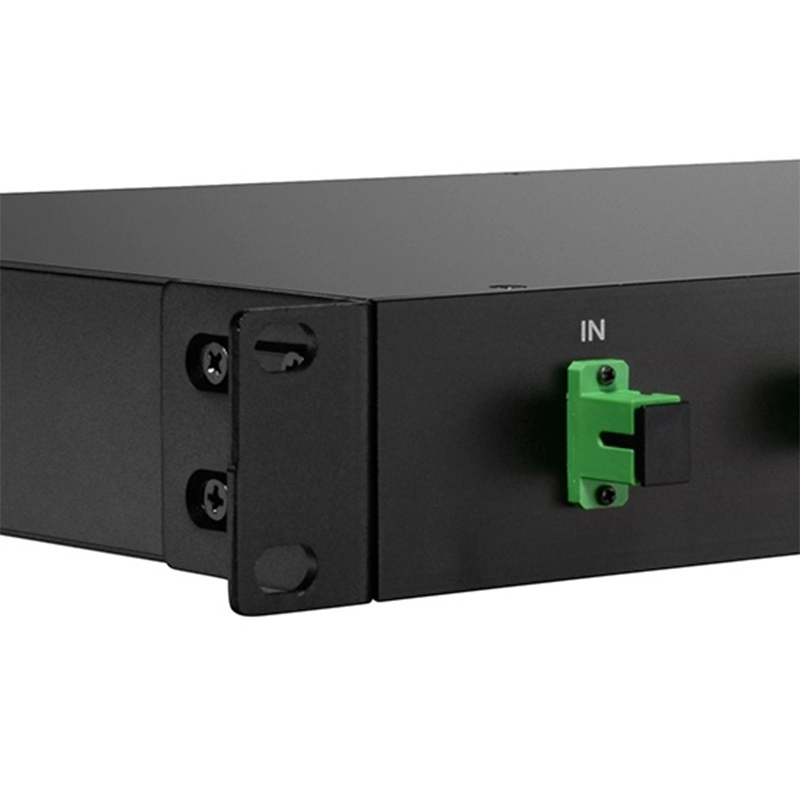

High return loss: SC/APC connectors ensure ≥ 60dB return loss to minimize reflection.
1U Rack-mount: Compact standard rack fit for easy deployment and space efficiency.
Hot-swappable: Modular design allows plug-and-play operation and maintenance.
SC/APC connector: Ceramic ferrules offer >1000 mating cycles with low insertion loss.
Singlemode fiber ready: Supports 1310/1550nm long-distance transmissions.
Wide temperature support: Operates from -40°C to 85°C, 5% to 95% RH.

Application Scenarios

Hyperscale Data Centers: High-density cabling for large-scale network expansions.
Backbone/Long-haul Networks: Cascading topology for wide-area optical deployments.
FTTH: Efficient end-user optical signal branching.
CATV: Wide-area signal distribution to multiple nodes.

Advantages Summary

Efficient splitting: Consistent and balanced 16-way output.
Scalable: Supports network growth via standard rack integration.
Cost-effective: Minimizes welding, labor, and time costs.

Compliance

Telcordia GR-1221-CORE
IEC 61754-20
RoHS Compliant
