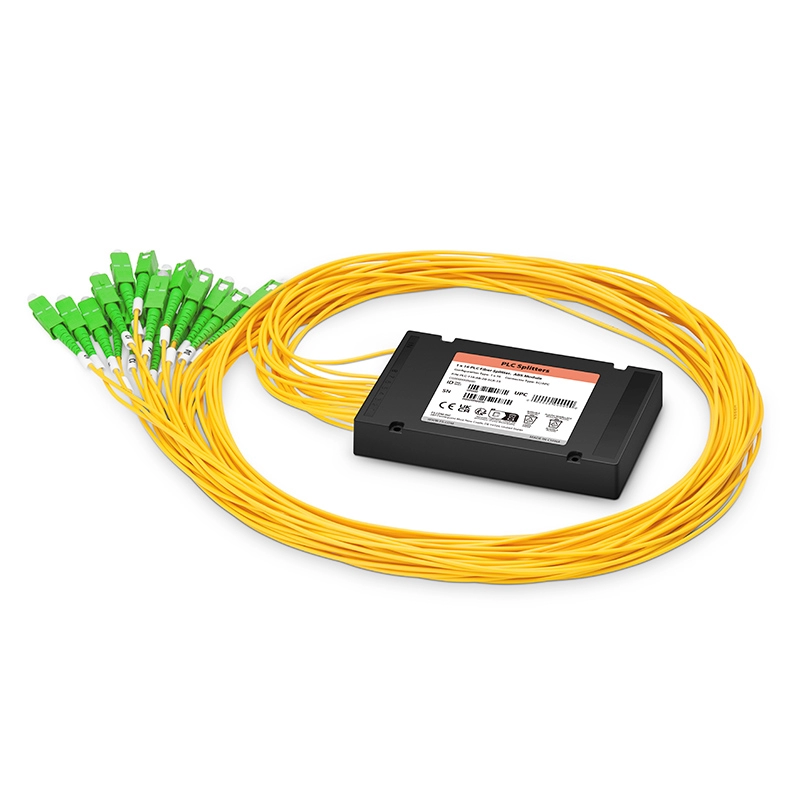

1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitter

Product Overview

1x16 PLC Fiber Splitter in ABS Enclosure, SC/APC Pigtails - Technical SpecificationsSpecificationsPackage StyleABS ModuleConfiguration Type1x16Fiber GradeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInsertion Loss 13.8dBReturn Loss 55dBLoss Uniformity 1.2dBDirectivity 55dBPol

Product Model：1x16 PLC ABS Fiber Splitter

Update Time：2025-05-23

Fiber Type：SM

Fiber coreSimplex,duplex

Manufacturer Type：

Fiber Core Count：2-288 Cores

Outer Jacket：

Standard：

Port Type：Simplex,duplex

Polishing Type：

Adapter Type：SC,LC,FC,ST,E2000

Splitter Type：Insert Type/Box type/Mini PLC splitter

Connector Type：LC/SC/ST/FC APC/UPC

Inquiry Now

1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitterDetailed Introduction

Online Message

1x16 PLC fiber splitter in ABS Enclosure, SC/APC Pigtails - Technical Specifications

Specifications

Package Style	ABS Module	Configuration Type	1x16
Fiber Grade	G.657A1	Fiber Mode	Singlemode
Connector Type	SC/APC	Split Ratio	Symmetrical
Insertion Loss	≤ 13.8dB	Return Loss	≥ 55dB
Loss Uniformity	≤ 1.2dB	Directivity	≥ 55dB
Polarization Dependent Loss	≤ 0.3dB	Temperature Dependent Loss	≤ 0.5dB
Wavelength Dependent Loss	≤ 0.5dB	Operating Bandwidth	1260~1650nm
Dimensions (HxWxD)	0.71"x4.72"x3.15" (18x120x80mm)	Temperature	Operating -40 to 85°C Storage -40 to 85°C

Product Overview

The 1x16 PLC fiber splitter is a high-efficiency passive optical device based on PLC technology. It evenly divides one optical input into 16 outputs. Featuring a compact ABS enclosure and 2.0mm pigtails with SC/APC connectors, it is ideal for use in FTTH, data centers, and surveillance networks.

Key Features

PLC Splitting Technology: 1:16 uniform split, low insertion loss ≤ 3.5dB max per output.
High Return Loss: SC/APC connectors with ≥ 60dB return loss to reduce back reflection.

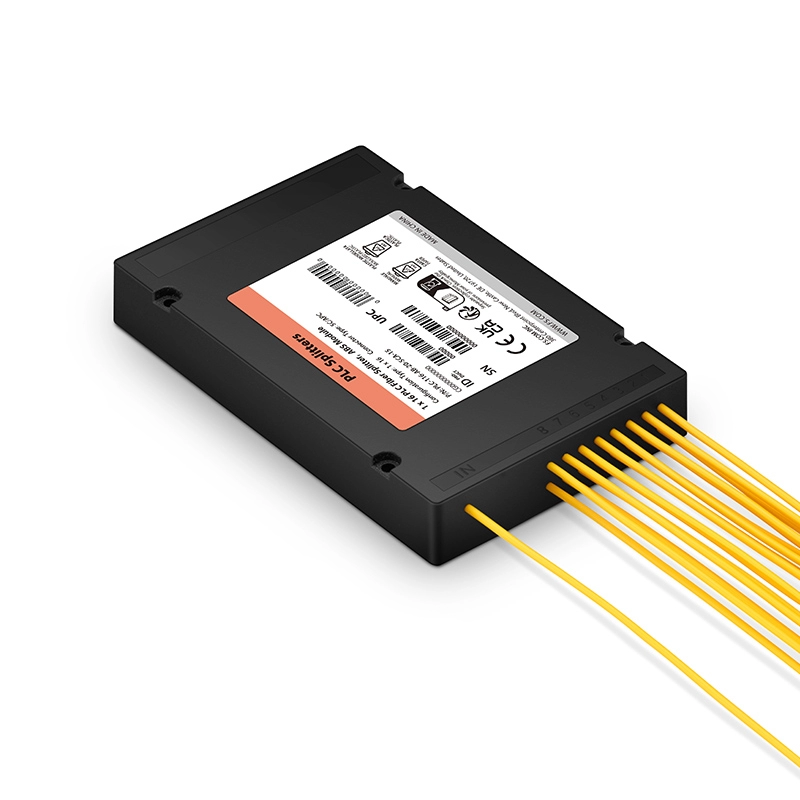

ABS Enclosure: Compact and IP65-rated for dust and moisture resistance.
Wall or Rack Mountable: Pre-drilled holes for flexible installation.
2.0mm Ultra-Slim Pigtails: Bend-insensitive G.657A2 fiber for tight-space routing.

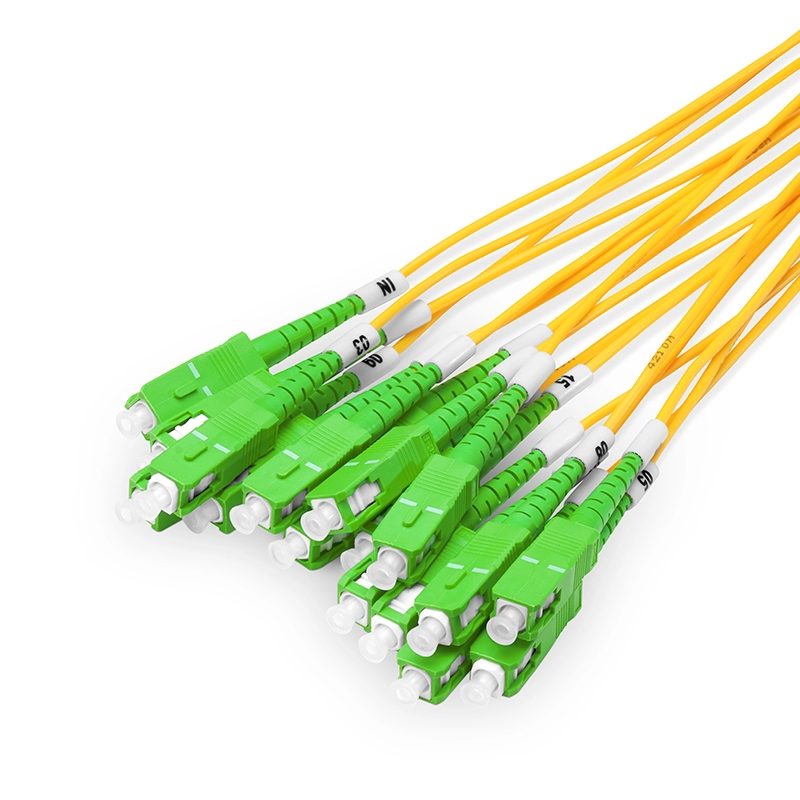

SC/APC Interface: Durable green-coded angled connectors.
Singlemode Compatibility: Supports 1260–1650nm, optimized for 1310/1550nm.

Typical Applications

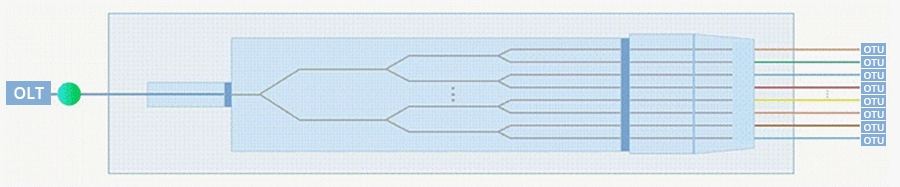

FTTH/FTTx Networks: Branch from one OLT port to 16 subscribers.
Data Centers: Efficient signal splitting in dense racks.
Surveillance Systems: Distribute feeds to multiple cameras.
PON Deployments: Extend signals to multiple ONUs in GPON/EPON.

Competitive Advantages

High-Density Output: 16-way split reduces cascading complexity.
Cost-Effective: PLC chip reduces output cost versus fused biconic solutions.
Reliable Design: ABS case and bend-tolerant fiber ensure stable performance.

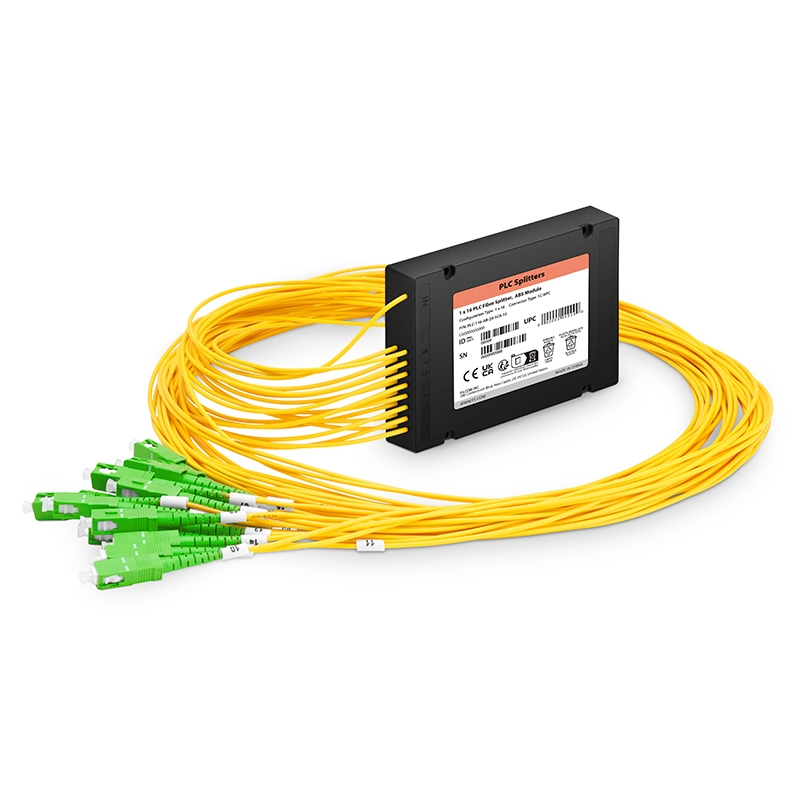

1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitter(pic1)

1x16 PLC Fiber Splitter in ABS Enclosure, Singlemode 2.0mm SC/APC Pigtail Module，optical wire splitter(pic2)
