  • 1x4 PLC Fiber Optic Splitter

  • 1x4 PLC Fiber Optic Splitter

1x4 PLC Fiber Optic Splitter , LGX Cassette Module, SC/APC Connectors, Singlemode Fiber,optical cable splitter

1X4 PLC Fiber Optic Splitter, LGX Cassette Module, optical cable splitter ,Product Details and FeaturesSpecificationsPackage StyleLGX BoxConfiguration Type1x 4Fiber GradeG.657A1Fiber ModeSinglemodeConnector TypeSC/APCSplit RatioSymmetricalInsertion Loss 7.3dBReturn Loss 55dBLoss Uniformity 0.6dBDire

:1x4 PLC Fiber Optic Splitter
:2025-04-25
:SM
:2-288 Cores
:Simplex,duplex
:SC,LC,FC,ST,E2000
:Insert Type/Box type/Mini PLC splitter
:LC/SC/ST/FC APC/UPC

1x4 PLC Fiber Optic Splitter , LGX Cassette Module, SC/APC Connectors, Singlemode Fiber,optical cable splitter

ST-STyle: none; margin: 14px 0px 8px; scrollbar-width: none; color: rgb(5, 7, 59); font-size: 20px; border: none; line-height: 1.7; text-wrap-mode: wrap; background-color: rgb(253, 253, 254);">1X4 PLC fiber optic Splitter, LGX Cassette Module, optical cable splitter ,Product Details and Features

Specifications
Package Style
LGX Box
Configuration Type
1x 4
Fiber Grade
G.657A1
Fiber Mode
Singlemode
Connector Type
SC/APC
Split Ratio
Symmetrical
Insertion Loss
≤ 7.3dB
Return Loss
≥ 55dB
Loss Uniformity
≤ 0.6dB
Directivity
≥ 55dB
Polarization Dependent Loss
≤ 0.2dB
Temperature Dependent Loss
≤ 0.5dB
Wavelength Dependent Loss
≤ 0.3dB
Operating Wavelength
1260~1650nm
Dimensions (HxWxD)
1.14"x5.12"x5.00" (29x130x127mm)
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)




overview

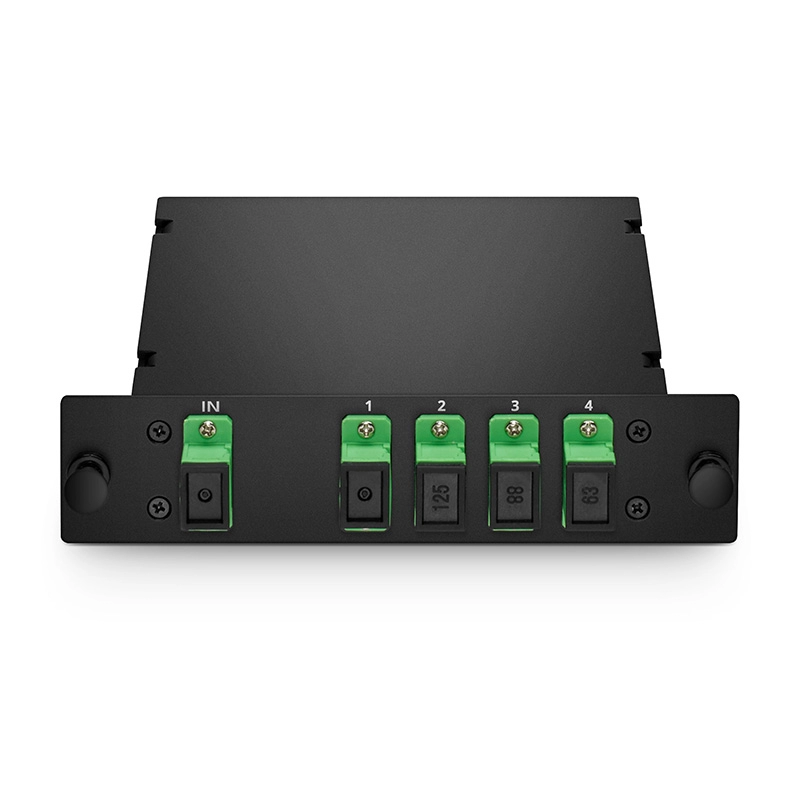

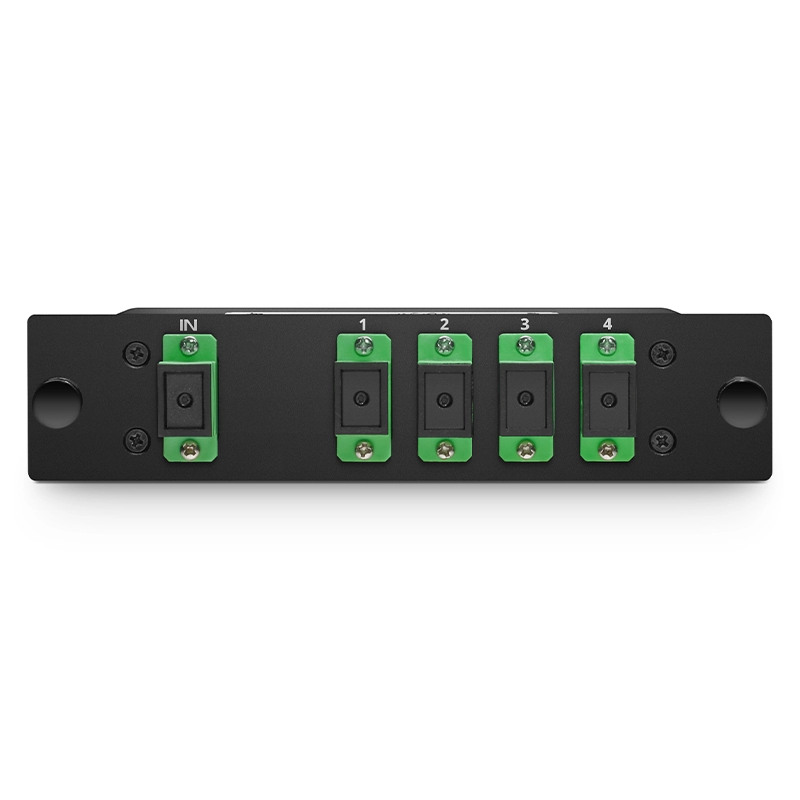

1x4 PLC fiber splitter is an optical passive device based on planar light waveguide (PLC) technology, used to evenly split one input optical signal into four outputs. It adopts standard LGX box design, equipped with SC/APC connector, designed for single-mode fiber networks, suitable for long-distance, high-bandwidth optical transmission scenarios such as data centers, backbone networks and fiber access networks (FTTx).

1x4 PLC Fiber Optic Splitter , LGX Cassette Module, Core Features

  1. PLC spectroscopy technology
    • uniform spectroscopyThe PLC chip manufactured by the semiconductor process realizes 1:4 accurate splitting and four-way output optical power balance.
    • Low insertion loss: Typical value ≤ 0.6dB (maximum value ≤ 1.0dB), ensuring signal transmission efficiency.
    • High return lossAPC (8 ° bevel polished) connectors provide ≥ 60dB return loss, reducing reflection interference.
  2. Standard LGX cartridge design
    • Compact and modular: Compliant with LGX standard sizes, compatible with mainstream fiber optic distribution frames (ODFs) and rack mounts.
    • Hot swap support: Support live plugging and unplugging, which is convenient for network maintenance and upgrade.
  3. SC/APC connector
    • High precision dockingCeramic ferrules ensure low insertion loss and high durability (plug-in life > 1000 times).
    • Environmental safetyAPC end face design reduces fiber end face reflection and enhances system stability.
  4. single mode fiber adaptation
    • long distance transmission: Supports single-mode fiber (SMF), suitable for 1310nm/1550nm wavelengths, with transmission distances up to tens of kilometers.
    • Low dispersionSingle-mode fiber core diameter is small (9μm), reducing mode dispersion and ensuring signal integrity.
  5. Environmental adaptability
    • Wide temperature working range: -40 ° C to 85 ° C, suitable for harsh outdoor or computer room environments.

    • High humidity toleranceRelative humidity 5% to 95% non-condensing, suitable for use in humid areas.





1X4 PLC Fiber Optic Splitter, LGX Cassette Module, Typical Application Scenarios

  1. Fiber to the Home (FTTH)
    For the beam splitter end, the home fiber optic signal is distributed to a plurality of user end points.

  2. data center networking
    Extended inter-rack optical signal shunting to support high-density cabling requirements.

  3. Backbone Network/Metro Network
    Cascading is used to build star or tree networks to improve transmission efficiency.

  4. Cable Television (CATV)
    Distribute optical signals to multiple regional nodes, covering large communities or cities.

Advantage summary

  • high efficiency spectroscopyPLC technology ensures that four signals are evenly distributed without additional losses.

  • Flexible expansionSupports cascading or parallel connection to adapt to complex network topologies.

  • cost optimizationReduce welding requirements and reduce labor and time costs.
