Product Overview
GYTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable description The GYTC8S type optical cable places the 250um optical fiber in a loose sleeve made of high modulus plastic, and the sleeve is filled with waterproof filler. A steel wire is located in the center as a metal reinforcement membe

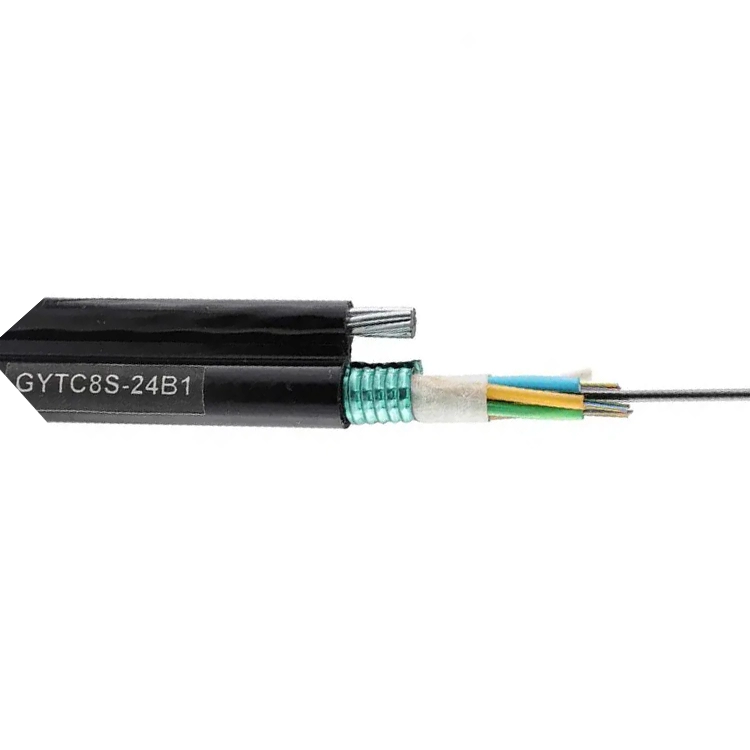

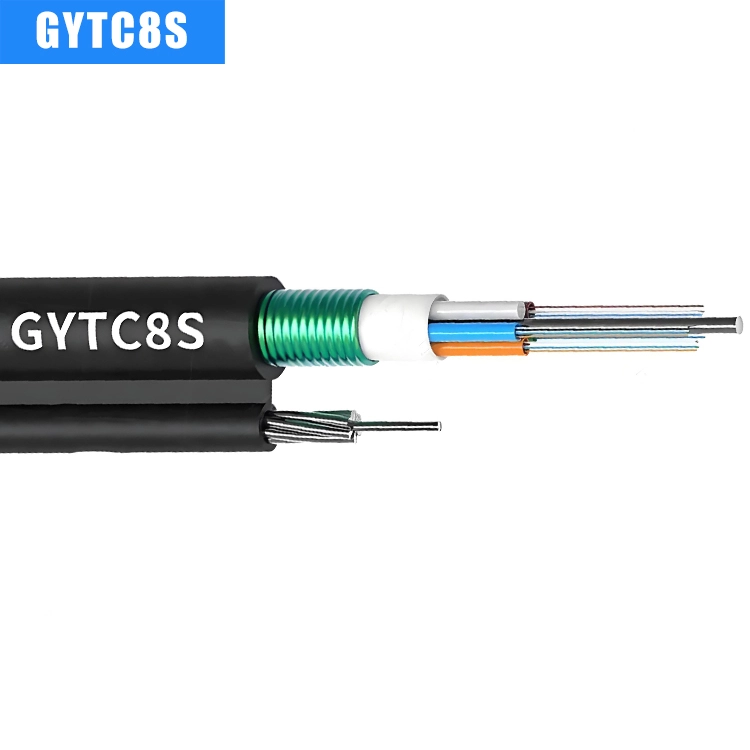

GYTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable description
The GYTC8S type optical cable places the 250um optical fiber in a loose sleeve made of high modulus plastic, and the sleeve is filled with waterproof filler. A steel wire is located in the center as a metal reinforcement member, and the sleeve (filler) is twisted around the reinforcement member to form a compact round optical cable core. The gap between the sleeves is filled with waterproof filler. The outer side is covered with a plastic-coated steel strip (PSP) lengthwise. This part of the optical cable is supported by a stranded wire and is covered with a PE sheath with a figure-8 structure.
Features of GYTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable
Good mechanical and temperature properties
The stranded wire has high tensile strength, meeting self-supporting requirements and reducing installation costs
Special casing fillers ensure critical protection for optical fibers
Good extrusion resistance and flexibility
PSP enhanced moisture resistance
Steel wire as a central reinforcing member
GYTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable Application:
Air.
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| Attenuation (+20℃) | ≤3.0 dB/km @850nm | ≤3.0 dB/km @850nm | ||
| ≤1.0 dB/km @1300nm | ≤1.0 dB/km @1300nm | |||
| ≤0.36 dB/km @1310nm | ≤0.40 dB/km @1310nm | |||
| ≤0.22 dB/km @1550nm | ≤0.23 dB/km @1550nm | |||
| Bandwidth (Class A) | ≥500 MHz·km @850nm | ≥200 MHz·km @850nm | ||
| ≥1000 MHz·km @1300nm | ≥600 MHz·km @1300nm | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | ||
| Storage/Operating temperature | -40℃ ~ +70℃ | |||
Technical Parameters
| Model | Fiber Count | Tubes | Outer Diameter (mm) | Weight (kg/km) | Tensile Strength Long /Short term N | Crush Resistance N/100mm | Bending RadiusStatic/ Dynamicmm |
| GYTC8S-2~6F | 2~6 | 1 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-8~12F | 8~12 | 2 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-14~18F | 14~18 | 3 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-20~24F | 20~24 | 4 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8S-26~30F | 26~30 | 5 | 9.2*18 | 215 | 600/1500 | 300/1000 | 10D/20D |
