Product Overview
Product description of GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber CableGYXTC-8Y type optical cable, the center of the optical cable is made of high modulus plastic loose tube, the optical cable core is composed of 2-24 loose tubes, the support part of the optical cable is composed of

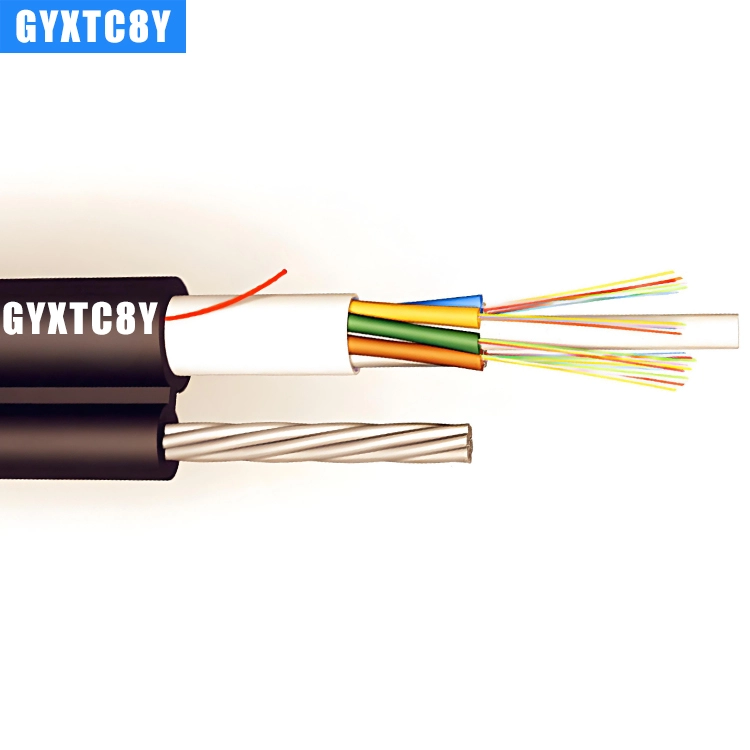

Product description of GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable
GYXTC-8Y type optical cable, the center of the optical cable is made of high modulus plastic loose tube, the optical cable core is composed of 2-24 loose tubes, the support part of the optical cable is composed of multiple strands of stranded wire, and the support part is made of polyethylene (PE) sheath to form an 8-shaped structure. The loose tube has high strength and is resistant to hydrolysis. GYXTC8Y is an ideal self-supporting outdoor optical cable, suitable for overhead installation.
Product Features of GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable
Precise control of fiber length ensures that the cable has good tensile and temperature characteristics
Loose casing with high strength and resistance to hydrolysis
The tube is filled with special compounds, which play a key role in protecting the cable
8-Shape steel wire self-supporting design
Medium density polyethylene sheath, low installation friction
GYXTC-8Y Self-supporting Fig 8 Aerial Uni-tube Drop Fiber Cable application:
FTTX home cable
Indoor and forced ventilation shaft wiring
Outdoor overhead installation
The maximum span is 50 meters and the maximum sag is 1%.
*data is too long, please view it in horizontal mode.
| G.652 | G.657 | ||
|---|---|---|---|
| Attenuation | @1310nm | ≤0.45 dB/km | ≤0.45 dB/km |
| @1550nm | ≤0.30 dB/km | ≤0.30 dB/km | |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |
| Storage/Operating Temperature | -20℃ ~ +60℃ | ||
| Model | Fiber Count | Steel Wire Diameter (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| GYXTC-8Y-2 | 4 | 1.6 | 47 | 400/1000 | 1000/2000 | 10D/20D |
| GYXTC-8Y-6 | 6 | 1.6 | 47 | 400/1000 | 1000/2000 | 10D/20D |
| GYXTC-8Y-8 | 8 | 1.6 | 47 | 400/1000 | 1000/2000 | 10D/20D |
| GYXTC-8Y-12 | 12 | 1.6 | 47 | 400/1000 | 1000/2000 | 10D/20D |
