Product Overview

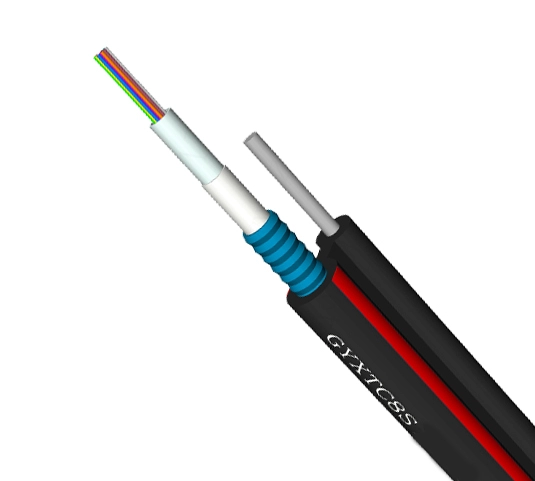

GYXTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable product descriptionGYXTC-8S type optical cable, the center of the optical cable is made of high modulus plastic loose tube, the optical cable core is composed of 2-24 loose tubes, the support part of the optical cable is composed of multiple s
GYXTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable product description
GYXTC-8S type optical cable, the center of the optical cable is made of high modulus plastic loose tube, the optical cable core is composed of 2-24 loose tubes, the support part of the optical cable is composed of multiple strands of stranded wire, and the support part is made of polyethylene (PE) sheath to form an 8-shaped structure. The loose tube has high strength and is resistant to hydrolysis. GYXTC8S is an ideal self-supporting outdoor optical cable, suitable for overhead installation.
Product features of GYXTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable
Precise control of fiber length ensures that the cable has good tensile and temperature characteristics
Loose casing with high strength and resistance to hydrolysis
The tube is filled with special compounds for critical protection of the cable
8-Shape steel wire self-supporting design
Medium density polyethylene sheath, low installation friction
GYXTC8S Self-supporting Fig 8 Aerial Outdoor Fiber Cable Application:
FTTX home cable
Indoor and forced ventilation shaft wiring
Outdoor overhead installation
The maximum span is 50 meters and the maximum sag is 1%.
*Data is too long. View in landscape mode on mobile phone
| G.652 | G.657 | ||
| Attenuation | @1310nm | ≤0.45 dB/km | ≤0.45 dB/km |
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |
| Storage/Operating temperature | -20℃ ~+60℃ | ||
| Model | Connection Structure | Material Shape | Allowable Lateral Pressure |
|---|---|---|---|
| Model: | GYXTC8S | Figure 8 | >1000(N/100mm) |
| Connection Structure: | N/M | ||
| Material Shape: | Figure 8 | ||
| Allowable Lateral Pressure: | >1000(N/100mm) | ||
| Allowable Tensile Strength: | 1000N<10000N | ||
| Core: | Multicore | ||
| Certification: | RoHS, CE, ISO9001 | ||
| Brand: | OEM | ||
| Sheath Material: | PE | ||
| Structure: | Central Loose Tube | ||
| Sheath Color: | Black | ||
| Applications: | Aerial Access Cable, FTTH | ||
| Fiber Counts: | 2-12 Core | ||
| Fiber Type: | SM, MM | ||
| Armor: | Corrugated Steel Tape | ||
| Water-Blocking Material: | Cable Filling Compound | ||
| Transport Package: | Wooden Drum / Plywood Drum | ||
| Specification: | Customized | ||
| Trademark: | yrtfiber | ||
| Origin: | China | ||
| HS Code: | 85447000 | ||
| Production Capacity: | 35000km/Year |
