Product Overview
A total of 4 cable interfaces (2 in and 2 out).Suitable for 10~ 18mm optical cable.A 3x24-core cable tray can be installed, with a maximum capacity of 72 single-core fibers.Mechanical seal. Protection class: IP68.Installation method: overhead, pipeline.The cable fixing plate is combined with the rei
A total of 4 cable interfaces (2 in and 2 out).
Suitable for 10~ 18mm optical cable.
A 3x24-core cable tray can be installed, with a maximum capacity of 72 single-core fibers.
Mechanical seal. Protection class: IP68.
Installation method: overhead, pipeline.

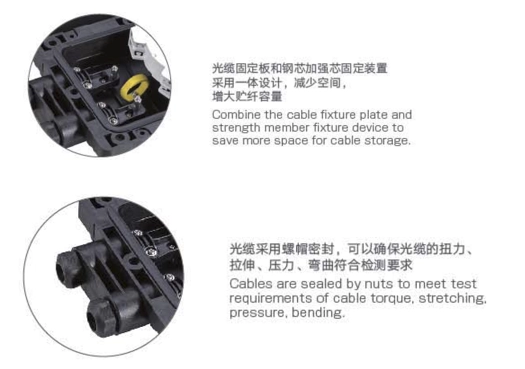

The cable fixing plate is combined with the reinforcing rib fixing device to save more cable storage space.
The optical cable is sealed with nuts to meet the testing requirements of optical cable torque, tensile, pressure, bending, etc
Advantages:
Order information
Parameter:
| Name | Material | Cable Port | Cable Diameter | Fiber Tray | Number of Fiber Trays | Capacity | Protection Level | Product Dimensions (mm) | Weight | Installation Method | Remarks |
| DFSPR-1201 72F | PP + glass fiber | 2*2 | 4 ports: Φ10～18mm | 24F | 3 | 72F | IP68 | 474×200×105mm | 2.3-2.8kg | Overhead installation, pipeline installation | Advance-GPJ09-6812 72F |
