Horizontal Joint Box, Joint Closure DFSPR-1301 96F

Product Overview

A total of 4 cable interfaces (2 in and 2 out). Suitable for 10~ 20mm optical cable. Four 24-core cable trays can be installed, with a maximum capacity of 96 single-core fibers. Mechanical seal. Protection class: IP68. Installation method: overhead, pipeline. Small size, simple structure and easy op

Inquiry Now

Product Description

Online Message DataDownload

Horizontal Joint Box, Joint Closure DFSPR-1301 96F(pic1)

A total of 4 cable interfaces (2 in and 2 out).

Suitable for 10~ 20mm optical cable.

Four 24-core cable trays can be installed, with a maximum capacity of 96 single-core fibers.

Mechanical seal. Protection class: IP68.

Installation method: overhead, pipeline.

Small size, simple structure and easy operation.

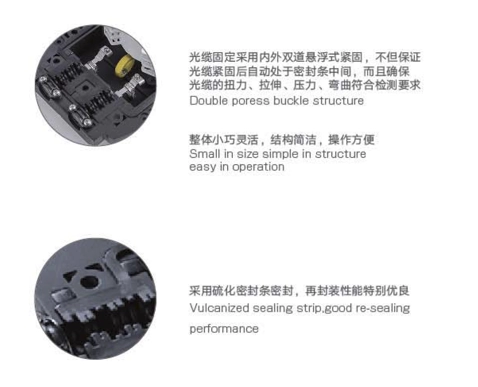

Double buckle fixed cable, to meet the cable torque, tensile, pressure, bending and other testing requirements.

Vulcanized sealing strip makes the interface suitable for 10-20mm optical cable, with good repeated sealing performance

Advantages:

Horizontal Joint Box, Joint Closure DFSPR-1301 96F(pic2)

Order information

Horizontal Joint Box, Joint Closure DFSPR-1301 96F(pic3)

Name	Material	Cable Port	Cable Diameter	Fiber Tray	Number of Fiber Trays	Capacity	Protection Level	Product Dimensions (mm)	Weight	Installation Method	Remarks
DFSPR-1301 96F	PP + glass fiber	2*2	4 ports: Φ10～20mm	24F	4	96 cores	IP68	420×201×128mm	2.2-2.7kg	Overhead installation, pipeline installation	Advance-GPJ09-6807 96F
