Why do 73% of data center failures result from incorrect selection of patch cords

In 2023, a major cloud provider suffered repeated outages, costing over $2 million. After 72 hours of troubleshooting, engineers traced the root cause to multimode OM3 patch cords being mistakenly used for 100G long-distance transmission—excessive signal attenuation triggered continuous optical module retransmission.

The irony? Proper single-mode OS2 patch cords (yellow jacket) were stocked in the same rack but went unused. Similar cases account for 73% of fiber-related failures, with common pitfalls including:

Mixed use of APC/UPC connectors (excessive reflection loss)

A 3.0mm jumper was forcibly inserted into a high-density panel (physical damage to the port)

Replace UPC with PC polished patch cords (the bit error rate soars)

Lesson: A 5-minute selection confirmation can prevent an average of 47 hours of fault repair  (AFOP 2024 Report).

What Is a Fiber Optic Patch Cord?

A fiber optic patch cord (also called a fiber jumper or patch cable) is a short, flexible cable with connectors (such as LC, SC, ST, or FC) on both ends, used to connect optical networking equipment.

Key Features of Patch Cords:

✔ Single-mode (SM) or Multimode (MM) – Determines distance & bandwidth capabilities.
✔ Different connector types (LC, SC, ST, FC) – For compatibility with switches, routers, and transceivers.
✔ Polishing styles (PC, UPC, APC) – Affects signal reflection and loss.
✔ Various lengths & diameters (e.g., 1m, 2m, 3m / 2.0mm, 3.0mm) – For different installation needs.

Common Uses of Fiber Patch Cords:

🔹 Connecting switches, routers, and servers in data centers.
🔹 Linking OLT (Optical Line Terminal) and ONT (Optical Network Terminal) in FTTH/PON networks.
🔹 Testing and troubleshooting fiber optic links.
🔹 Extending connections between patch panels and networking devices.

What's the Difference Between Single-mode and Multimode Fiber Patch Cord?

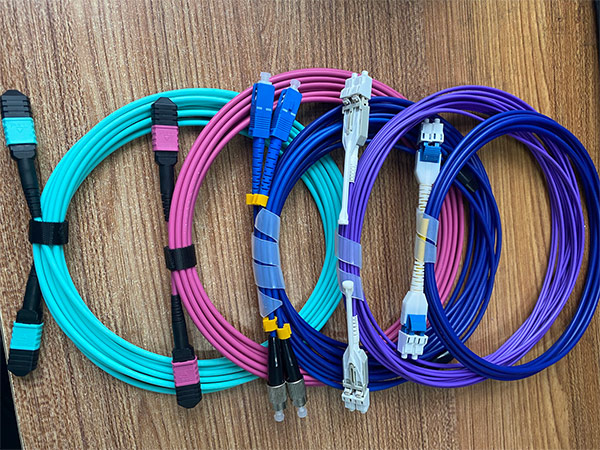

(optical patch cord types Including LC/SC/ST/FC Types and PC/UPC/APC Polishing Styles)

1. Core Differences: Single-mode vs. Multimode

Feature    Single-mode (SM)    Multimode (MM)

Core Diameter 9/125 μm      50/125 μm or 62.5/125 μm

Wavelength      1310nm / 1550nm   850nm / 1310nm

Max Distance  10km–100km+       100m–2km (OM3/OM4: up to 550m @100G)

Bandwidth        100G/400G/800G ready 10G/40G/100G (OM3/OM4/OM5)

Light Source     Laser (higher cost)   LED/VCSEL (lower cost)

Typical Use       Telecom, DCI, 5G fronthaul      LANs, data center ToR links

2. Fiber Patch Cord Types: Connectors & Polishing Styles

A. Common Connector Types

LC (Lucent Connector)

Small form factor, high density (SFP+/QSFP+ compatible).

Subtypes: LC-PC, LC-UPC, LC-APC (see polishing section below).

SC (Subscriber Connector)

Push-pull design, widely used in GPON/CATV.

Subtypes: SC-PC, SC-UPC, SC-APC.

ST (Straight Tip)

Bayonet-style, common in legacy networks.

Typically ST-PC or ST-UPC.

FC (Ferrule Connector)

Threaded coupling, used in high-vibration environments.

Subtypes: FC-PC, FC-UPC, FC-APC.

B. Polishing Styles & Key Specs

Type Return Loss      Color Code        Typical Use Case

PC     ≥40 dB   Blue Low-cost MM applications

UPC  ≥50 dB   Blue Standard SM/MM (e.g., LC-UPC)

APC  ≥60 dB   Green       High-performance SM (e.g., LC-APC)

Notes:

APC (Angled Physical Contact): Green connector, minimizes back reflections (critical for RFoG/PON).

UPC (Ultra Physical Contact): Blue connector, general-purpose SM/MM.

3. How to Choose the Right fiber optic cable patch cord?

Step 1: SM fiber patch cord or Multimode?

Single-mode if:Distance > 500m. Future 400G/800G upgrades planned.

Multimode if:Short-reach (≤100m for 10G, ≤150m for 100G OM5).

Step 2: Select Connector & Polish

LC/UPC: Default choice for most data centers.

LC-APC: FTTH/PON/WDM systems.

SC/UPC: GPON OLT/ONT connections.

FC/PC: Test equipment, military/aerospace.

4. Fiber Patch Patch Cord Industry Trends

Single-mode Dominance: 800G DR8/FR4 modules demand SMF.

Multimode Evolution: OM5 enables 100G-SWDM4 over 150m.

Connector Trends: LC dominates >70% market; MPO/MTP rising for 400G+.

The issue you may have encounter during your order production of optic fiber cable&jumper.

Clarification on Fiber Patch Cord Specifications – APC/UPC Connectors & Cable Diameter

APC vs. UPC Connectors – Compatibility & Solution

Issue: The order specified LC/UPC connectors, but the produced units were LC/APC.

Technical Difference:

UPC (Blue connector): Standard polish, ideal for general applications.

APC (Green connector): Angled polish (8°), designed for high-return-loss environments (e.g., CATV, PON).

Compatibility: APC and UPC connectors are not directly interchangeable due to their different end-face angles. Forcing a connection may cause high insertion loss or physical damage.

Solution:

Remanufacture correct LC/UPC patch cords.

Temporary fix: Use APC-UPC hybrid adapter (may increase loss).

2. 2.0mm vs. 3.0mm Cable Diameter – Usability & Solution

Issue: The order required 2.0mm cables, but 3.0mm cables were produced.

Key Differences:

2.0mm: More flexible, suitable for high-density cabling (e.g., data centers).

3.0mm: Thicker and more durable, but less suitable for tight spaces.

Compatibility: While both can connect if the connectors match, the 3.0mm cables may not fit in high-density panels or narrow pathways.

Solution:

3.0mm works if space allows (check high-density panels).

Replace with 2.0mm if mandatory for tight spaces.

Conclusion

Select fiber patch cords based on:

1.Distance (SM (single mode fiber optic patch cord) for long-haul, MM (multimode patch cord)  for short).

2.Connector compatibility (LC/SC/ST/FC).

3.Polish type (APC for PON/WDM, UPC for general use).

For customized solutions (e.g., armored LC-APC), consult fiber experts.
